FELCOM 11

G2-4

4. System status monitor

Terminal: IB-581 The system Status Monitor is always displayed.

Ternimal: IC-511 Press [F8], [1] or [Enter] key to display the System Status

Monitor.

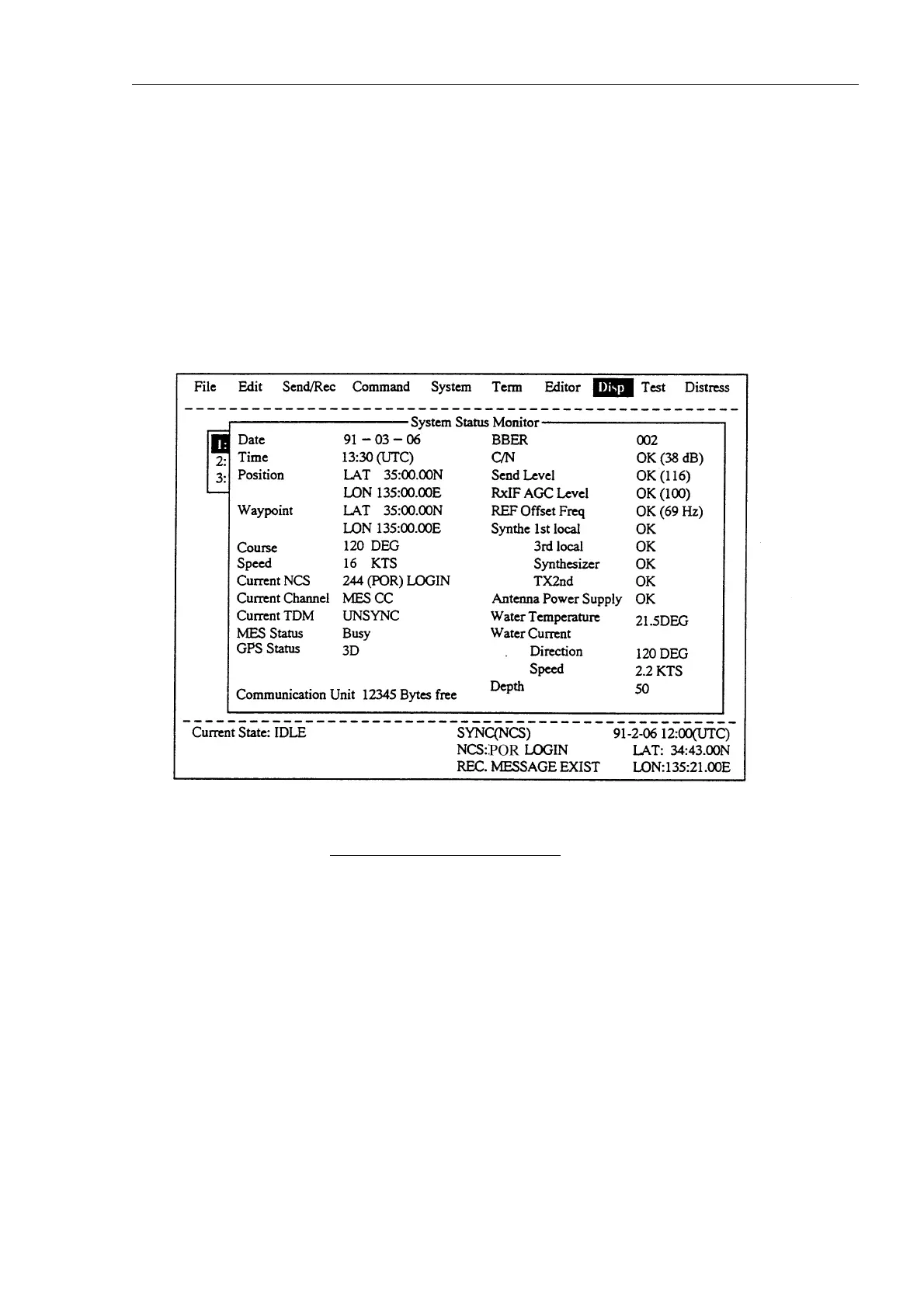

System Status Monitor Display
