FELCOM 12

G3-6

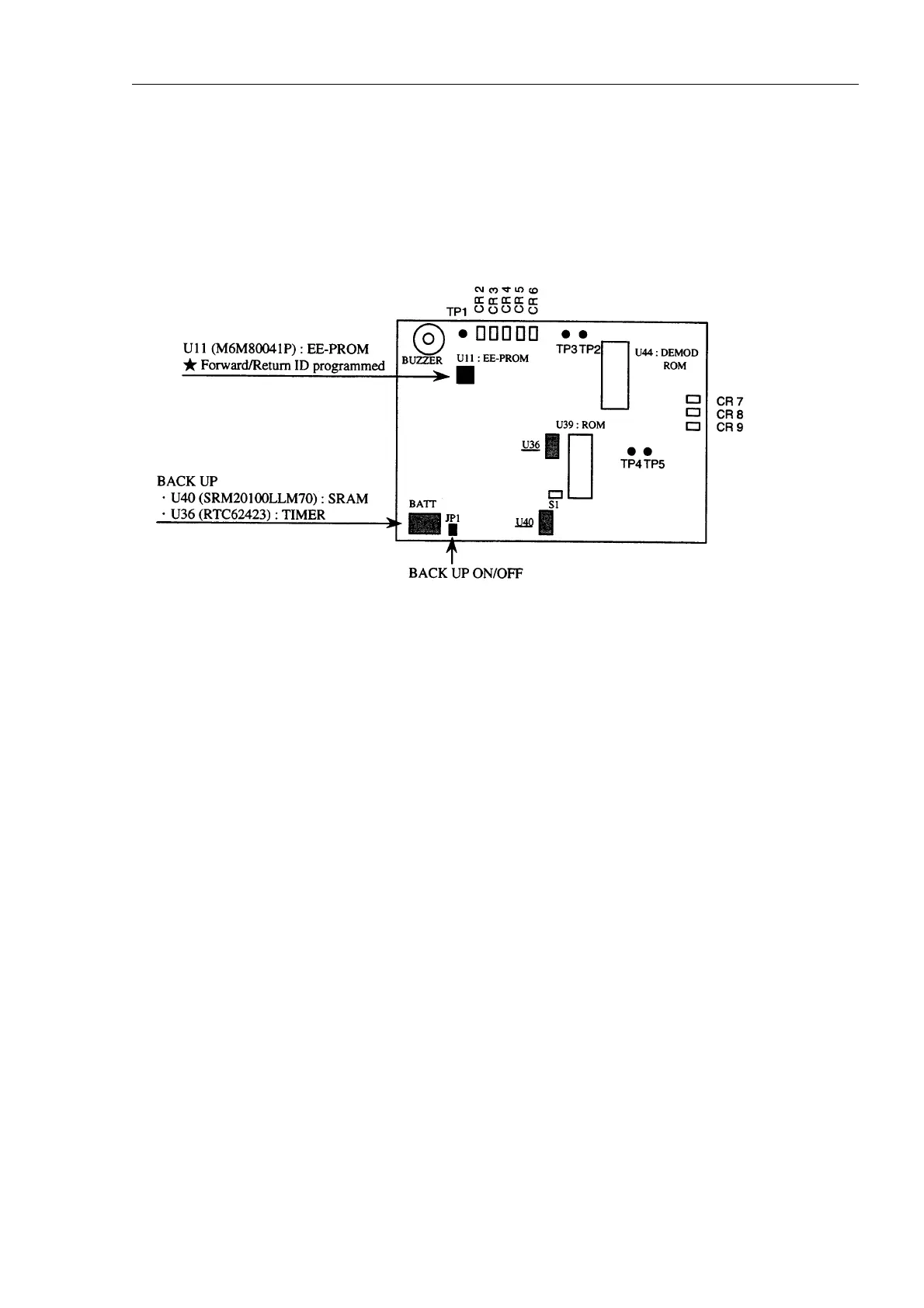

5. MES ID

MES ID, Forward ID and Return ID is factory programmed. When replacing the CPU

Board (16P0148), remove the EEROM from the old board and put it on the new board.
