Furuno FELCOM 500

 9.4 Antenna Unit: FB-1500
9-13
9.4 Antenna Unit: FB-1500

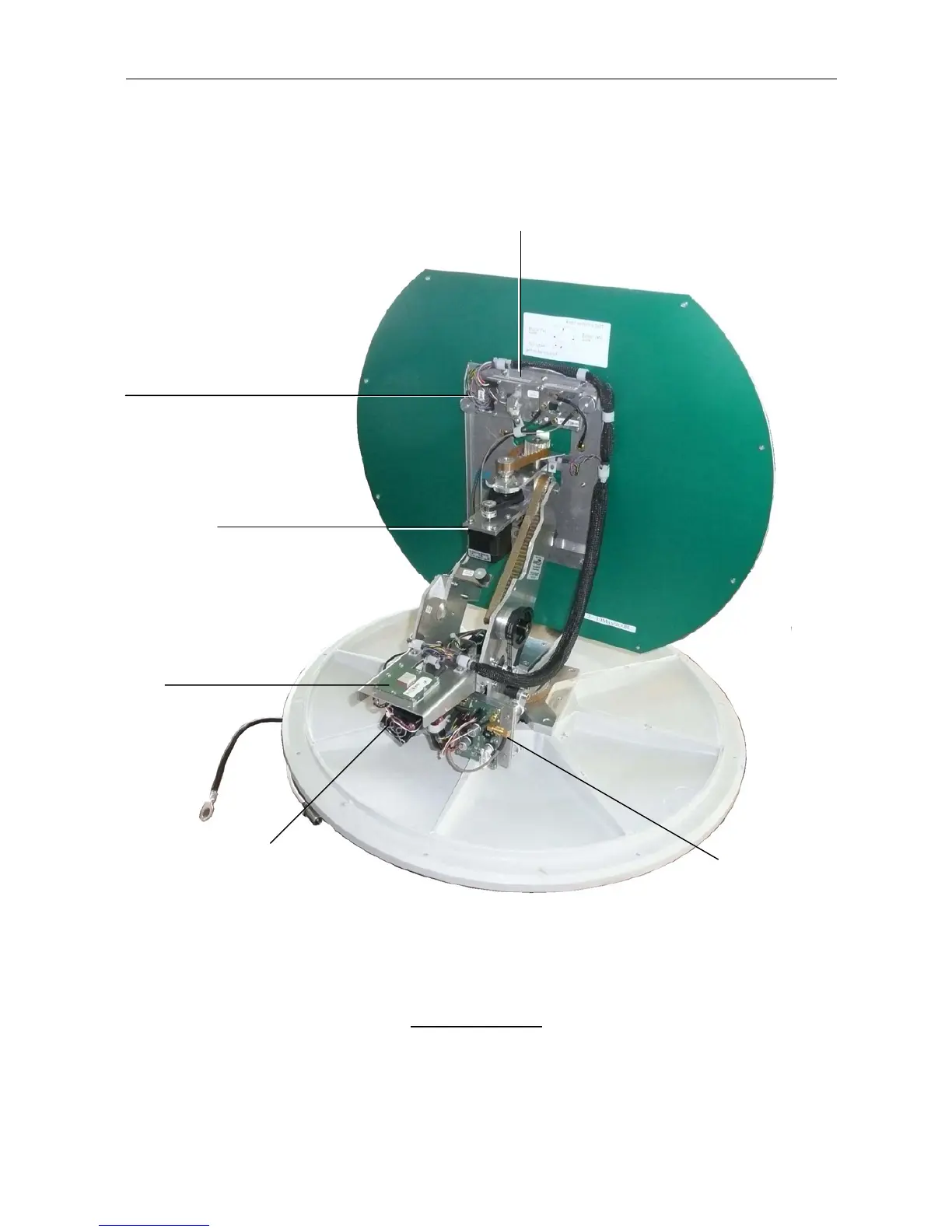

Fig. 9.4.1 Antenna
Note) Left: ATB Module
Right : LNA Module
GPS Module
ATB+LNA assy (Front end Module)
ATB (Antenna Tracking Board) &
LNA (Low Noise Amplifier)
Clinometer: Inclination sensor
IF Module
Cross EL motor
HPA Module
