9.5 Antenna Unit: FB-1250
9-31

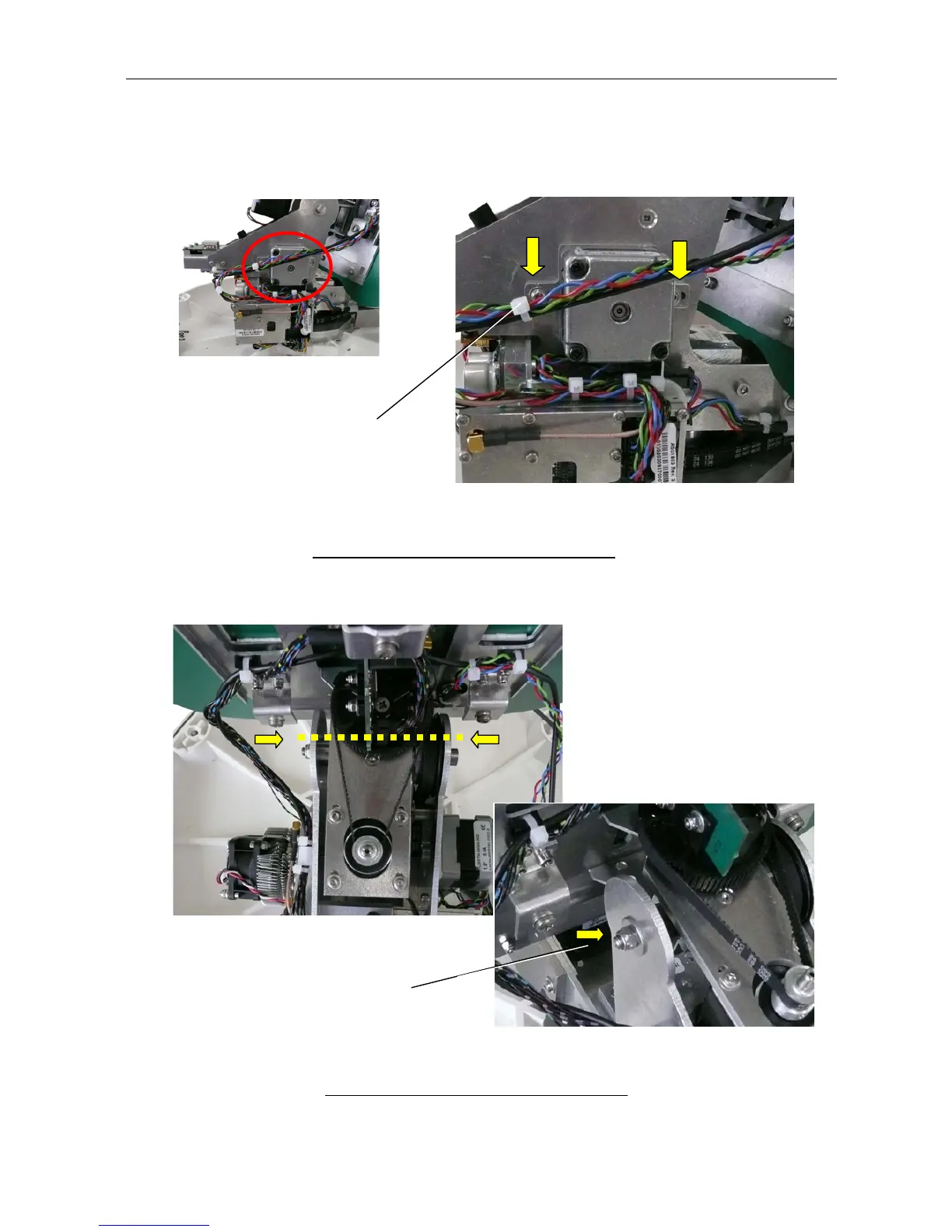

Fig. 9.5.19 Adjusting EL motor belt tension
EL motor belt tension
adjusting screw x 2
Fig. 9.5.18 Adjusting EL motor belt tension
When removing the EL
belt, remove the shaft
of the EL axis
