Furuno FELCOM 500 Service Manual

MODEM board
4/4
Removing C510 on MODEM Board
Read the following notes before removing C510 on MODEM board in the
communication unit of FELCOM 250/500.
1) Turn off the unit.
2) Use a fine, clean soldering tip. (The soldering tip must be clean and
free from contamination.)
3) Before removing the capacitor, add a bit of solder if needed.
4) Cover the parts around the capacitor with a cloth to prevent a solder
bridge.

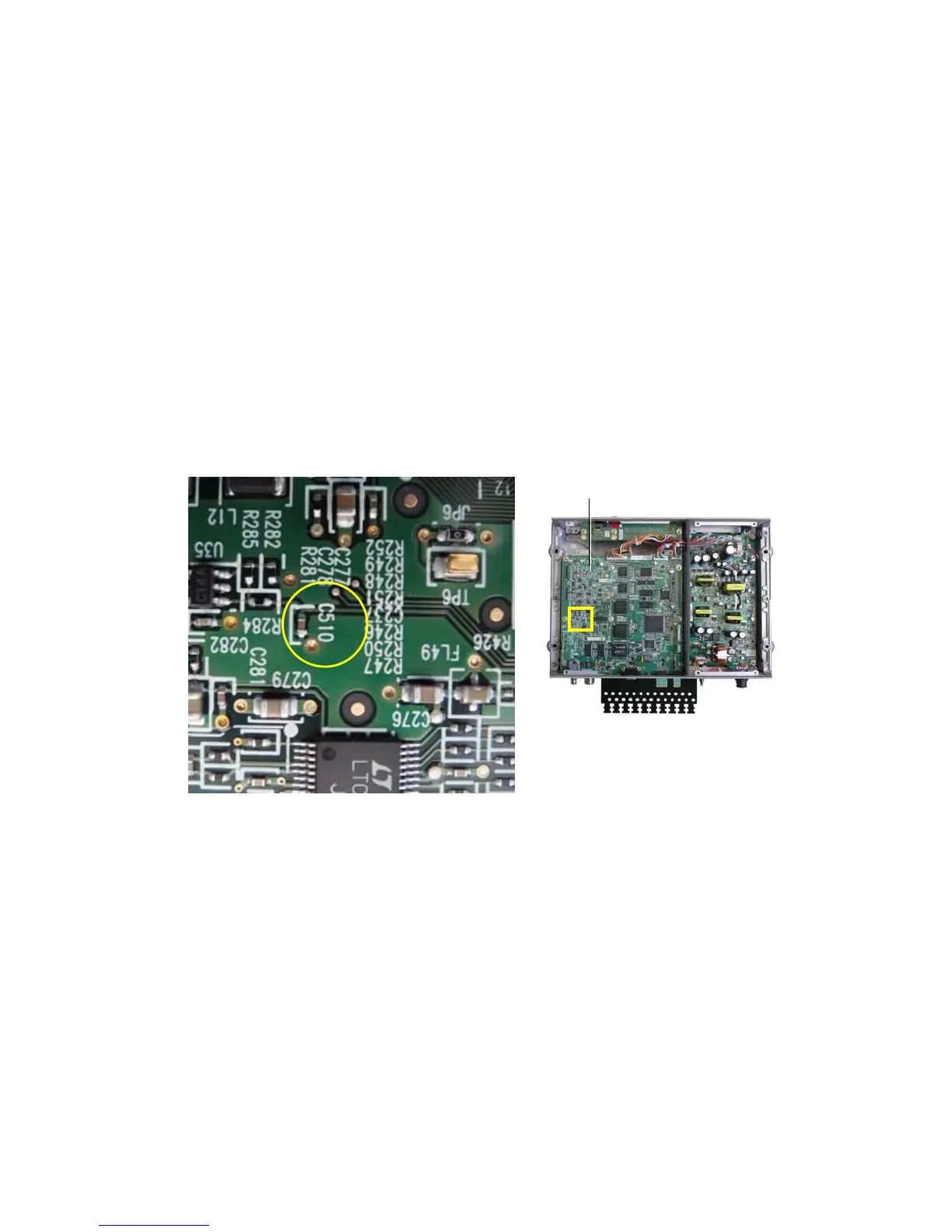

Fig.4 C510 on MODEM board in communication unit

Furuno FELCOM 500 Specifications

General

Brand	Furuno
Model	FELCOM 500
Category	Marine GPS System
Language	English
