Furuno GP-80 - DATA2 Port; NMEA 0183 Input

5. INITIAL SETTINGS
19
"DATA2" Port
! IEC 61162-1/NMEA 0183 Ver. 1.5/Ver. 2.0 Output

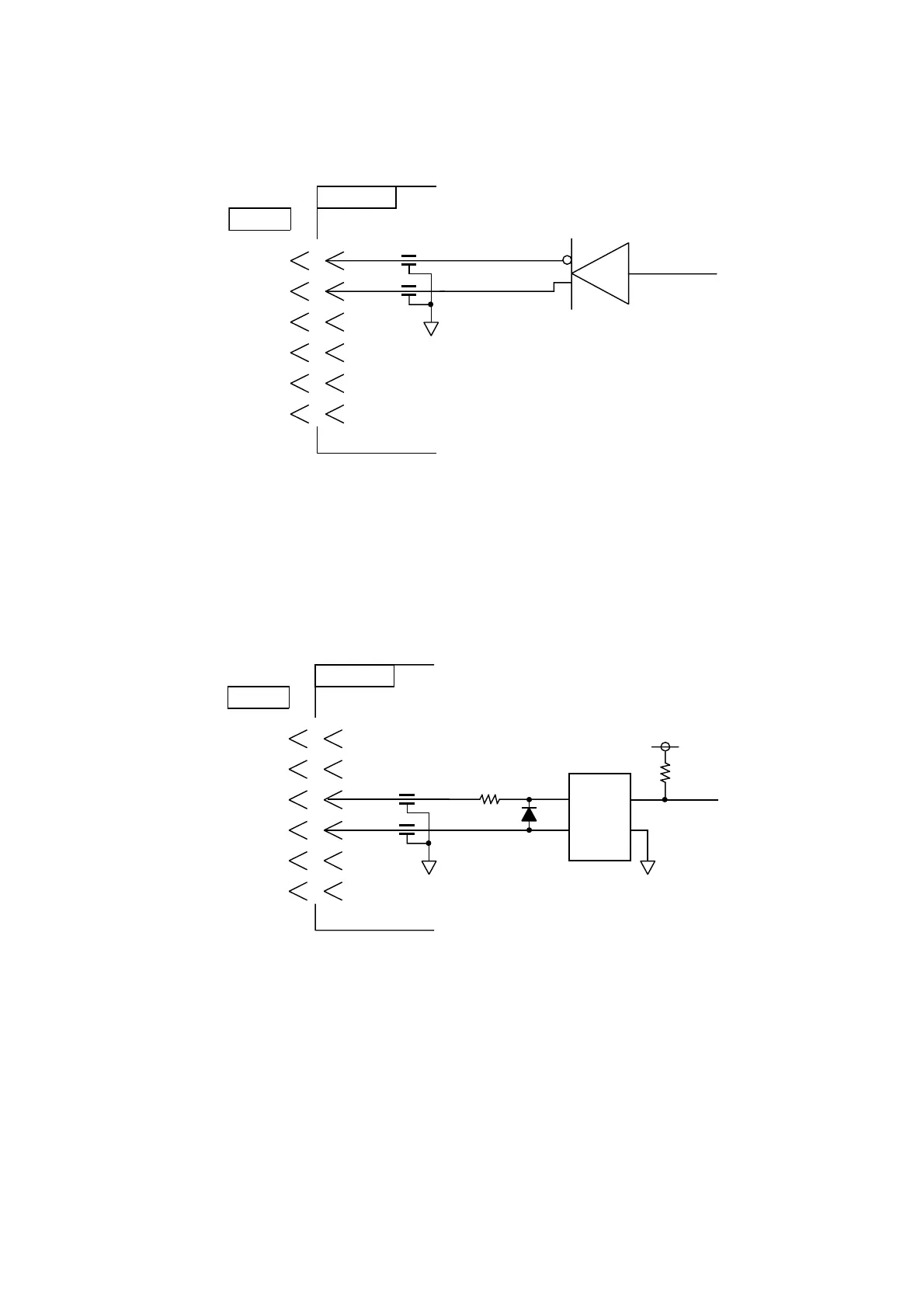

• Output Schematic Diagram (Talker)
1
J7
2
3
4
5
6
DATA2
TD-A
TD-B
FL10
20P8147
MJ-A6SRMD
FL9
16
17
18
U35
SN75ALS172
• Output Drive Capability
Max. 10mA
• IEC 61162-1 output is subject to the standard IEC 61162-1 First edition 1995-11.
• Output Sentence is described on page 8 and 9. Each sentence is output at the interval
entered.
! NMEA 0183 Input
• Input Schematic Diagram (Listener)
1
3
4
5
1
J7
2
3
4
5
6
DATA2
FL7
20P8147
MJ-A6SRMD
FL8
CR14
1SS226
PC-400
U28
+5V
R63
2.2K
RD-H
RD-C
R76
470
• Load Requirements
Isolation: opto coupler
Input Impedance: 470
Ω
Max. Voltage:
± 15V
Threshold: 3mA (In case of FURUNO device talker connection)
• Input Sentence is described on page 8 and 9.
