Furuno NAVpilot-711C Installation Manual

2-1
2. WIRING

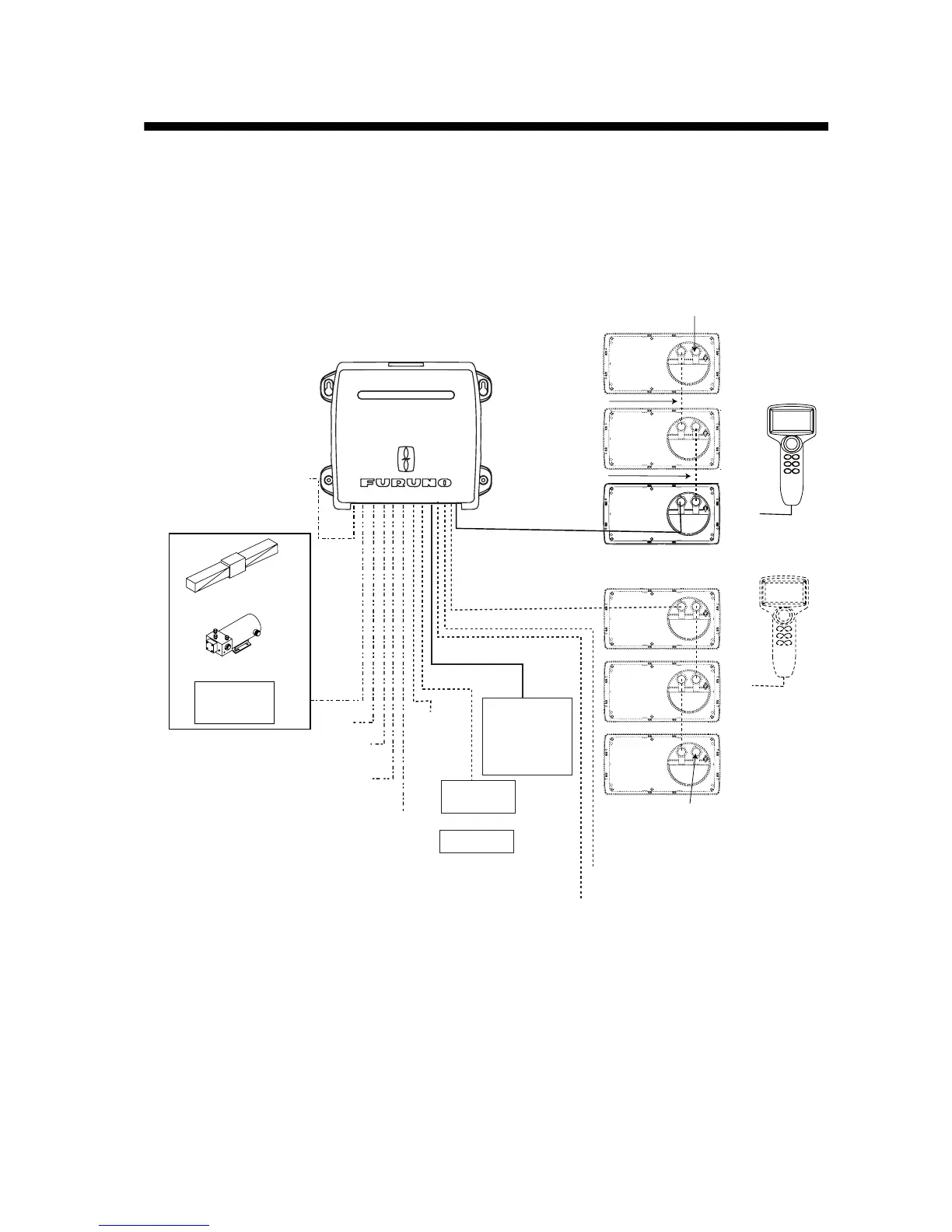

2.1 General Wiring
All units are connected to the Processor Unit. Separate the cables as far as possible from
the cables that transmit radio frequency or pulsed signals. At least one meter separation
is recommended.
Reversible pump
Solenoid valve
Hydraulic
linear drive
Power supply
12-24 VDC
Terminator BD-07AFFM-LR7001*
1
(supplied)
CONTROL UNIT
FAP-7001/7011/7011C
PROCESSOR UNIT
FAP-7002
RUDDER
REFERENCE
UNIT
FAP-6112
*
2,
*
3
Remote
Controller
or
Distributor
Remote
Controller
or
Distributor
PC
NMEA0183 PORT1 (Nav equip.)
NMEA0183 PORT2
(IF-700IPS or Nav equip.)
CANbus (FI-50, PG-700, etc.)
*
1
: Attach the terminator to the empty
connector of the last control unit in the series.
*
2
: Not required for Fantum Feedback
TM
.
*
3
: Not required for the IPS drive.
or
or
CONTROL
UNIT
FAP-7021
BD-07AF-07AF-LR-100
BD-07AF-07AF-LR-100
Terminator
BD-07AFFM-LR7001*
1
(supplied)
BD-07AFFM-LR-150
Contact signal out
Contact signal in
Ship Steering System*
3
