2. WIRING
2-3
2.2.2 How to fasten cables to the cable clamps
Fasten the cables to the processor unit as shown below. There is no specified order to
fasten the cables.
1. Remove the outside cover:
1) Hold the right and left sides of the cover.
2) Pull the cover outward and lift to remove.

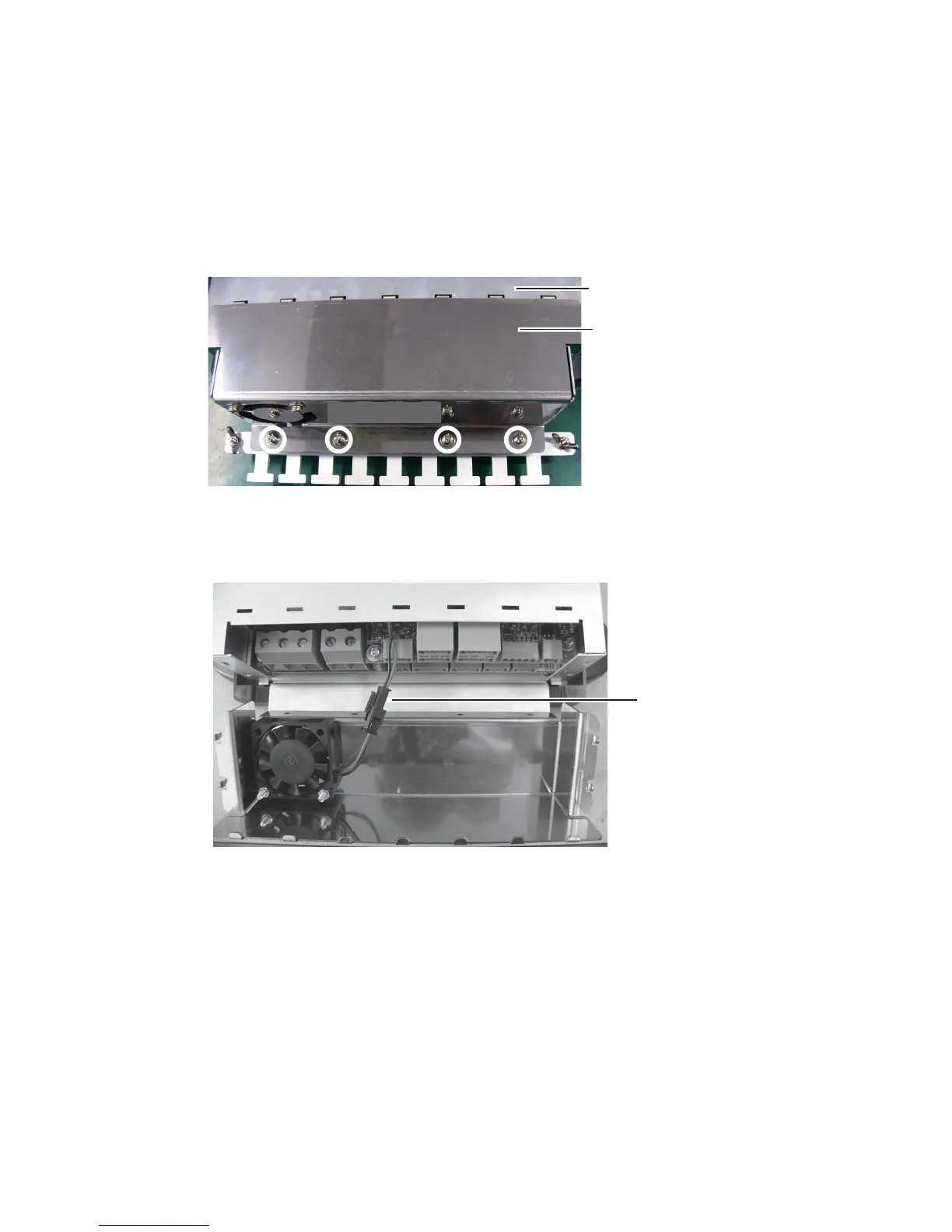

2. Remove the four screws marked with circles in the figure shown below.
3. Separate the cable clamp/fan assy from the shield cover as shown in the figure below.
Open the assembly carefully to prevent damage to the cable connected to the fan.
4. Disconnect the fan connector.
5. Twist cable cores then put the cores into their correct connector blocks. (See the next
page for how to put wires into a connector block.)
6. For the NMEA cable, wind vinyl tape around the cable cores.
Cable clamp/fan assy.
Shield cover
Disconnect
this connector.
To Next Page
