Furuno NAVpilot-711C Installation Manual

ii

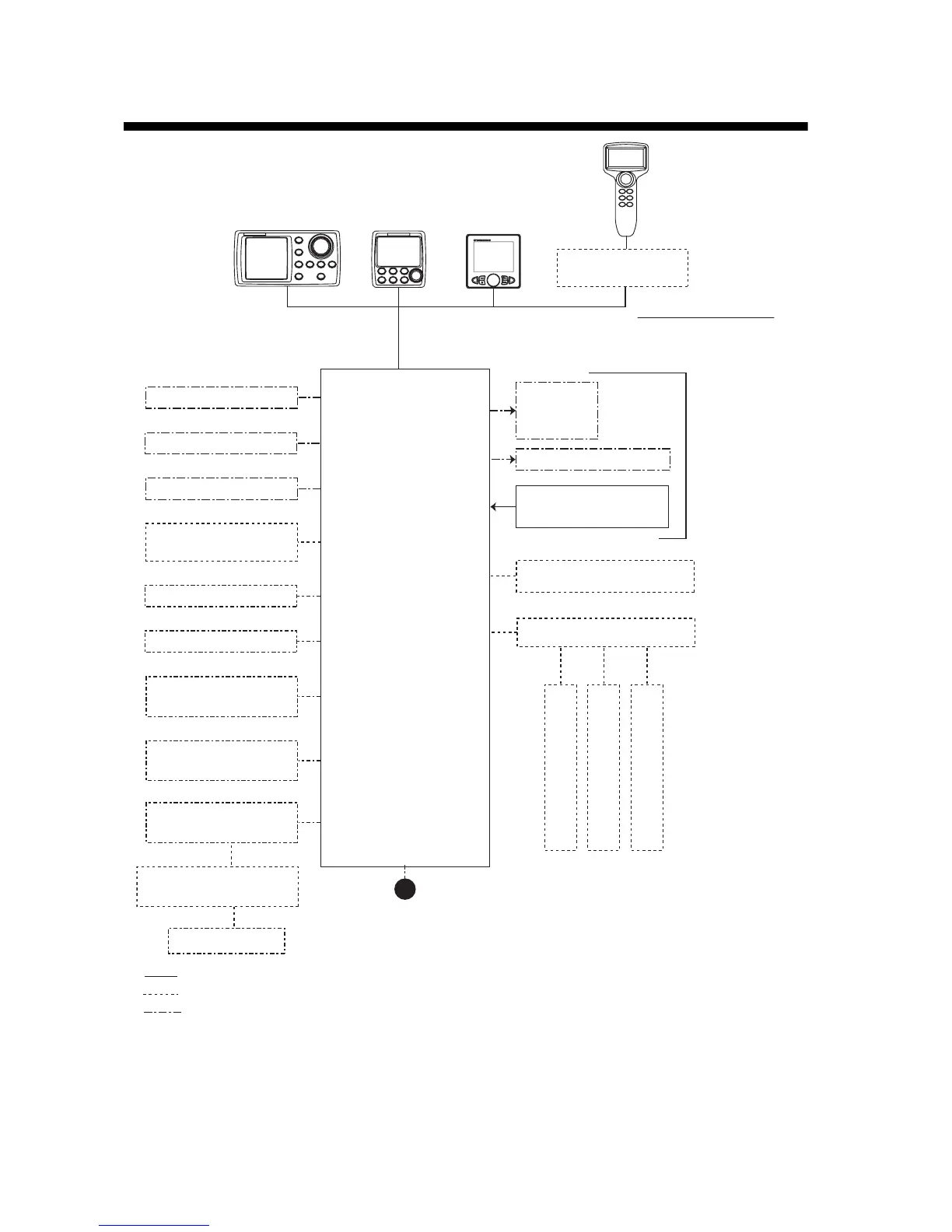

SYSTEM CONFIGURATION
12-24 VDC
PROCESSOR UNIT
FAP-7002
CONTROL UNIT QTY
FAP-7001/7011: MAX. 6*
1
FAP-7021: MAX. 2
RUDDER REFERENCE UNIT
FAP-6112
*
2
DISTRIBUTOR FAP-6800
SOLENOID
VALVE
PC (for serviceman)
EXTERNAL BUZZER
NAV EQUIPMENT
(NMEA 0183)
HYDRAULIC LINEAR DRIVE
HEADING SENSOR
PG-700
SHIP'S
STEERING
SYSTEM*
3
REMOTE CONTROLLER:
DIAL TYPE: FAP-5551, FAP-5552
BUTTON TYPE: FAP-6211, FAP-6212
LEVER TYPE: FAP-6221, FAP-6222
DODGE TYPE: FAP-6231, FAP-6232
*
1
: Any combination of control units is available. For FAP-7021, connect at the end of series.
*
2
: Not required for Fantum Feedback
TM
.
*
3
: Not required for the VOLVO IPS drive equipped vessel.
*
4
: For the EVC system available with the NAVpilot, contact your dealer.
REMOTE CONTROLLER
REMOTE CONTROLLER REMOTE CONTROLLER REMOTE CONTROLLER
: STANDARD
: OPTION
: USER SUPPLY
EVENT SWITCH
CANBUS EQUIPMENT
(NMEA 2000)
JUNCTION BOX
FAP-7822
Select one
CONTROL UNIT
FAP-7001
CONTROL UNIT
FAP-7011
CONTACT SIGNAL IN
CONTACT SIGNAL OUT
IPS INTERFACE UNIT
IF-700IPS
VOLVO IPS GATEWAY
AUTOPILOT GATEWAY
EVC System*
4
CONTROL UNIT
FAP-7011C
