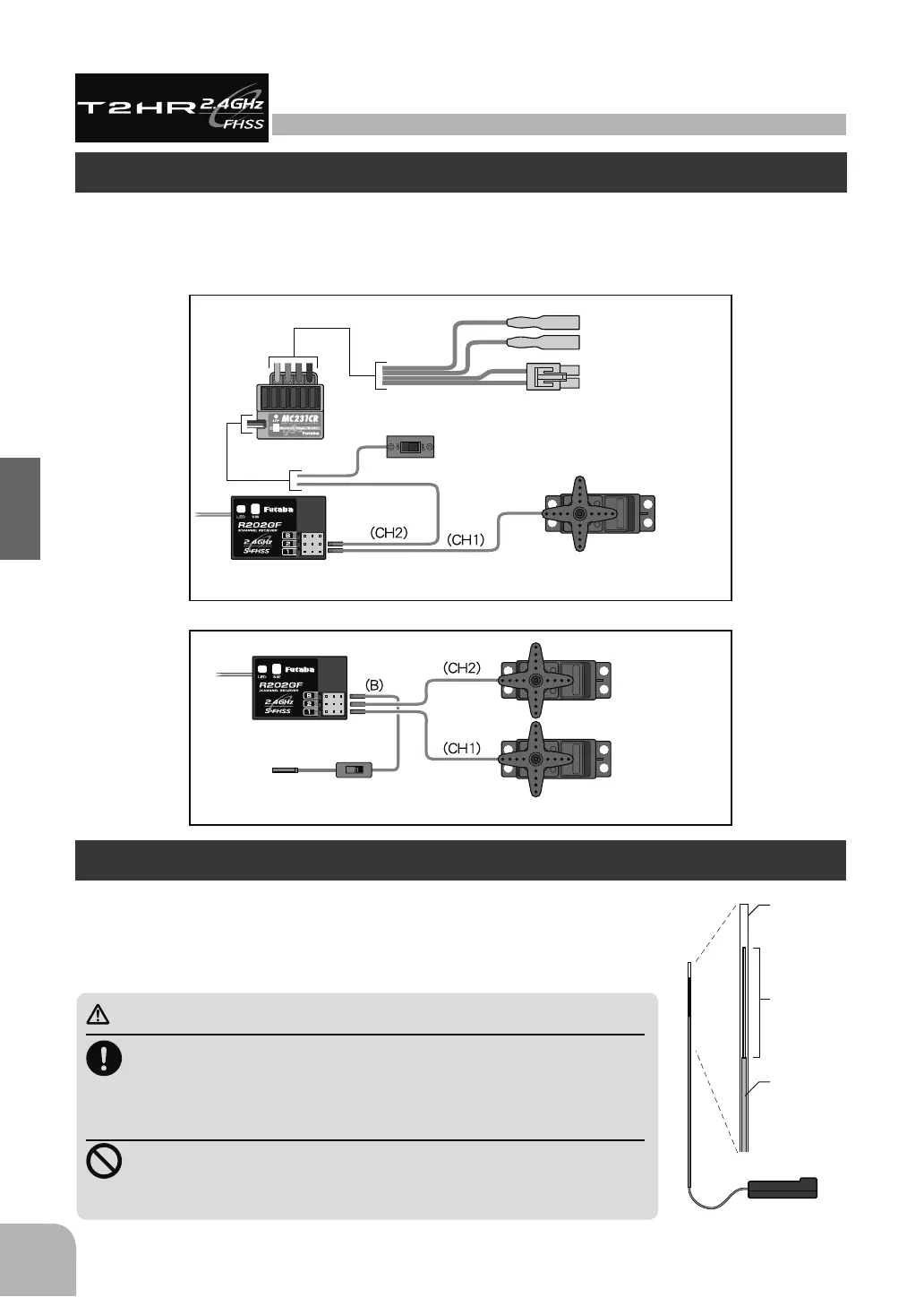

ReceiverandServoConnection
As you connect the receiver, servos and other components, do so in accordance
with the "Assembly Precautions".
Connections when a E.S.C. MC231CR or MC331CR are used.
Steering Servo
Throttle Servo
Receiver
Receiver
Power Switch
To Receiver
Battery
Steering Servo
E.S.C.
Power Switch
Connects to Motor
Connects to Battery
Gas Powered Model
ReceiverAntennaInstallation
Install the R202GF receiver on the car as follows:
Note: The operating range may become shorter, depending on where the
receiver and the antenna are mounted.
WARNING
Install the antenna in the higher place as shown in the figure.
Keep the antenna as far away from the motor, ESC and other
noise sources as possible.
Put the antenna in the antenna tube to protect it.
Do not cut the antenna.
Do not bend the coaxial cable. Doing so causes damage.
Antenna
tube
Antenna
Coaxial
cable
R202GF
