Assembly / Adjustment
Howtolinkthetransmitterandthereceiver
Each transmitter has an individually assigned, unique ID code. In order to start operation,
the receiver must be linked with the ID code of the transmitter with which it is being
paired. Once the link is made, the ID code is stored in the receiver and no further linking
is necessary unless the receiver needs to be used with an other transmitter. (For T/R set,
the link is already done at factory.)

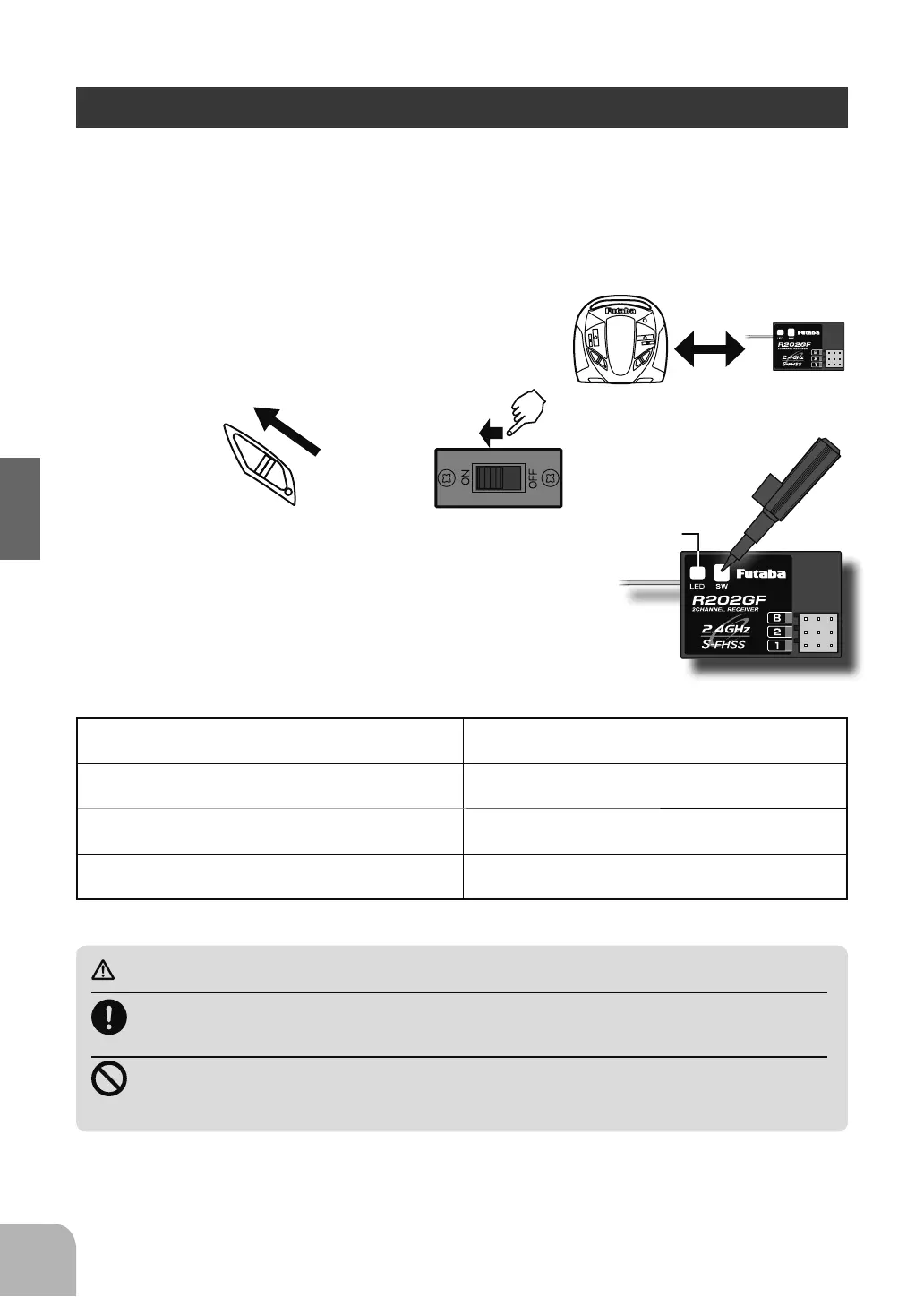

Linkprocedure
1
Bring the transmitter and the receiver close
to each other, within 0.5 meter.
2
Turn on the transmitter and the receiver.
3
Push and hold the Link Switch of the
receiver.
4
When the link is complete, the LED in the
receiver changes to solid green.
*Please refer the table below for LED status vs receiver's condition.
LEDstatusvsreceiver'scondition:
No signal reception OFF
Receiving signals On
Receiving signals, but ID is unmatched. Blink
Receiving signals, when F/S is set.
It is turns on and a fast blink for the first one
second.
Push and hold the
Link Switch
within 0.5 meter.
LED
h
e
WARNING
After the linking is done, please cycle receiver power and check that the receiver to be
linked is really under the control of the transmitter.
Do not perform the linking procedure with motor's main wire connected as it may result
in serious injury.
