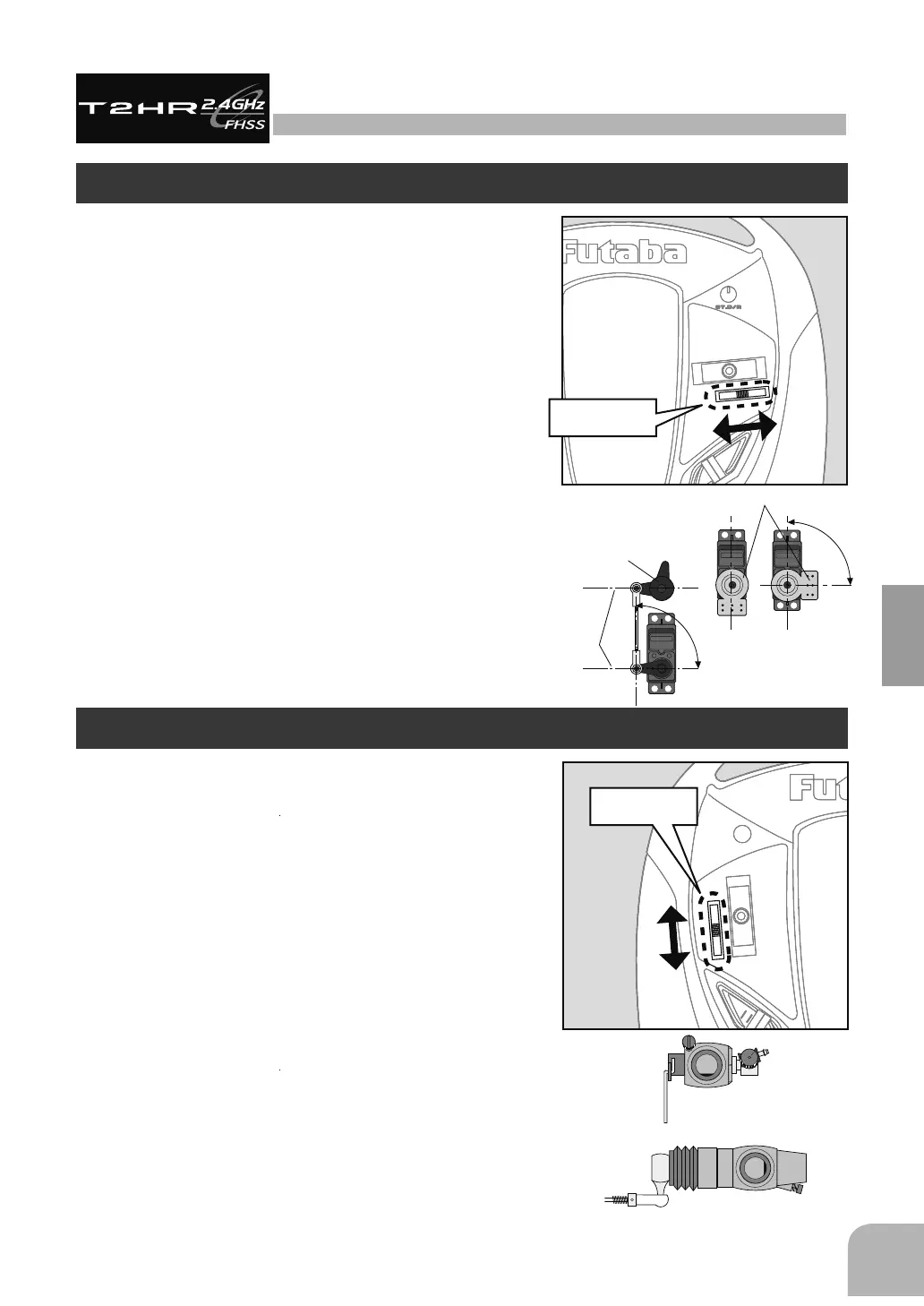

FUTABA 2HR - Transmitter Set-Up Procedures

23
2HR Functions
2HR-2.4GFunctions
SteeringTrim
Throttle neutral adjustments can be made
moving the throttle trim to the left or right.
RacersTip
When using an electronic speed control, set the throttle
trim to neutral and make adjustments to the speed
control. On a gas powered model, set the trim to
neutral and adjust the linkage to the point where the
carburetor is fully closed in accordance with the engine
instruction manual.
TrimOperationandTravel
Trim adjustments will affect the overall servo travel.
Check the brake side (backward) movement when
changes are made.
Whentrimmovementisextreme
If you use most of the trim movement to get the servo
to the neutral position , recenter the servo horn closer
to the neutral position and inspect your throttle linkage.
ThrottleTrim
Steering neutral adjustments can be made by
moving the Steering trim knob to the left or right.
RacersTip
When you install a servo, always check to be sure the
servo is at its neutral position. Adjust the servo horn
hole position and linkage so both are parallel. When a
servo saver is used, place it as close to center position as
possible. Be sure the steering trim on the transmitter is at
the neutral position.
TrimOperationAndMaximumTravel
Changing the trim can affect the overall settings. When
adjustments are made with the trims, recheck your
installation for maximum travel. (Steering D/R).
WhenTrimusageisextreme
If it takes most of your trim movement to get a servo
to the neutral position, reposition the servo horn or
servo saver on the servo and inspect your linkage
installation.
(Drum Type)
(Slide Type)
90°
90°
Parallel
Servo Saver
Direct Servo Saver Horn
SteeringTrim
ThrottleTrim
