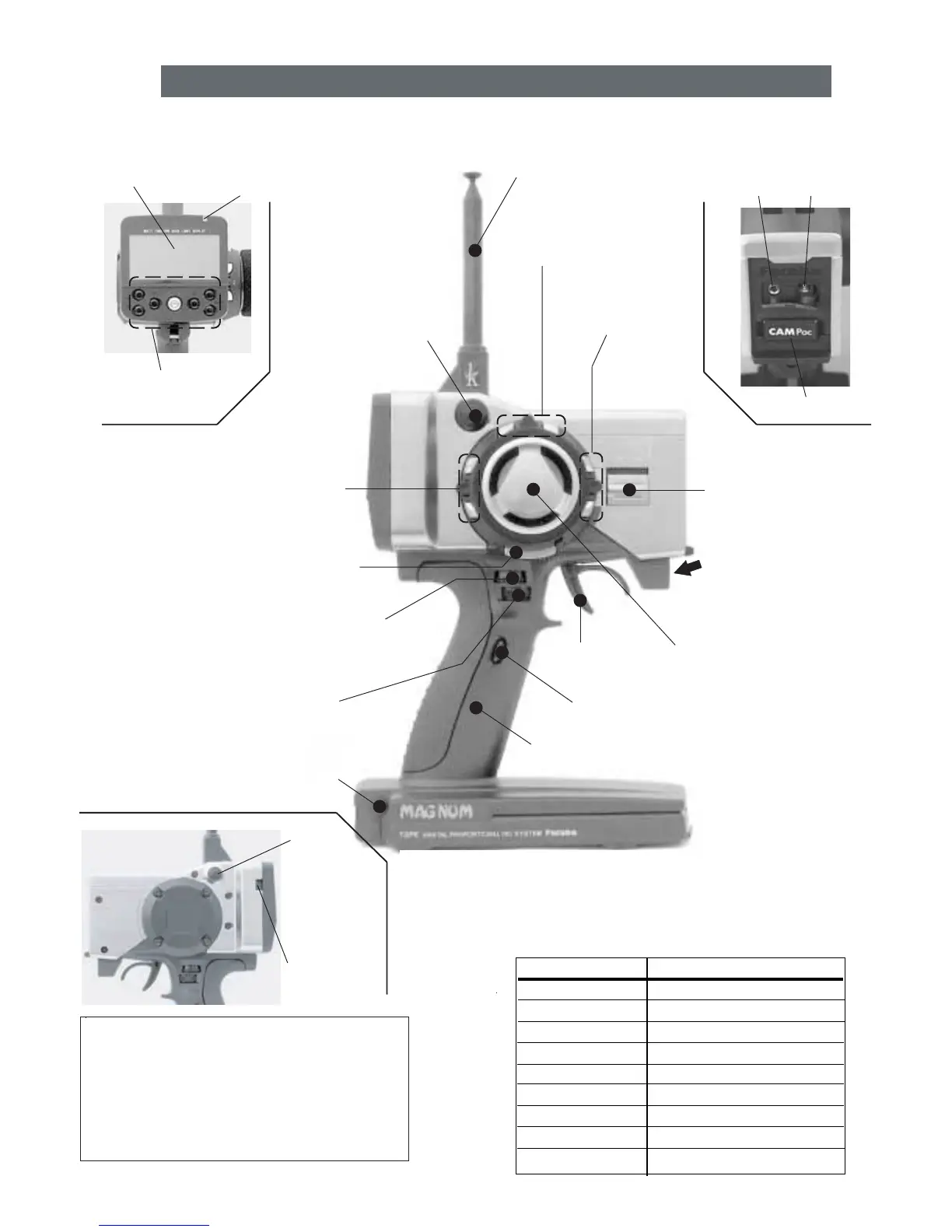

Transmitter Controls
Antenna
Digital trim 2
(DT2) (default throttle trim)
Edit buttons
Steering wheel
LCD screen
Push switch 1 (PS1)
Power
switch
CAMPac
Digital trim 3 (DT3)
Pilot lamp
Digital Dial 3 (DL3)
(default CH3 knob)
Mechanical ATL
adjusting screw
Throttle
trigger
Digital trim 1 (DT1)
(default steering trim)
(See page 9
for operating instructions.)
(See page 50 for the
adjustment instructions.)
(See page 9
for operating instructions.)
(See page 9 for operating instructions.)
(See page 12 for
instructions to
change colors.)
Grip Handle
Push
switch
3
(PS3)
Display
switch
Digital Dial 1 (DL1)
(default steering dual rate)
(See page 9 for the operating instructions.)
Push switch 2 (PS2)
Digital Dial 2 (DL2)
(default ATL)
(See page 9 for the operating instructions.)
Sound port
Use a commercial earphone
with a 3.5mm diameter plug.
*The switches, knobs and trimmers may all be reassigned. (see pp. 34-35)
Precautions when turning the power
switch on and off.
When the data is changed using the edit keys or
trim levers, wait at least two seconds before
turning off the power. If the power is turned off
within two seconds after the data was changed,
the new data will not be written to memory.
Charge
Port
DSC
Port
DEFAULT ASSIGNMENT TABLE
The factory default functions activated by the switches and knobs are
shown below. Default assignments may be changed using the
FUNC-DIAL
and
FUNC-SW
programming (See pp. 34-35.) Features assigned to DL1, 2, 3, and
DT1, 2, 3 are displayed at all times on right side of LCD screen.
CONTROL DEFAULT
DT1 Steering trim
DT2 Throttle trim
DT3 NONE
DL1 Steering dual rate
DL2 ATL
DL3 Channel 3
PS1 NONE
PS2 NONE
PS3 NONE
