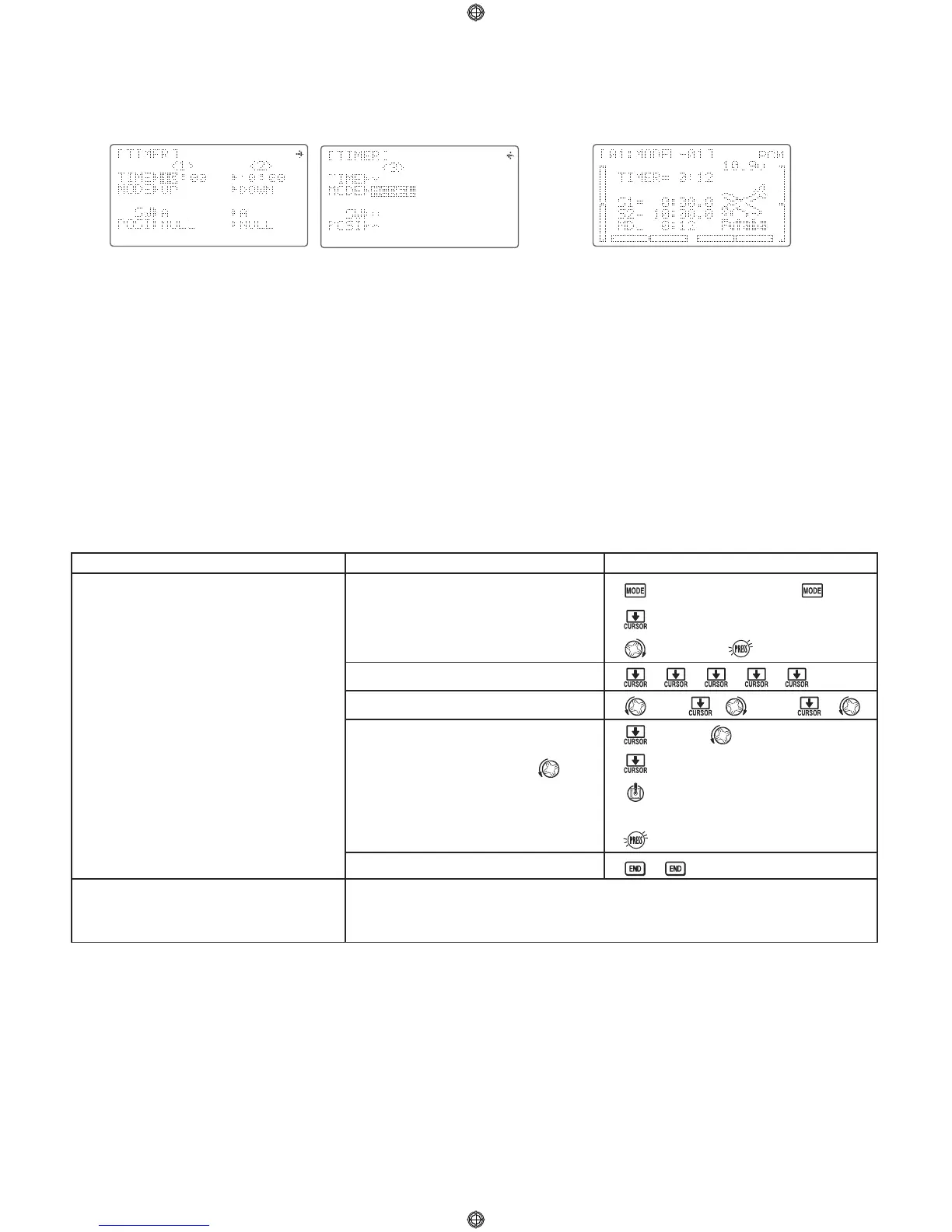

TIMERsubmenu (stopwatch functions): controls three electronic clocks used to keep track of time remaining in a competition time
allowed, flying time on a tank of fuel, amount of time on a battery, etc.
Adjustability:
Count down timer: starts from the chosen time, displays time remaining. If the time is exceeded, it continues to count
below 0.
Count up timer: starts at 0 and displays the elapsed time up to 99 minutes 59 seconds.
Model timer: cumulates ON time up to 99 hours 59 minites each model.
Once Model timer function is turned off, the cumulate time will also be reset to "0:00".
Independent to each model, and automatically updates with model change.
In either TIMER mode, the timer beeps once each minute. During the last twenty seconds, there's a beep each two seconds.
During the last ten seconds, there's a beep each second. A long tone is emitted when the time selected is reached.
(UP/DOWN TIMER)
To Reset, choose the desired timer with the SELECT key (while at the startup screen), then press and hold DIAL for 1 second.
Activation by either direction of SWITCH A-H, by THROTTLE STICK (STK-THR ) (Using the THROTTLE STICK is convenient if you
are keeping track of fuel remaining, or for an electric, how much battery is left); or by the power SWITCH (PWRSW ).
GOAL of EXAMPLE: STEPS: INPUTS:
38
Set timer 2 to count down 4-1/2
minutes, being controlled by
T
HROTTLE STICK position. This is
utilized to keep track of actual
Throttle on time to better correlate
with fuel/battery usage.
Where next?
Open BASIC menu, then
open TIMER function.
Go to TIMER<2> .
Adjust time to 4 min. 30 sec., count down.
Assign to T
HROTTLE STICK and set
trigger point (if timer is to trigger
BELOW this throttle point, so
arrow points down).
Close.
for 1 second.
(If ADVANCE, again.)
to page 2.
to TIMER.
to 4. to 30.
to SW. to STK THR .
to POSI.
T
HROTTLE STICK to desired
position (Ex: 1/4 stick).
for 1 second to set.
Adjust END POINTs after first flight test: see p. 32.
Adjust auxiliary channel assignments (ex: move flaps to a switch): see p. 39.
Set up TRAINERfunctions: see p. 40.
