64
WARNING
When using the CGY760R for the first time, or
when making changes in the throw of a servo and its
linkage, always perform the limit setting operation.
How to set the servo limit point:
Set the transmitter's throttle stick to the idle position. Select [Lim. Set Id]
with the [
/+] or [ /-] key and press the [Enter] key to enter the setting mode.
"EXECUTE: Enter (1sec)" is displayed. Press the [Enter] key for about 1
second. The cursor will move to "Lim. Set IHi". Set the stick to the full high
position and set the same as "Lim. Set Id". If the setting data is not normal
(servo operation amount is 50% or less), "Err" is displayed. In this case,
check the transmitter setting and repeat this procedure onceagain.

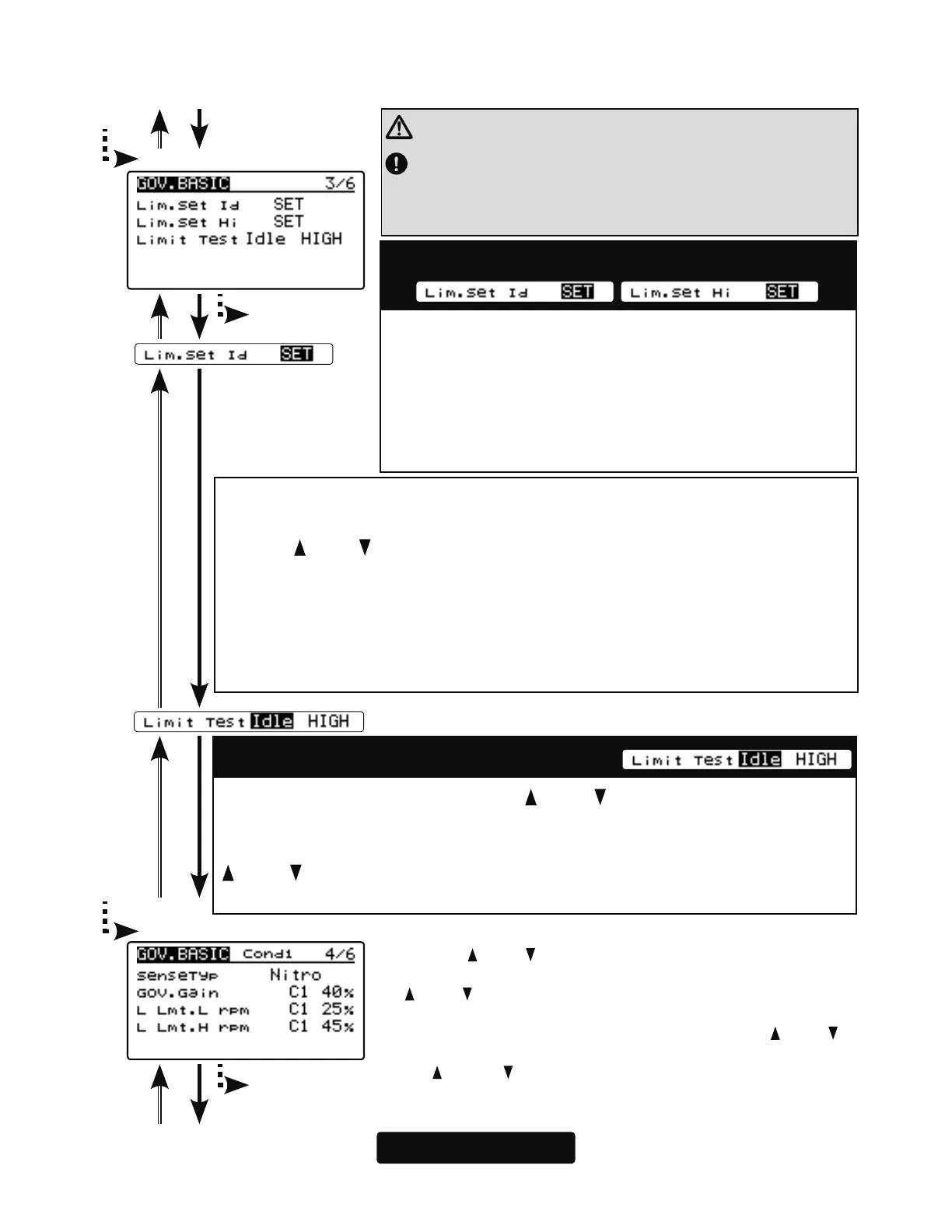

GOV. BASIC screen 4/6
From 3/6
Go to 5/6 from any
cursor position
(10)
Limit Test: Check the set limit point
Check the set limit point. Use the [ /+] or [ /-] key to move the cursor to
"LIMIT Test Idle" and press the [Enter] key to move the servo to the idle
point "END" will be displayed on screen. Similarly on the high side, use the
[
/+] or [ /-] key to select the cursor "LIMIT Test HIGH" and test it with the
[Enter] key.
*The setting with "C1" display can be set for each condition.
1. Use the [
/+] or [ /-] key to move the cursor to "C#" and press
the [Enter] key to enter the condition selection mode. Use the
[
/+] or [ /-] key to select the condition number "C#" and press
the [Enter] key to decide the condition number.
2. Next, adjust value of the condition selected by the [
/+] or [ /-]
key, and press the [Enter] key to enter the setting mode. Use
the [
/+] and [ /-] keys to change the setting value. When you
are done, press the [Enter] key to exit the setting mode.
GOV. BASIC screen 3/6
From 2/6
Go to 4/6 from any
cursor position
(9) Lim. set: Servo limit point setting
Servo limit point setting defines the overall travel range
for the throttle servo. It is fundamental for governor op
-
eration and must be set prior to other functions. Servo
limits must also be reset when the throttle linkage or trim
are changed. Refer to the next page for setting proce
-
dures and adjustments.
To Next Page
