SWASH DETAIL SETTING
)
7KHVZDVKGHWDLOVHWWLQJLVXVHGWRNHHSWKHVZDVKSODWHOHYHODWKLJKDQGORZFRO-
OHFWLYHSLWFKWRF\FOLFLQWHUDFWLRQVDQGF\FOLFSLWFKWRFROOHFWLYHSLWFKLQWHUDFWLRQV
Refer to page 72 and display the
"
6:+'(7$,/
"
screen from the
"
(;3(57
0(18'
"
VFUHHQ

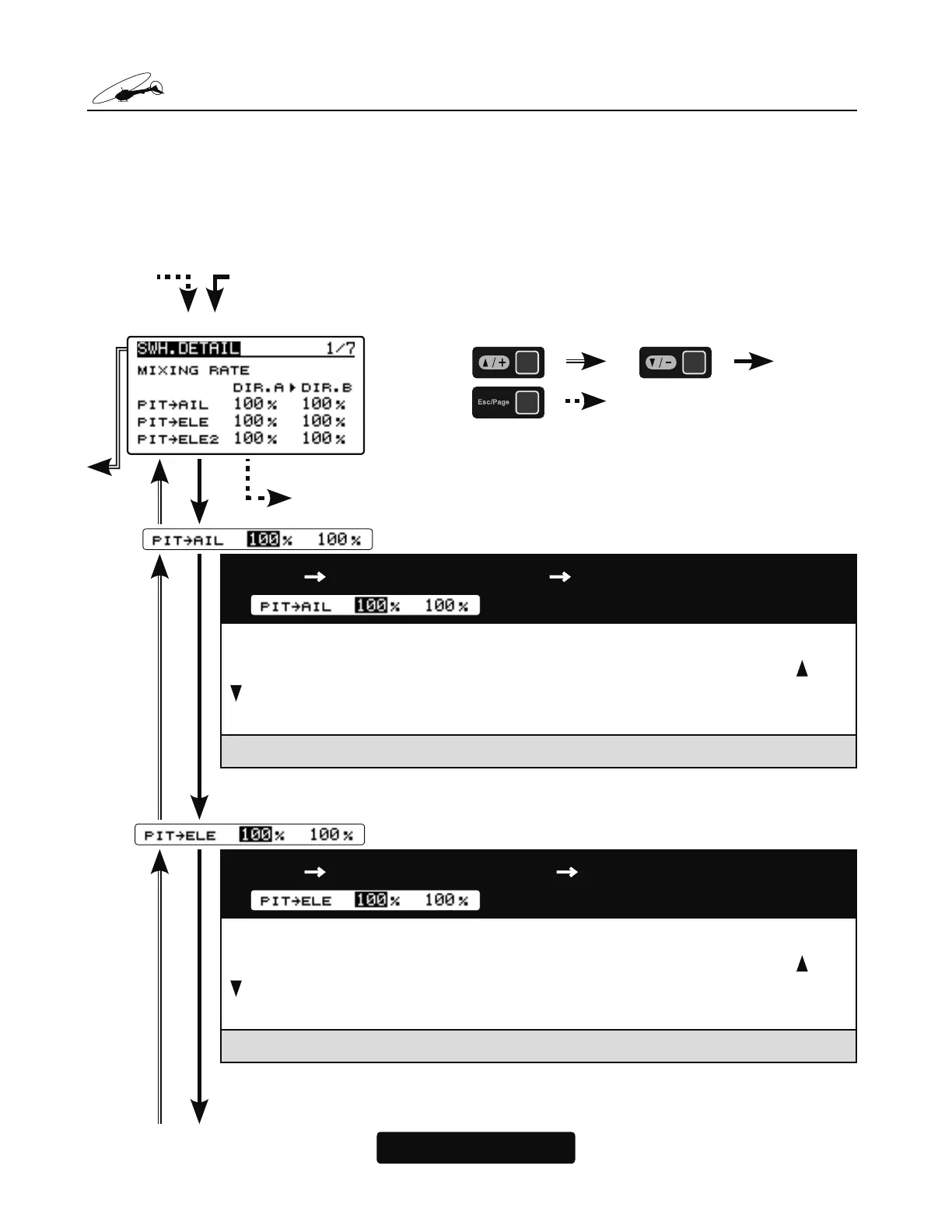

SWH. DETAIL screen 1/7
From 2/2 From the "RESET" of
FLT. DETAIL screen 7/7
Go to 2/7 from any cursor position
: :
:
(1) PIT AIL: collective pitch aileron mixing rate
Going from MID to HIGH and MID to LOW collective pitch check that the
swash plate is traveling flat throughout the entire range. Using the [
/+] or
[
/-] key to level the swash plate on the aileron axis to the middle point by
raising or lowing the aileron servo.
Setting ranges: 30 ~ 150% Initial value: 100%
(2) PIT ELE: collective pitch elevator mixing rate
Going from MID to HIGH and MID to LOW collective pitch check that the
swash plate is traveling flat throughout the entire range. Using the [
/+] or
[
/-] key to level the swash plate on the elevator axis to the middle swash
position by raising or lowering the elevator servo.
Setting ranges: 30 ~ 150% Initial value: 100%
