S.BUS BASIC SETTING
)
The
"
6%86%$6,&
"
screen is accessed via the
"
%$6,&0(18
"
screen (see page
6HWWKH&+IRUHDFKIXQFWLRQDFFRUGLQJWRWKHWUDQVPLWWHUWREHXVHG$Q\XQXVHG
IXQFWLRQVVKRXOGEHVHWWR,1+,QKLELWHG)RUH[DPSOHLIWKH*DLQ$(DQG*DLQ
58'UHPRWHJDLQIXQFWLRQV DUHQRWJRLQJWREHXVHGWKHQVHW WKHPWR>,1+@7KH
&*<5ZLOOWKHQDOORZ\RXWRPDNHJDLQDGMXVWPHQWVZLWKLQWKHUHVSHFWLYHPHQX
WARNING
Always verify that the S.BUS function as-
signments match your transmitter’s function
(in the FUNCTION menu) assignments. If
any changes are made within the transmit-
ter function assignments, then it will also be
necessary to make the changes within the
S.BUS function assignments. Change the
setting with the transmitter turned off.
From 3/3
Go to 2/3 from any
cursor position
From the "RESET" of
SBUS BASIC screen 3/3
(1) S. BUS connection: AIL (Aileron) channel
Move the cursor to "AIL CH #" by pressing the [
/
+] or [
/
-] key and press
the [Enter] key to enter the setting mode. Use the [
/
+] or [
/
-] key to set
the aileron channel of the transmitter. When you are done, press [Enter]
key to finish. Follow this procedure to make the adjustments to to all chan-
nels below.
(2) S. BUS connection: ELE (Elevator) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.
(3) S. BUS connection: THR (Throttle) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.
(4) S. BUS connection: RUD (Rudder) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.
(5) S. BUS connection: PIT (Pitch) channel
Using the [
/
+] or [
/
-] key to set the correct channel number.

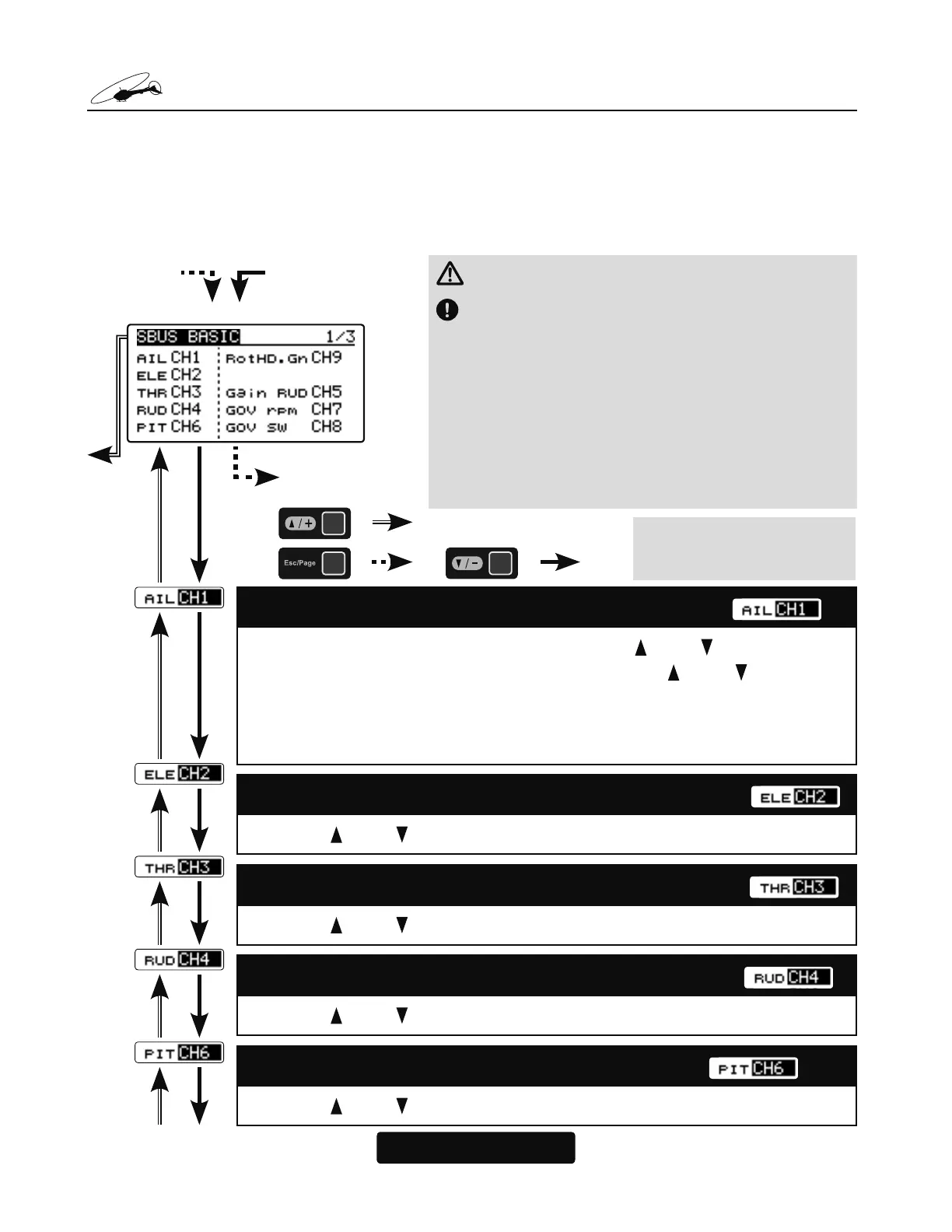

SBUS BASIC screen 1/3
:
: :
Settings (all in common):
1 to 16ch, DG1, DG2, INH
