FutureLogic PSA-66-ST - PSA-66-001 N Netplex Printer

UM-STO-C Revision C 19
Operators and Technicians
Manual
PSA-66-001N
PSA
-
66
-
ST
4.2 PSA-66-001N Netplex Printer
Table 4-1 Front Bezel Port Pins
PIN FUNCTION
1 Modulated +24VDC
2 No connect
3 GND

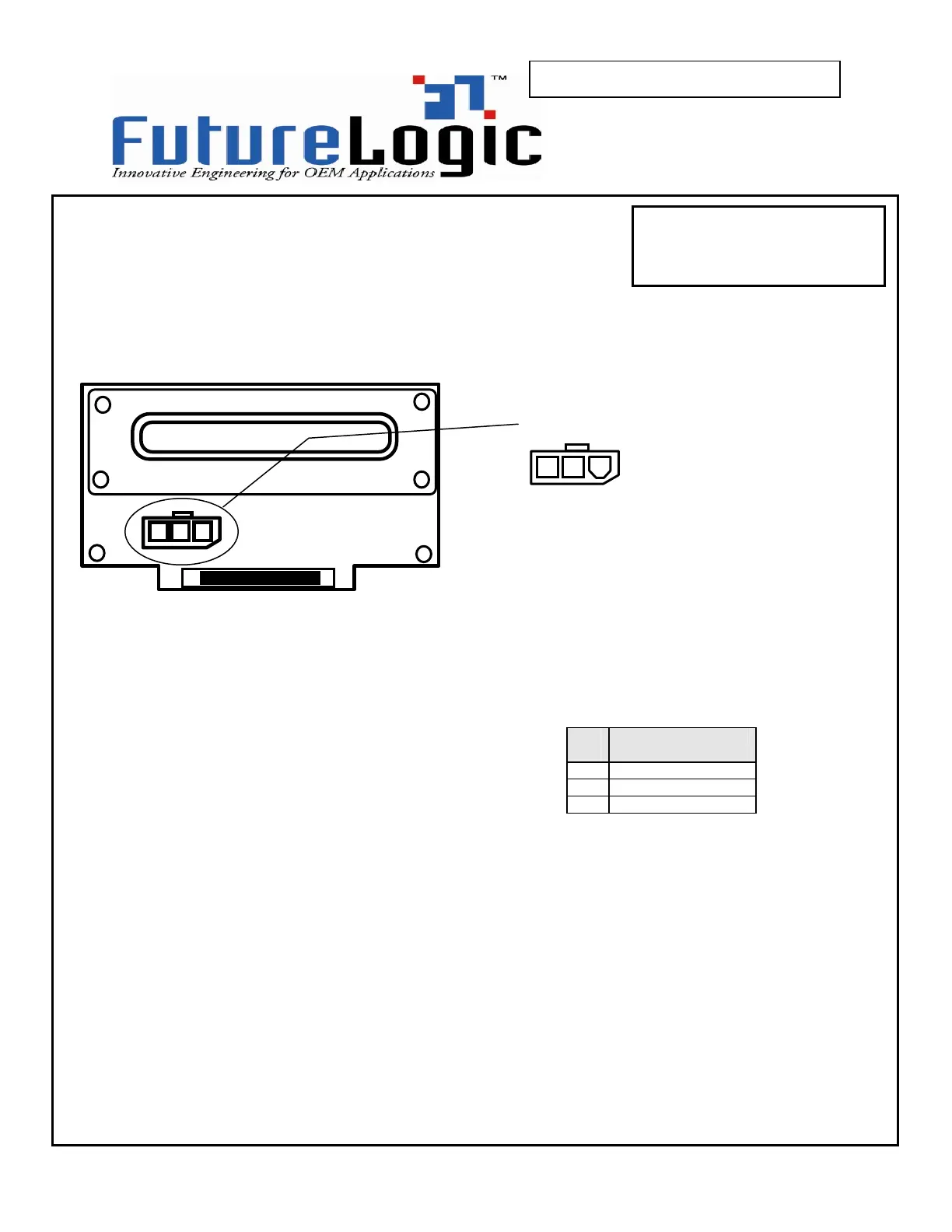

Figure 4-1 PSA-66-001N Front Bezel Port
PSA-66-001N
Netplex Version
This table below lists information on the bezel
port. The bezel port is for driving a printer front
action alert light built into the front bezel.
Bezel Port
Connector: Molex 39-01-4032
Mate: Molex 39-01-4030
1
2
3
