UM-STO-C Revision C 23
Operators and Technicians
Manual
PSA-66-001N
PSA
-
66
-
ST
Table 4-5 RS232 Printer Base Port
Pin Out
PIN FUNCTION
1 MRESET
2 Netplex TXD
3 +12 VDC (RS232 optional)
4 Netplex RXD
5 GND
6 +24 VDC
7 GND
8 +24 VDC
9 Modulated +24VDC
10 GND
11 RS232 RXD
12 RS232 TXD
13 DTR
14 RTS

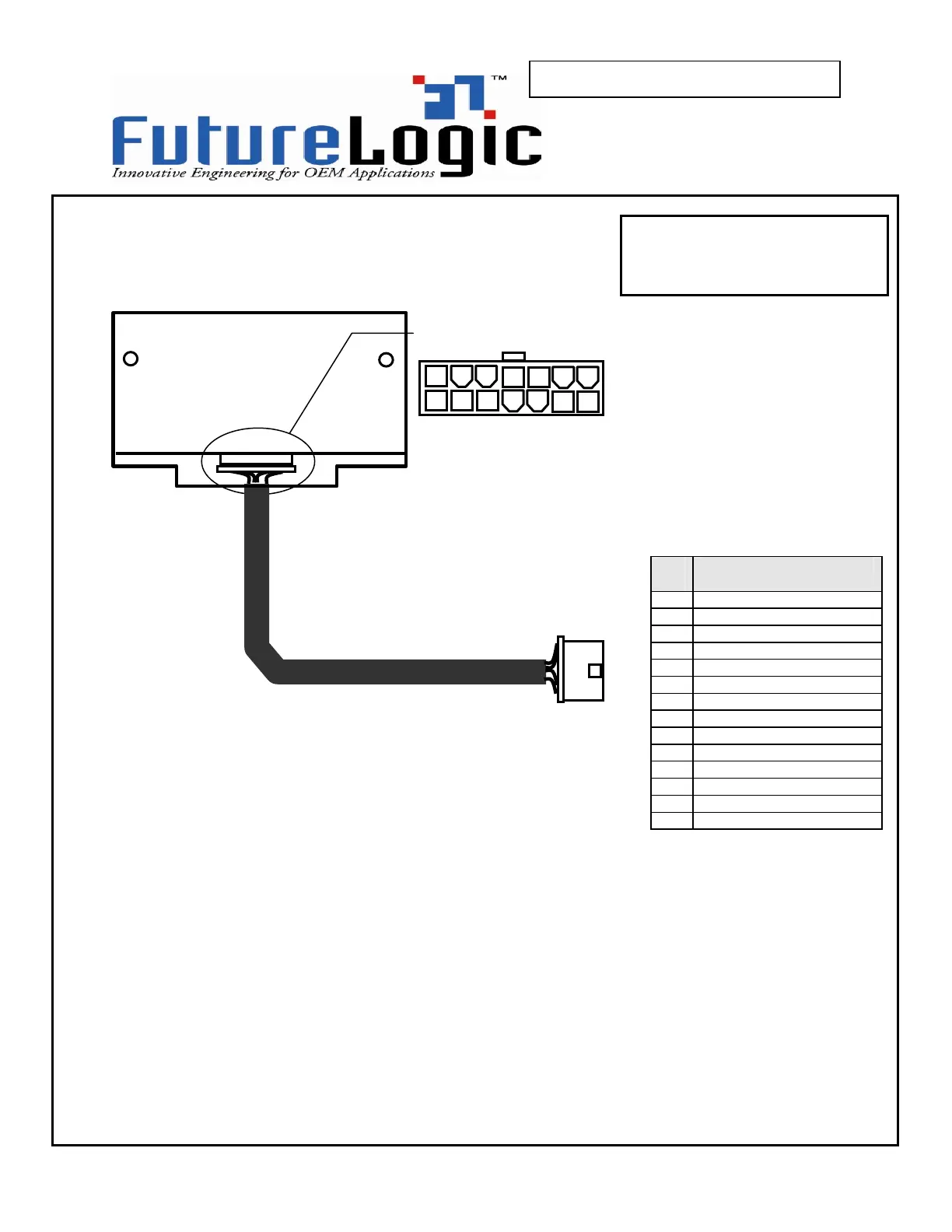

Figure 4-5 PSA-66-ST Base Printer Port
PSA-66-ST
RS232 Version
Base Port
Connector: Molex 39-30-1400
Mate: Molex 39-01-2140
1
8
14
7
