FutureLogic PSA-66-ST - Table 4-7 Rs232 Cable Port Pin out

UM-STO-C Revision C 24
Operators and Technicians
Manual
PSA-66-001N
PSA
-
66
-
ST
Table 4-6 RS232 Cable Port Pin Out
PIN FUNCTION I/O*
1 MRESET I
2 TXD O
3 +12 VDC (optional) -
4 RXD I
5 GND -
6 +24VDC -
7 GND -
8 +24VDC -
9 NO CONNECT -
10 NO CONNECT -
11 DTR O
12 RTS O

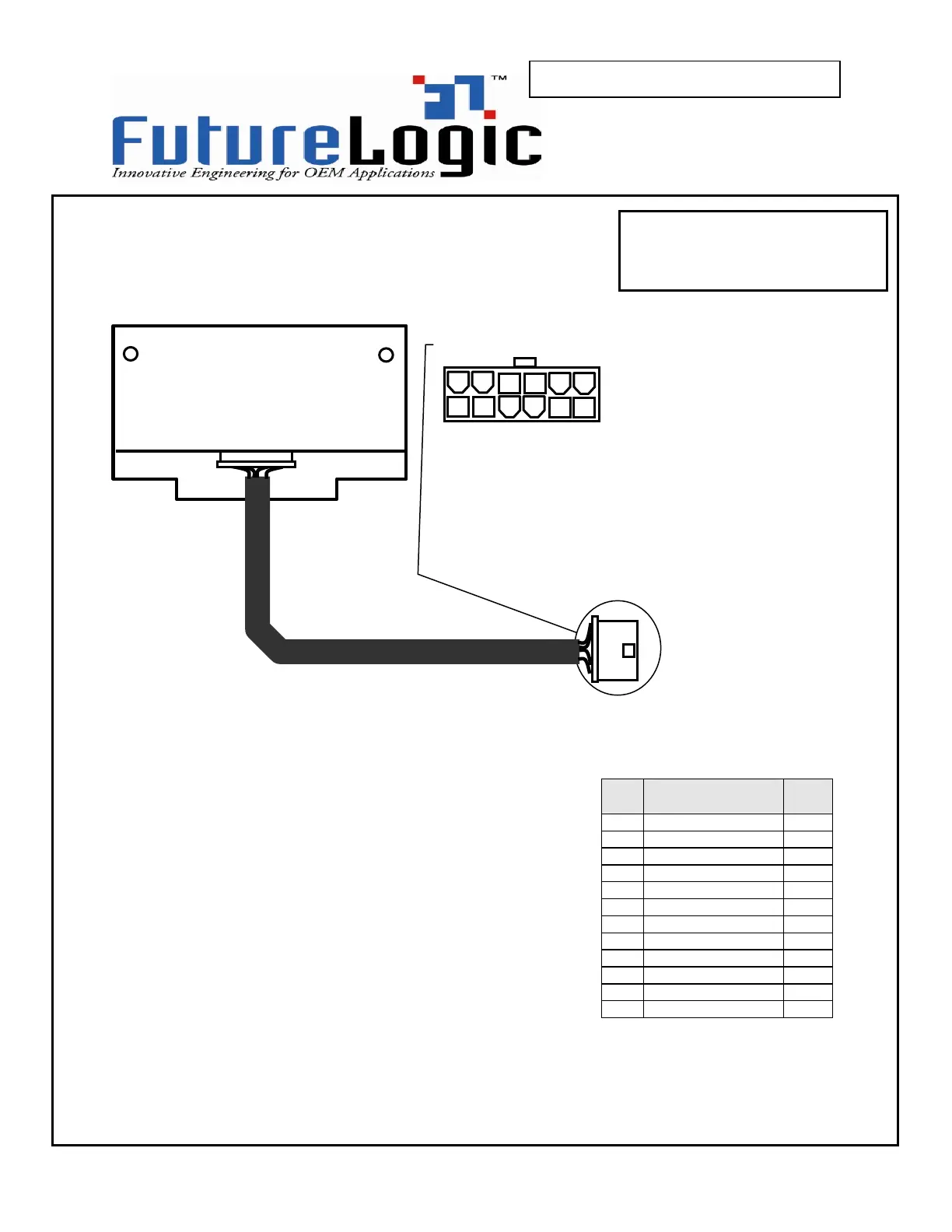

Figure 4-6 PSA-66-ST RS232 Unit RS232 Cable Pin Out
PSA-66-ST
RS232 Version
Connector: Molex 39-01-2121
Mate: Molex 39-01-2120
RS232 Cable Port
1
6
7
12
