UM-STO-C Revision C 20
Operators and Technicians
Manual
PSA-66-001N
PSA
-
66
-
ST
Table 4-2 Front Bezel Port Pins

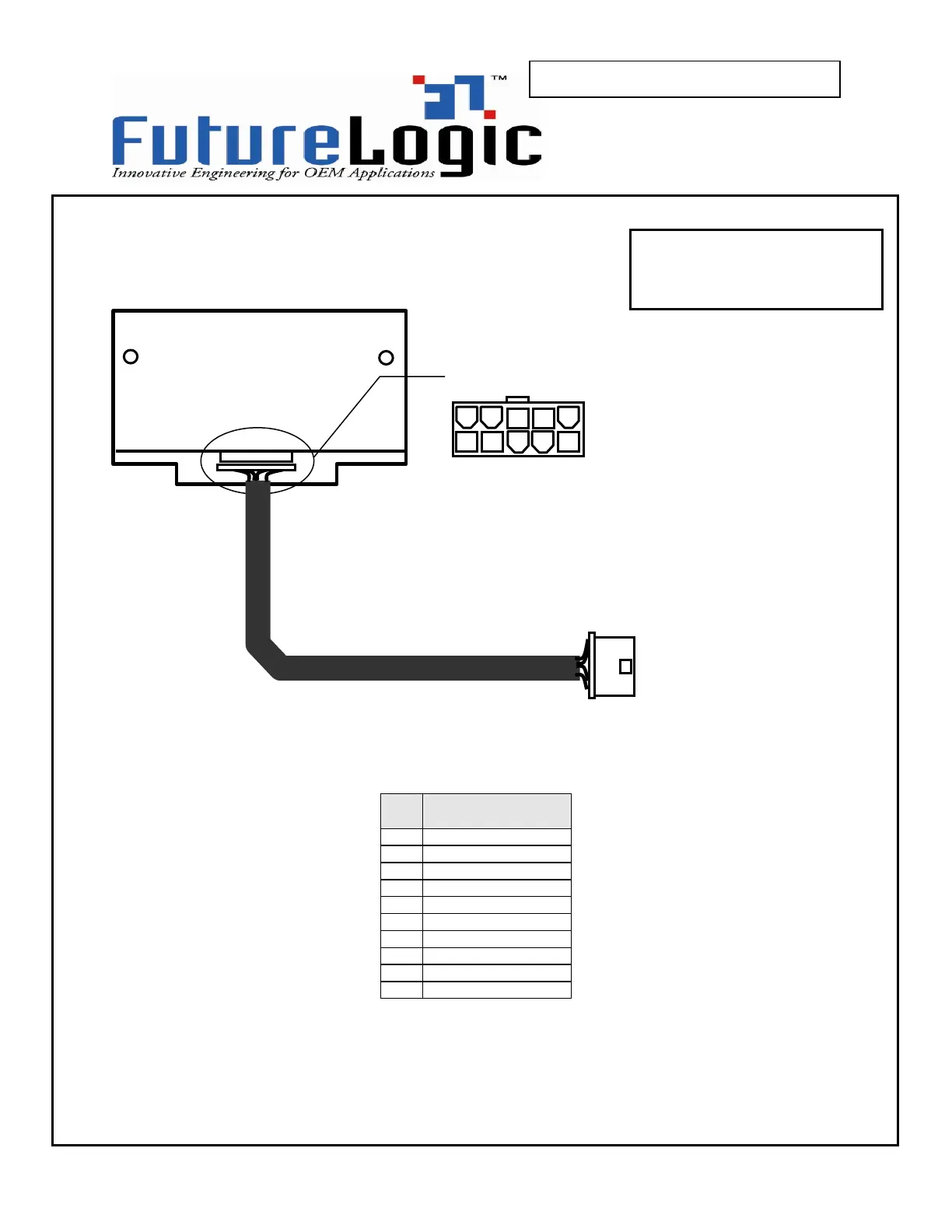

Figure 4-2 PSA-66-001N Base Printer Port
PIN FUNCTION
1 MRESET
2 Netplex TX
3 +13V
4 Netplex RX
5 GND
6 +24VDC
7 GND
8 +24VDC
9 Modulated +24VDC
10 GND
PSA-66-001N
Netplex Version
Base Port
1
5
6
10
Connector: Molex 39-30-1100
Mate:
Molex 39
-
01
-
2100
