UM-STO-C Revision C 21
Operators and Technicians
Manual
PSA-66-001N
PSA
-
66
-
ST
Table 4-3 Netplex
Printer Cable Pin Out

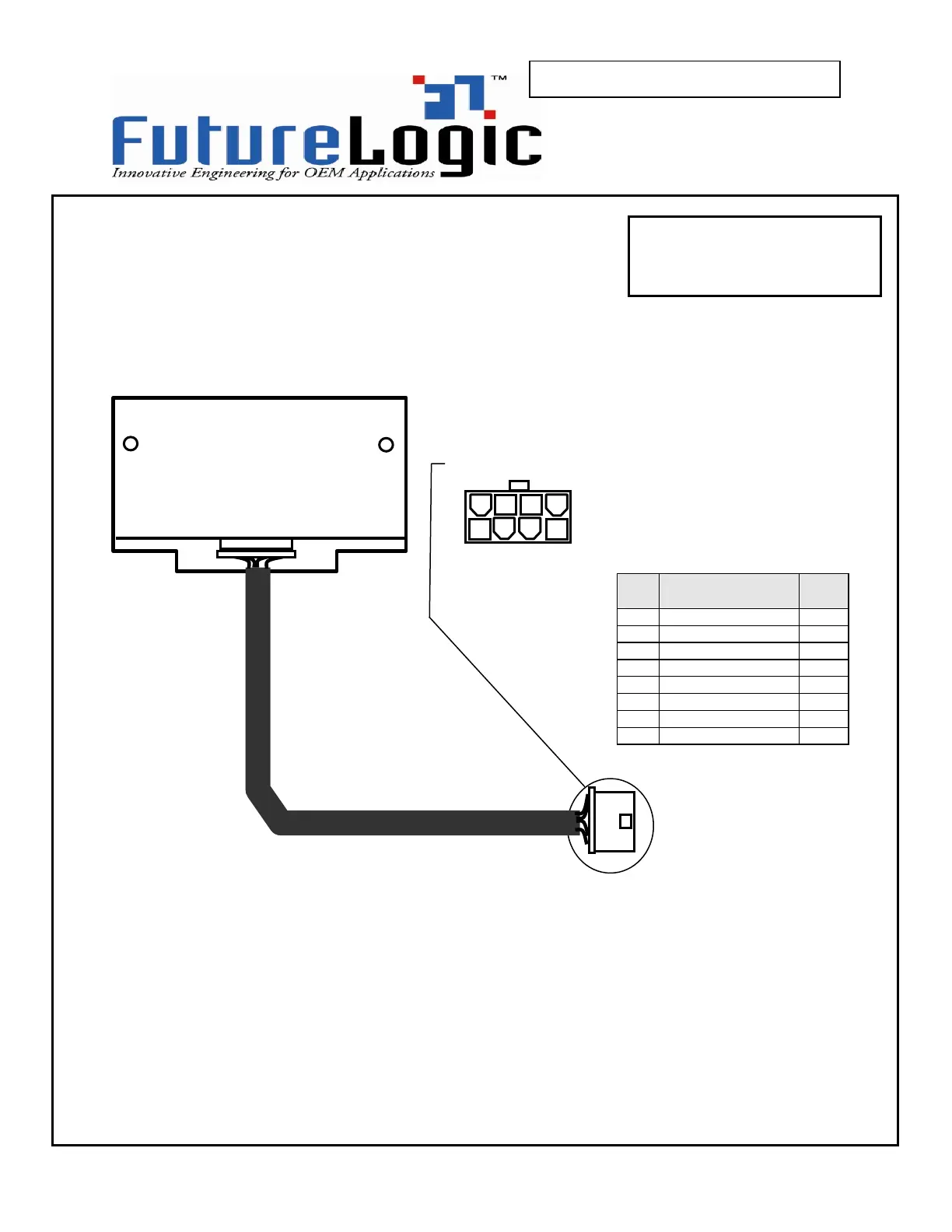

Figure 4-3 PSA-66-001N Cable Connector Pin Out
PIN FUNCTION I/O*
1 MRESET I
2 Netplex TX I
3 +13V -
4 Netplex RX O
5 GND -
6 +24VDC -
7 BGND -
8 NO CONNECT -
PSA-66-001N
Netplex Version
Netplex Port
Connector: Molex 39-01-2081
Mate:
Molex 39
-
01
-
2080
1
5
4
8
