5.10 RS232 Setup

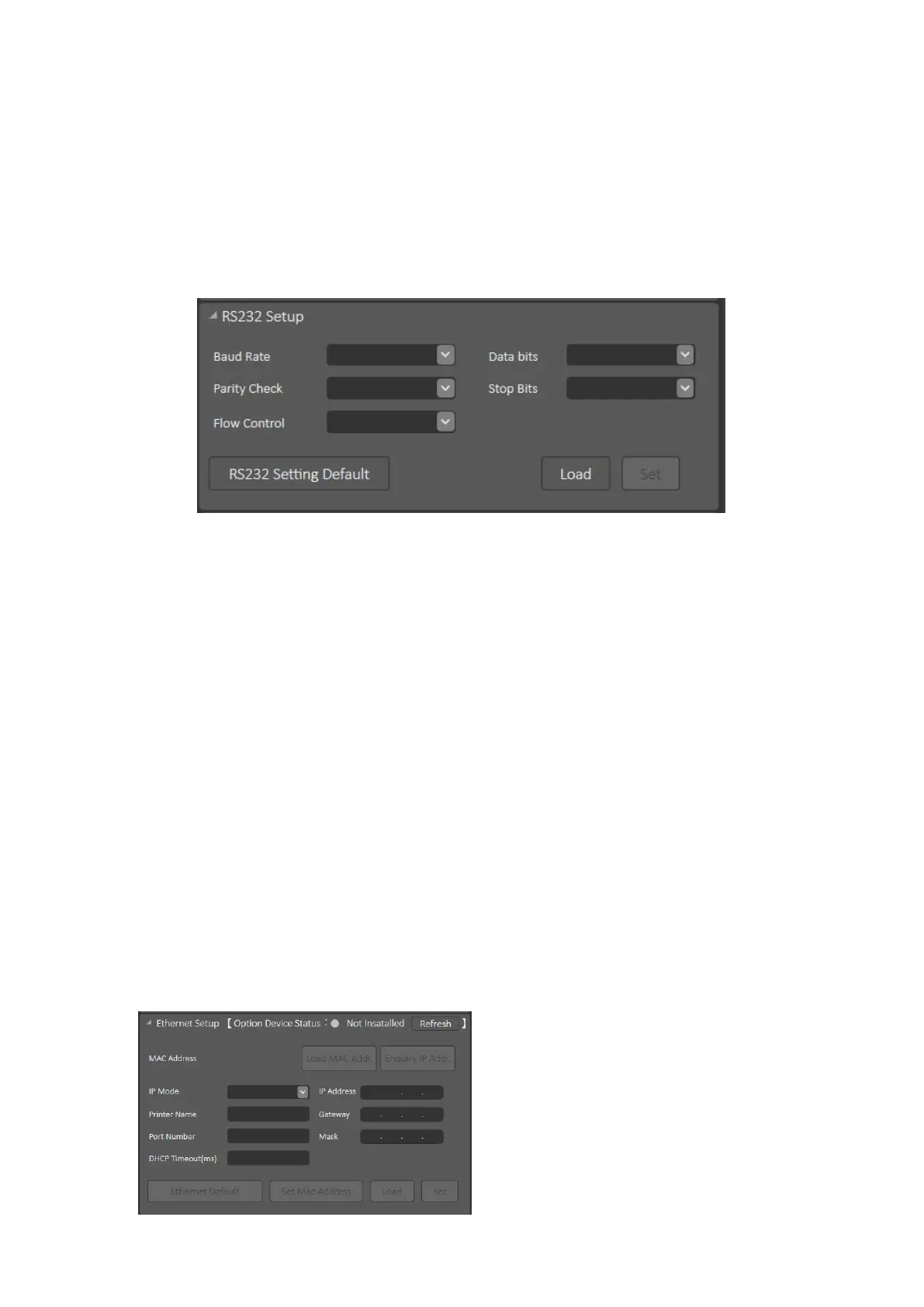

This function can set the Serial port (RS232) in the printer. Please refer to
following figure 5.11:
5.11
Baud Rate: Set the baud rate of the serial port. The device that communicates
with the printer must be the same as that set for the printer.
Parity Check: Set the parity check.
Flow Control: Control and set the flow of serial port transmission.
Data Bits: Can be set for communication.
Stop Bits: Can be set for communication.
5.11 Ethernet Setup
This function can set the Ethernet port in the printer. Please refer to following
figure 5.12:
5.12
IP Mode: dynamic and Static IP setting
To Next Page
