GALaxy eHydro Elevator Controller Section 2 –Installation
2-11
Step 5: Install the APS Camera.
• Mount the camera on the mounting bracket.
• The APS camera should be centered with the encoded tape.
• The face of the camera should be 4 inches from the face of the tape. See Figure 2-12.

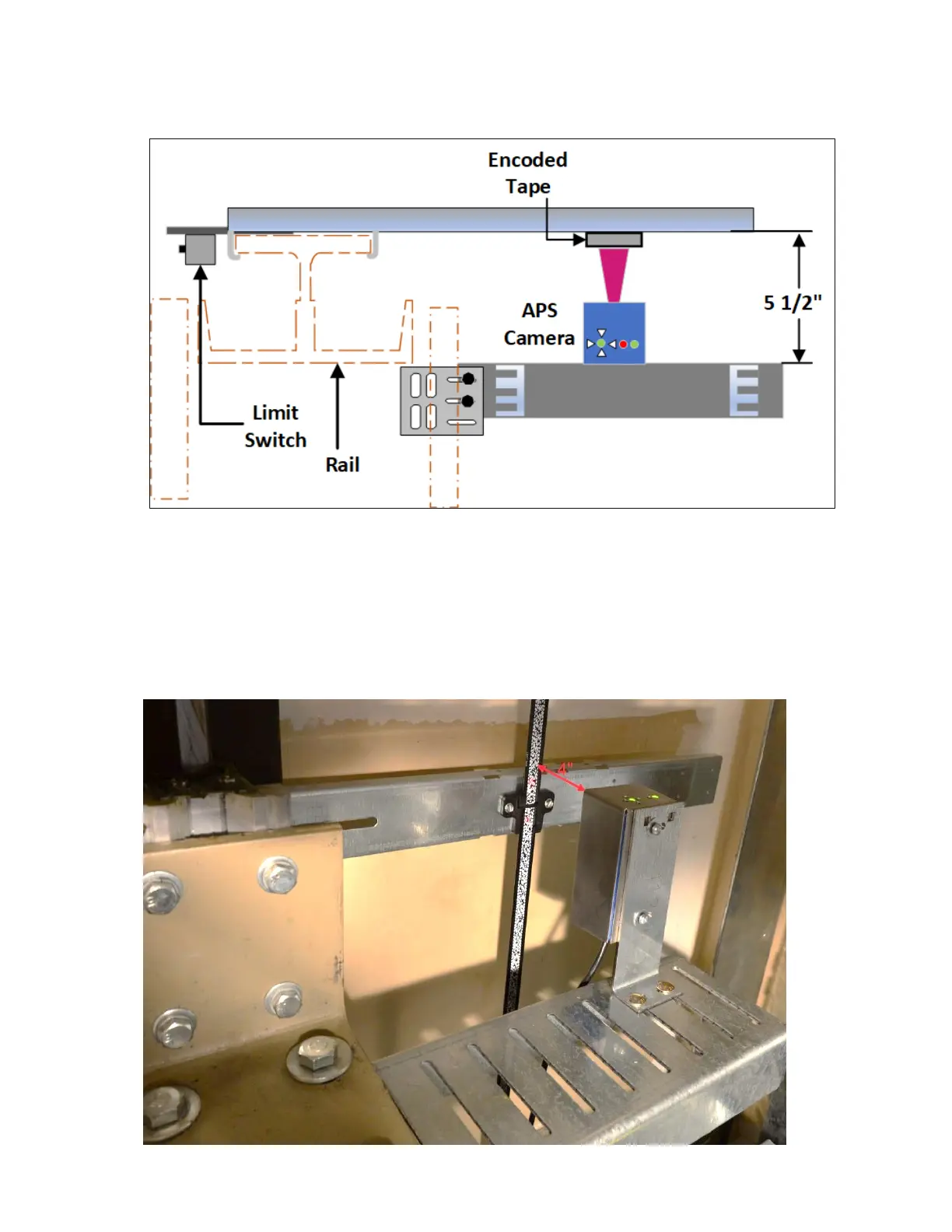

Figure 2-11: Top View of APS Camera and Mounting Bracket
Figure 2-12: APS Camera Mounted 4 Inches From Encoded Tape
