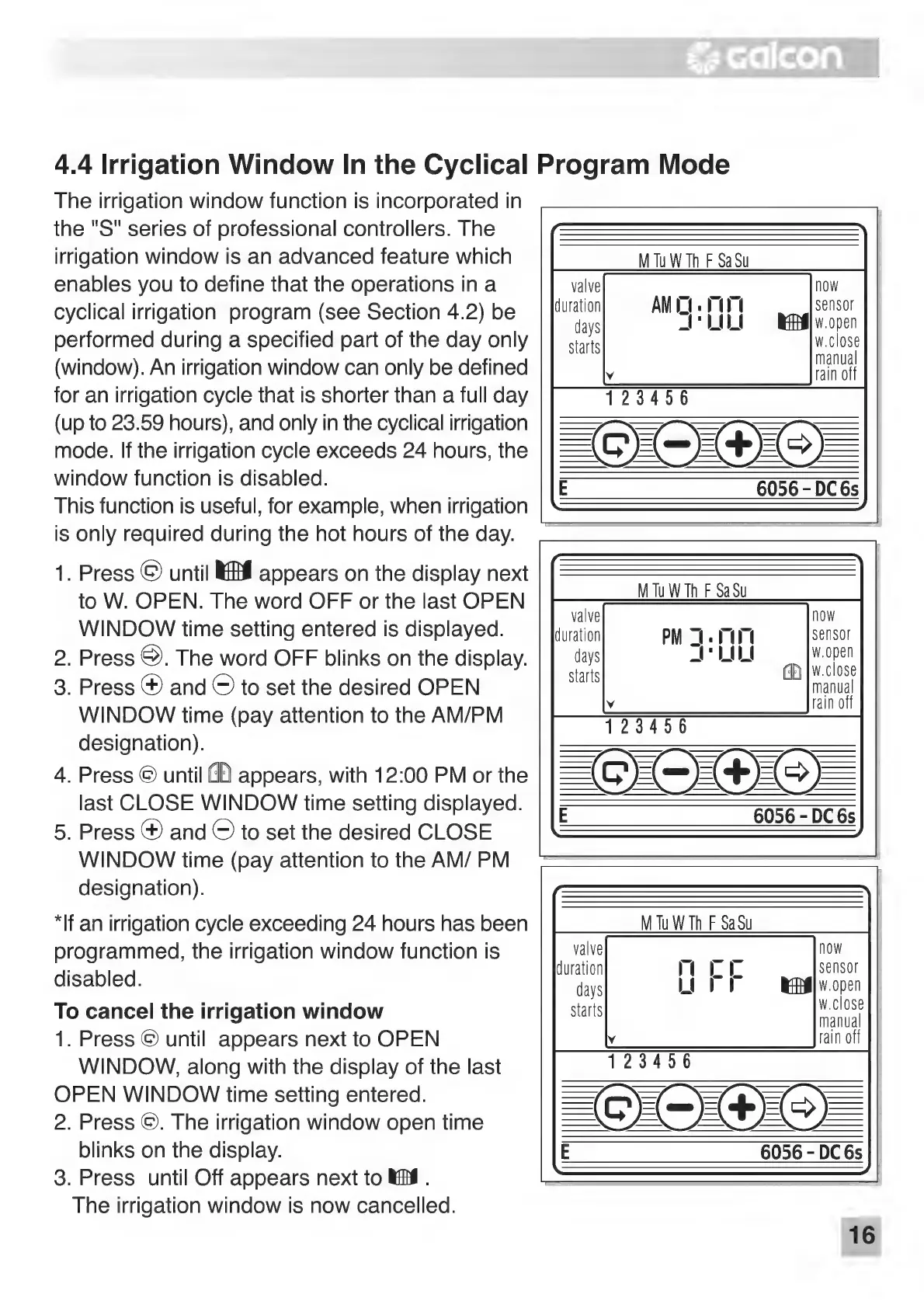

4.4 Irrigation Window In the Cyclical Program Mode
The irrigation window function is incorporated in
the "S" series of professional controllers. The See eS
irrigation window is an advanced feature which
enables you to define that the operations ina
cyclical irrigation program (see Section 4.2) be
performed during a specified part of the day only
(window). An irrigation window can only be defined
for an irrigation cycle that is shorter than a full day
(up to 23.59 hours), and only in the cyclical irrigation
mode. If the irrigation cycle exceeds 24 hours, the
window function is disabled.
This function is useful, for example, when irrigation
is only required during the hot hours of the day.
1. Press © until MS appears on the display next
to W. OPEN. The word OFF or the last OPEN
WINDOW time setting entered is displayed.
2. Press ©. The word OFF blinks on the display.
3. Press ® and © to set the desired OPEN
WINDOW time (pay attention to the AM/PM
designation).
4. Press © until GD appears, with 12:00 PM or the
last CLOSE WINDOW time setting displayed.
5. Press @ and © to set the desired CLOSE
WINDOW time (pay attention to the AM/ PM
designation).
“If an irrigation cycle exceeding 24 hours has been
programmed, the irrigation window function is
disabled.
To cancel the irrigation window
1. Press © until appears next to OPEN
WINDOW, along with the display of the last
OPEN WINDOW time setting entered.
2. Press ©. The irrigation window open time
blinks on the display.
3. Press until Off appears next to RM .
The irrigation window is now cancelled.
