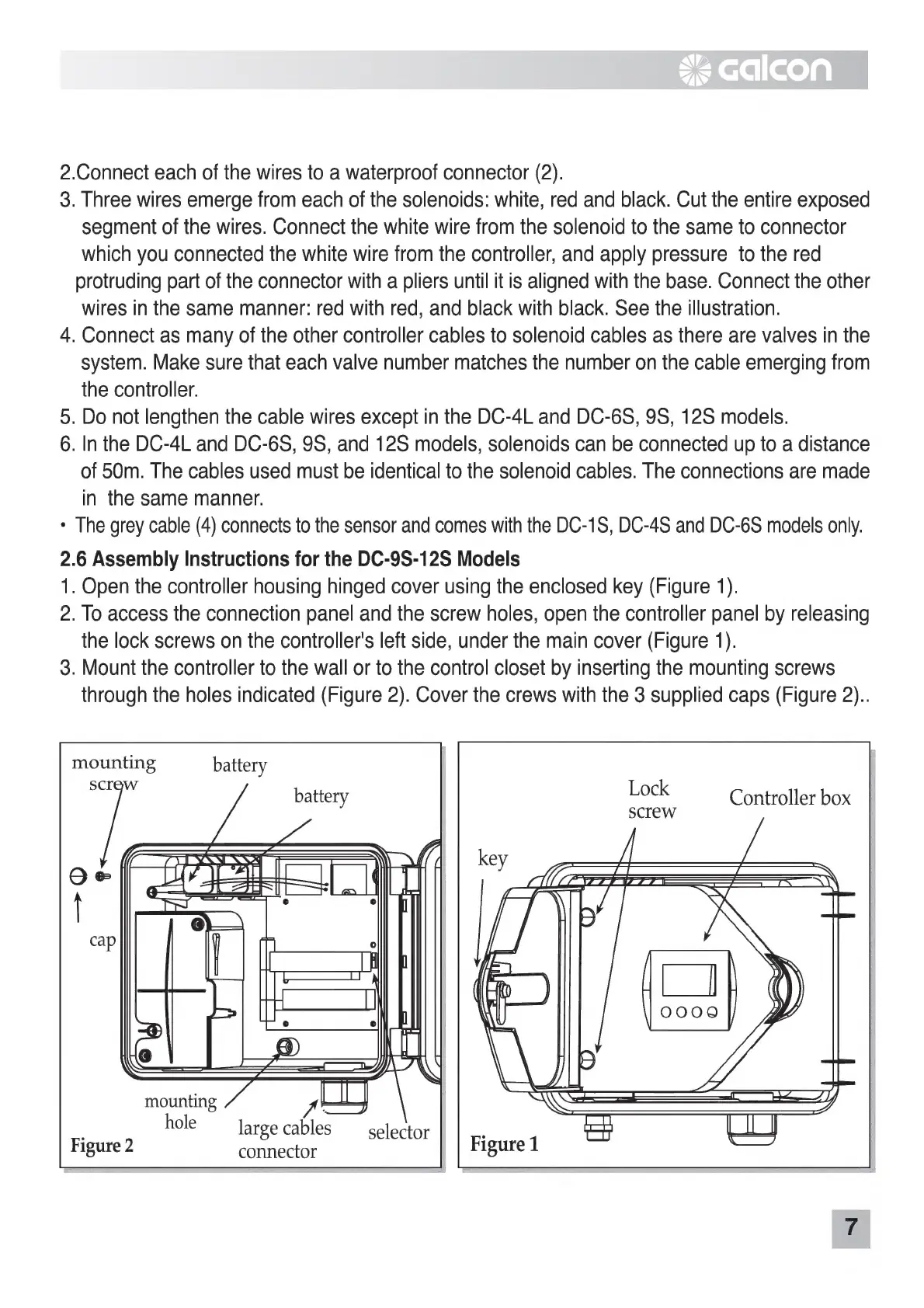

2.Connect each of the wires to a waterproof connector (2).
3. Three wires emerge from each of the solenoids: white, red and black. Cut the entire exposed
segment of the wires. Connect the white wire from the solenoid to the same to connector
which you connected the white wire from the controller, and apply pressure to the red
protruding part of the connector with a pliers until it is aligned with the base. Connect the other
wires in the same manner: red with red, and black with black. See the illustration.
4. Connect as many of the other controller cables to solenoid cables as there are valves in the
system. Make sure that each valve number matches the number on the cable emerging from
the controller.
5. Do not lengthen the cable wires except in the DC-4L and DC-6S, 9S, 12S models.
6. In the DC-4L and DC-6S, 9S, and 12S models, solenoids can be connected up to a distance
of 50m. The cables used must be identical to the solenoid cables. The connections are made
in the same manner.
* The grey cable (4) connects to the sensor and comes with the DC-1S, DC-4S and DC-6S models only.
2.6 Assembly Instructions for the DC-9S-12S Models
1. Open the controller housing hinged cover using the enclosed key (Figure 1).
2. To access the connection panel and the screw holes, open the controller panel by releasing
the lock screws on the controller's left side, under the main cover (Figure 1).
3. Mount the controller to the wall or to the control closet by inserting the mounting screws
through the holes indicated (Figure 2). Cover the crews with the 3 supplied caps (Figure 2)..
mounting battery
e battery Lock
Controller box
screw
mounting
hole
large
cables
selector
Figure
2
connector
