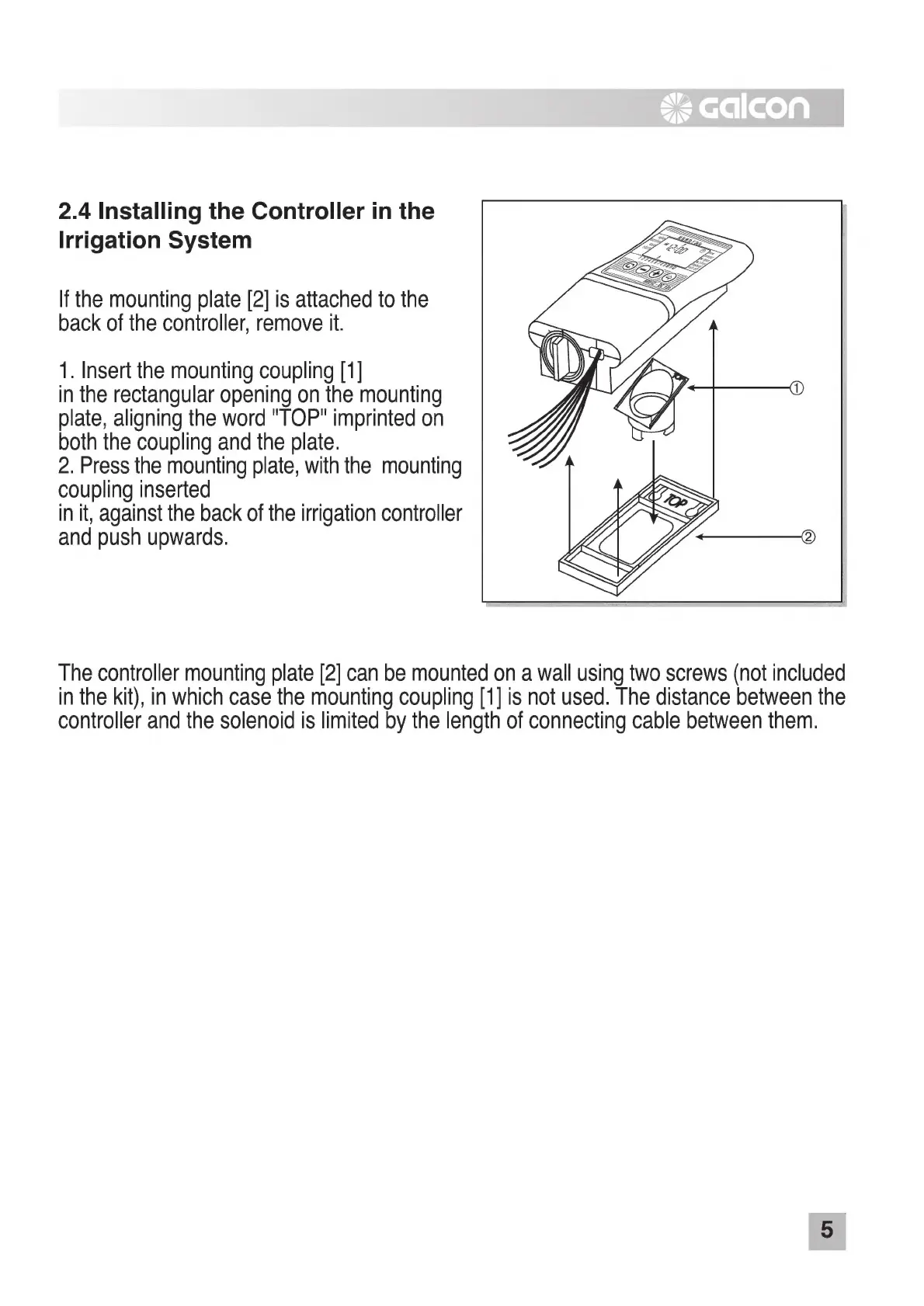

2.4 Installing the Controller in the
Irrigation System
lf the mounting plate [2] is attached to the
back of the controller, remove it.
1. Insert the mounting coupling [1]
in the rectangular opening on the mounting
plate, aligning the word "TOP" imprinted on
both the coupling and the plate.
2. Press the mounting plate, with the mounting
coupling inserted
in it, against the back of the irrigation controller
and push upwards.
The controller mounting plate [2] can be mounted on a wall using two screws (not included
in the kit), in which case the mounting coupling [1] is not used. The distance between the
controller and the solenoid is limited by the length of connecting cable between them.
