Galcon Dc-4 Installation And Operating Instructions

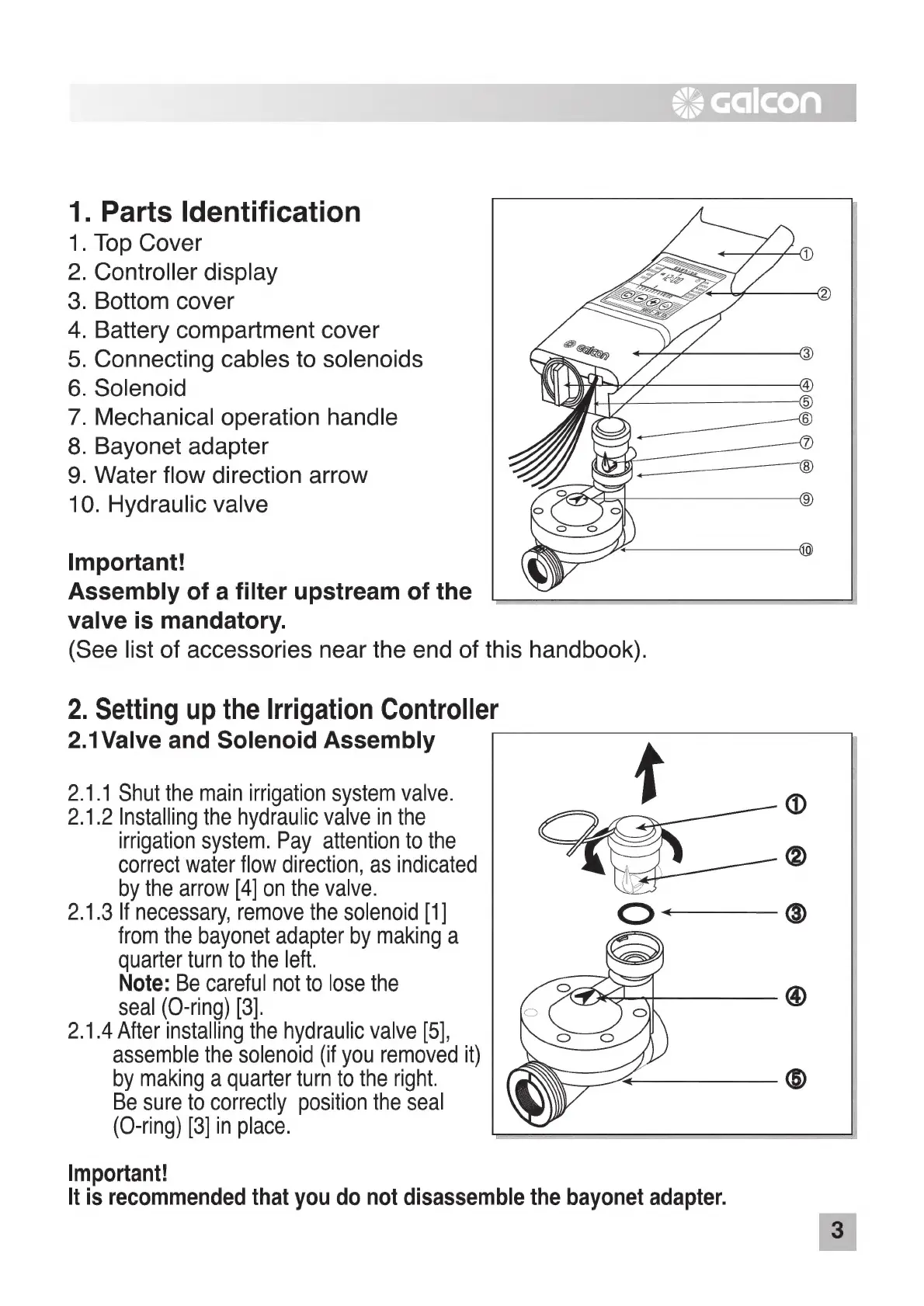

1. Parts Identification
1. Top Cover
2. Controller display
3. Bottom cover
4. Battery compartment cover
5. Connecting cables to solenoids
6. Solenoid
7. Mechanical operation handle
8. Bayonet adapter
9. Water flow direction arrow
10. Hydraulic valve
Important!
Assembly of a filter upstream of the
valve is mandatory.
(See list of accessories near the end of this handbook).
2. Setting up the Irrigation Controller
2.1Valve and Solenoid Assembly
.1.1 Shut the main irrigation system valve.
.1.2 Installing the hydraulic valve in the
irrigation system. Pay attention to the
correct water flow direction, as indicated
by the arrow [4] on the valve.
2.1.3 If necessary, remove the solenoid [1]
from the bayonet adapter by making a
quarter turn to the left.
Note: Be careful not to lose the
seal (O-ring) [3].
2.1.4 After installing the hydraulic valve [5],
assemble the solenoid (if you removed it)
by making a quarter turn to the right.
Be sure to correctly position the seal
(O-ring) [3] in place.
NO PO
Important!
It is recommended that you do not disassemble the bayonet adapter.
