Galcon Dc-4 Installation And Operating Instructions

4. Installing the batteries:
Install four 9V alkaline batteries.
Two batteries to the expansion connector.
Two batteries to the main connector.
Always install the batteries for the expansion connector first.

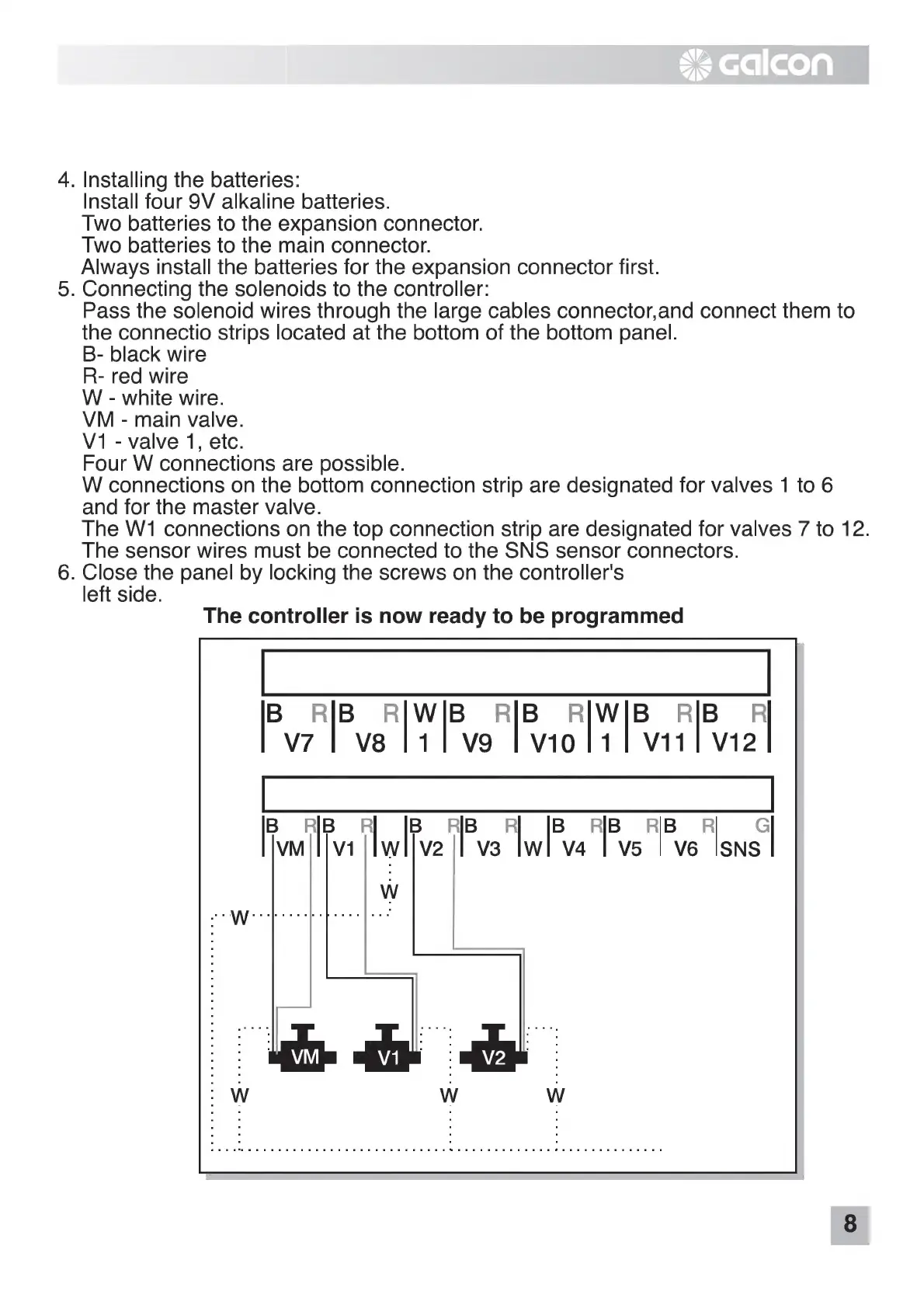

5. Connecting the solenoids to the controller:
Pass the solenoid wires through the large cables connector,and connect them to
the connectio strips located at the bottom of the bottom panel.
B- black wire
R- red wire
W - white wire.
VM - main valve.
V1 - valve 1, etc.
Four W connections are possible.
W connections on the bottom connection strip are designated for valves 1 to 6
and for the master valve.
The W1 connections on the top connection strip are designated for valves 7 to 12.
The sensor wires must be connected to the SNS sensor connectors.
6. Close the panel by locking the screws on the controller's
left side.
The controller is now ready to be programmed
F RIB aye RIB db be RIB R
V7
I
V8
|11
VƏ
I
V10
111
V11[
V12
RIB RB R
V3 IWI V4 I V5 | V6 ISNS
[wl V2 |
B iP
