Page 15 of 35

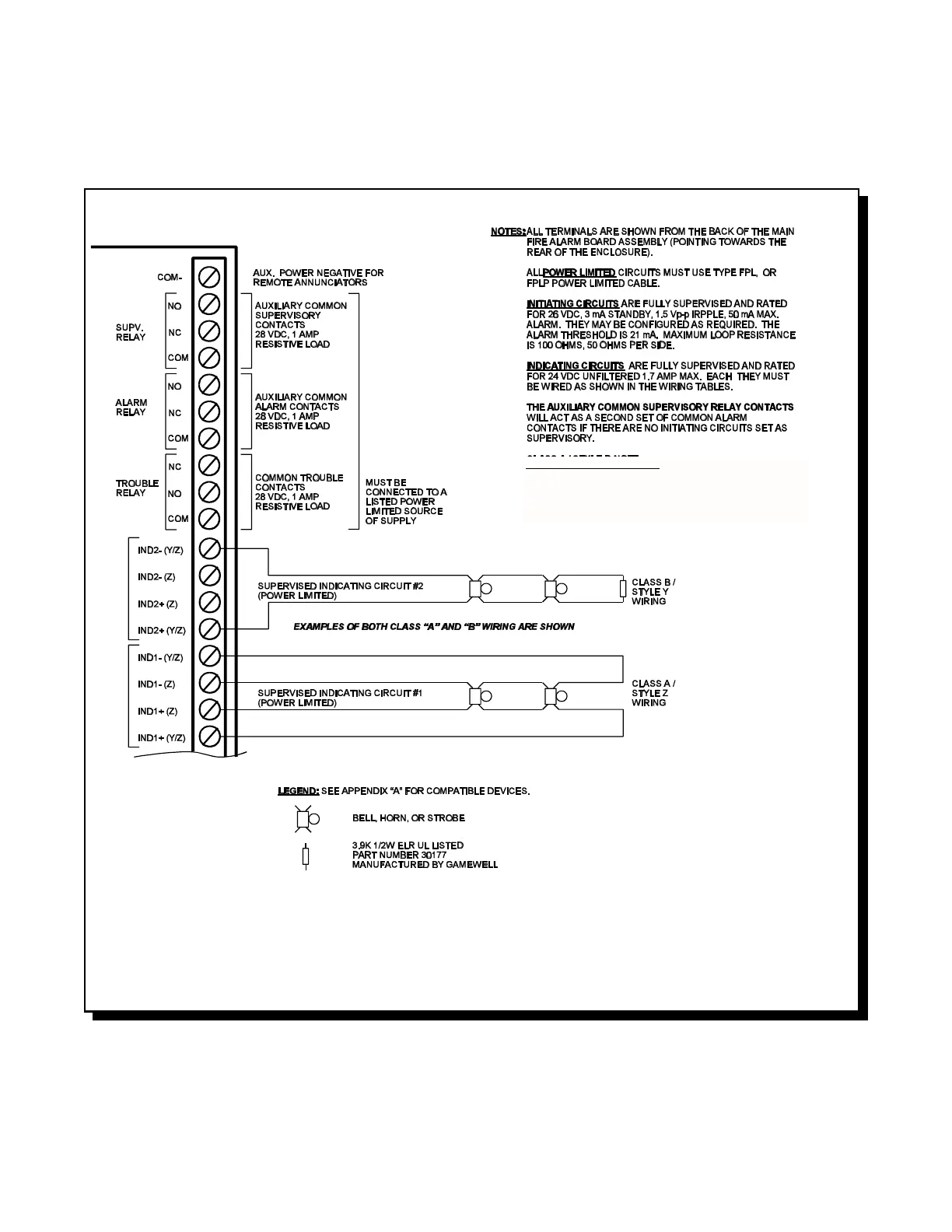

Fig.9: Main Fire Alarm Module Terminal Connections
CLASS A / STYLE D NOTE: INITIATING CIRCUITS MUST
ALL BE EITHER STYLE B OR D. IF STYLE D IS
SELECTED, THE NUMBER OF CIRCUITS IS CUT IN
HALF. (i.e. 2 ON A FLEX 4 AND 4 ON A FLEX 8)
7.2 MAIN FIRE ALARM MODULE TERMINAL CONNECTIONS
Wire devices to terminals as shown. See wiring tables and Appendix A for compatible devices and Appendix C for specifications.
Caution: Do not exceed power supply ratings: Total current for Indicating Circuits is 5 A max.
