Gamewell Flex 4 - Modules Mounting Locations

Page 9 of 35
(MODEL DACT)
DIALER MODULE
(MODEL PRM)
POLARITY REVERSAL AND
CITY TIE MODULE
M/F HEX SPACER
#6-32 x 7/8"
SCREW
#6-32 x 1/4"
DISPLAY
PLATE
BACKBOX
CIRCUIT
EXPANDER
MODULE
(CEM)
MAIN FIRE
ALARM
MODULE
RELAY MODULE
(NOTE 1)
NOTES:
1. RELAY MODULE MAY BE RY4 OR RY8
2. ONLY ONE OF DACT OR PRM MAY BE INSTALLED

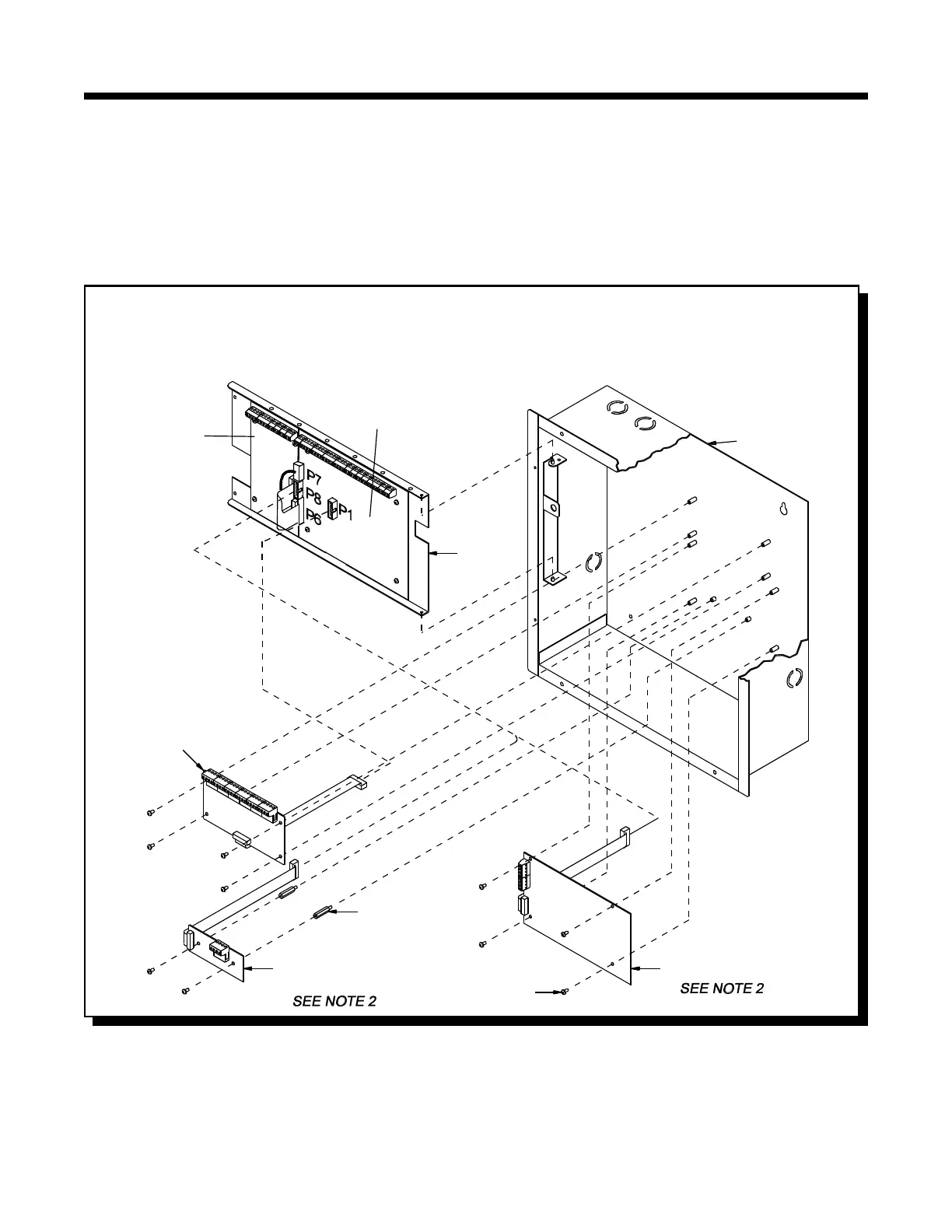

Fig.2: Flex 4 & Flex 8 Module Mounting Locations
5.0 MODULES MOUNTING LOCATIONS
The Flex 4 and Flex 8 come pre-assembled with all components and boards, except for the following optional
modules; DACT, PRM, RY4, RY8 or the CEM when field installed to increase the circuits available with the Flex 4.
The modules are installed in the locations shown below.
Be sure to connect a solid Earth Ground (from building system ground / to a cold water pipe) to the Chassis Earth
Ground Mounting Lug, and to connect the Earth Ground Wire Lugs from the Main Chassis to the ground screw on
the back box.
