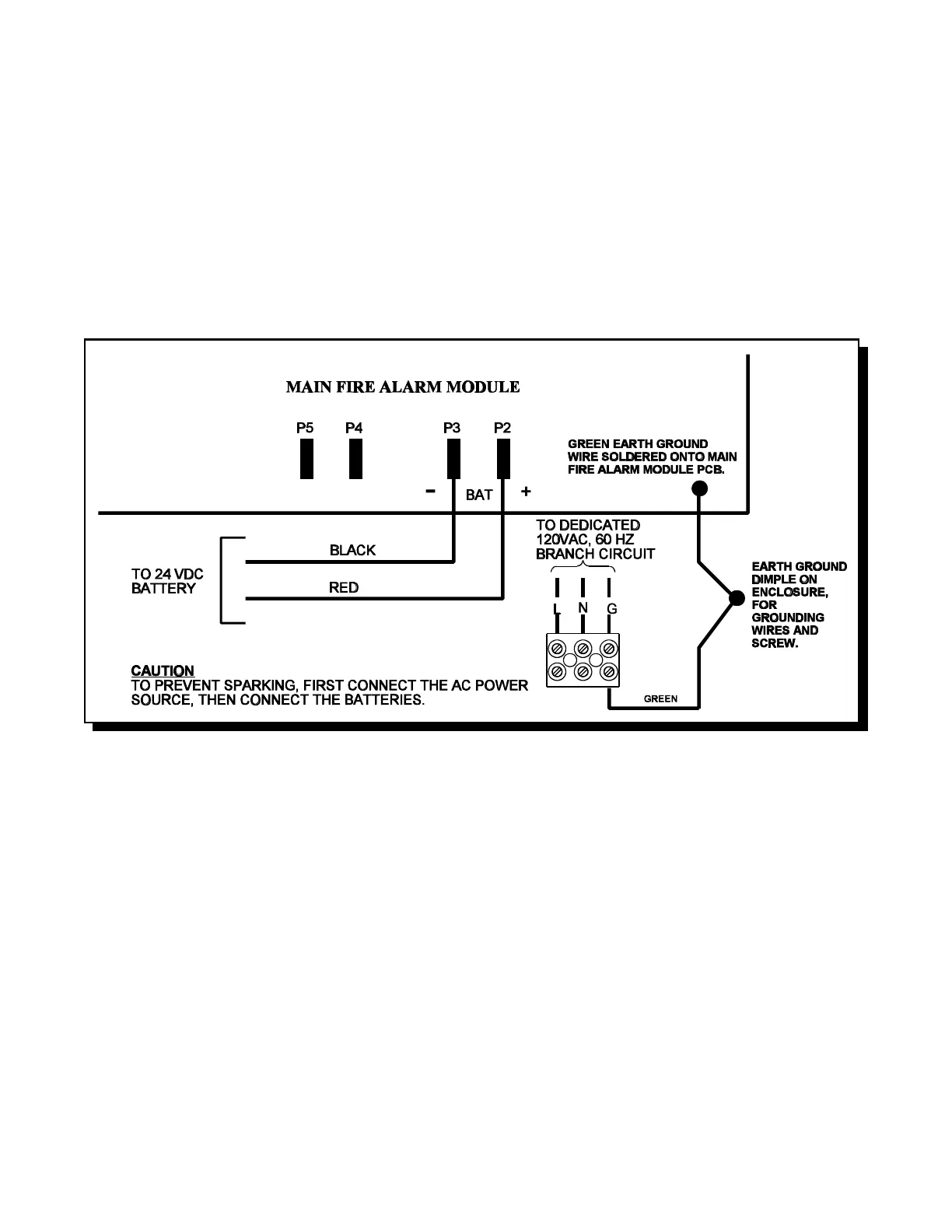

Fig.13: Power Supply Connections
7.7 POWER SUPPLY CONNECTIONS
The power supply is an integral part of the Main Fire Alarm Module and the Chassis. The ratings for the supply are:
Flex 4 and Flex 8:
Electrical input ratings: 120 VAC, 60 Hz, 2 A main primary circuit breaker
Power supply total current: 6 A maximum
Battery Fuse on Main Module: F1: Replace with 10 Amp, 1-1/4" Fast Acting Fuse
CAUTION: Do not exceed power supply ratings.
See appendix "C" for specifications. Wire as shown using proper wire gauges.
