Gamewell Flex 4 - Polarity Reversal and City Tie Module (PRM) Terminal Connections

To Next Page

To Previous Page

Page 19 of 35

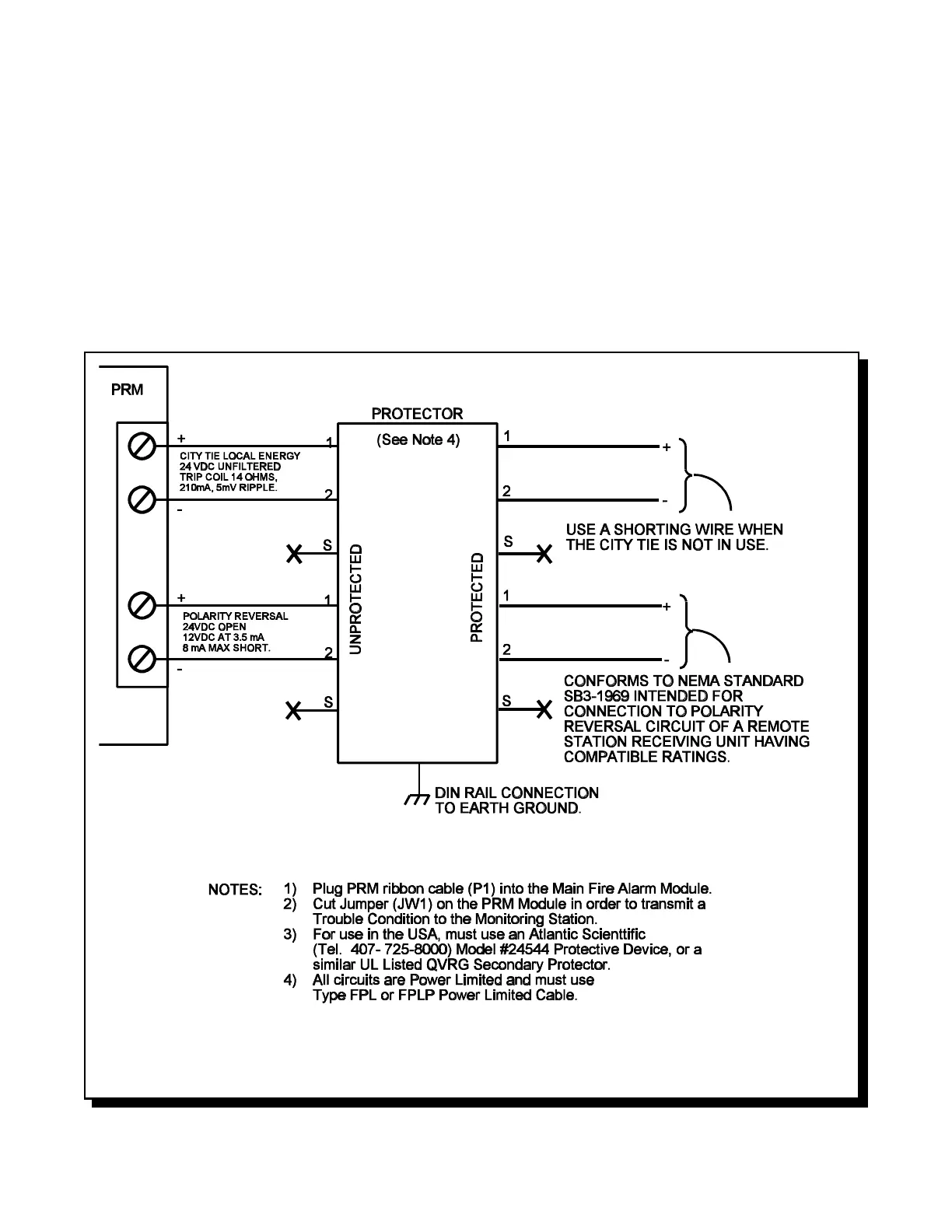

Fig.12: PRM Polarity Reversal and City Tie Module Terminal Connections

7.5 DACT / DIGITAL ALARM COMMUNICATOR MODULE TERMINAL CONNECTIONS

For DACT connection information, see the Installation Instruction Manual Part Number 71954-01.

7.6 POLARITY REVERSAL and CITY TIE MODULE (MODEL: PRM) TERMINAL CONNECTIONS

See Appendix for Module specifications. Wire as shown using proper wire gauges.

Note that for use in the USA, the installer MUST add an Atlantic Scientific (Tel. 407-725-8000) Model #24544

Protective Device, or a similar UL Listed QVRG Secondary Protector, as shown.

Note: The Terminal Blocks are “pluggable” for ease of wiring.

The City Tie Interface is Not Power Limited.

Either the City Tie or Reverse Polarity Interface may be used, but not both.
