7.4 RELAY MODULE (RY4 or RY8) TERMINAL CONNECTIONS
Note that only Relays #1 to #4 are present on the RY4.

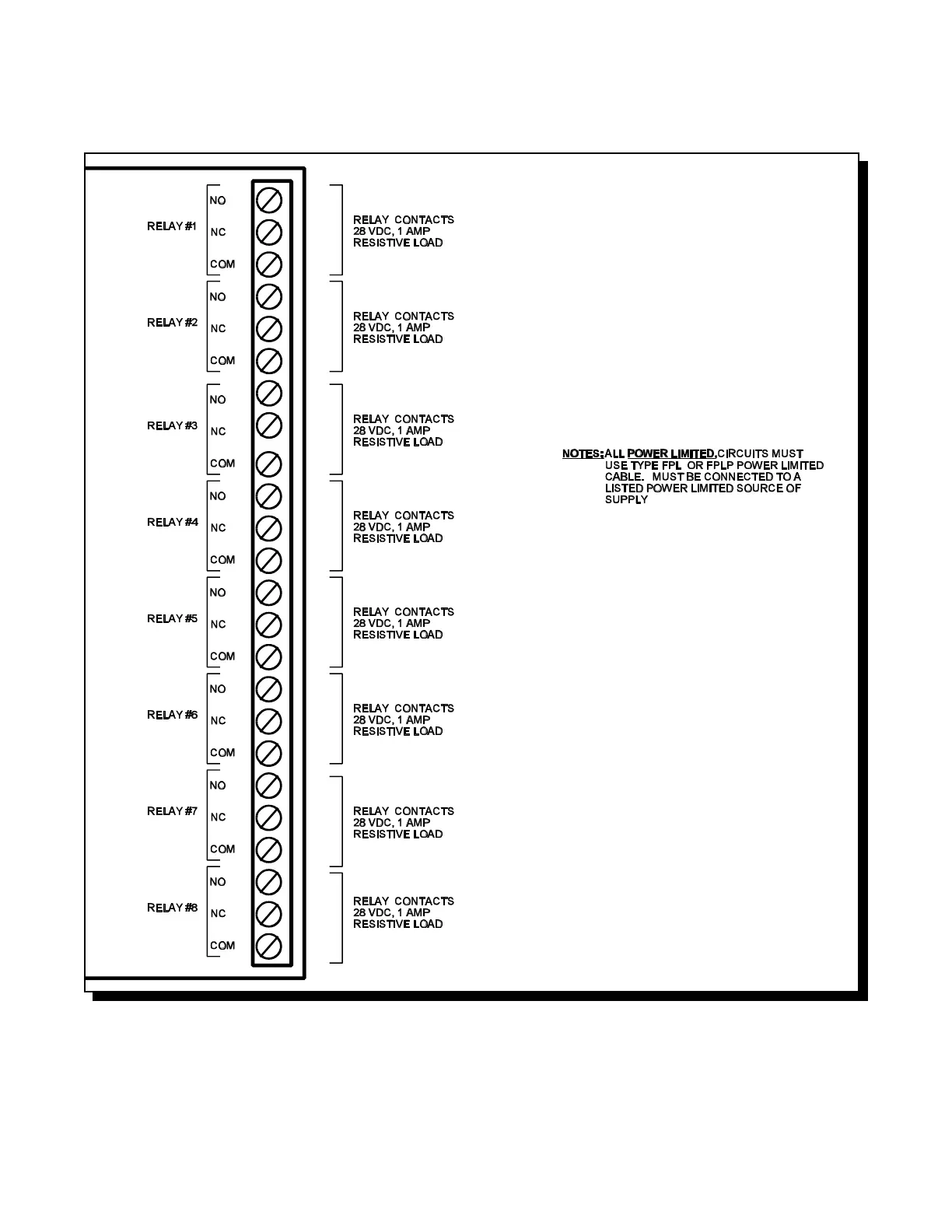

Fig.11: RY4 / RY8 Relay Terminal Connections
