Console module »DP-HR-CON-MC4«
Computer and console modules (DP-HR) · 106

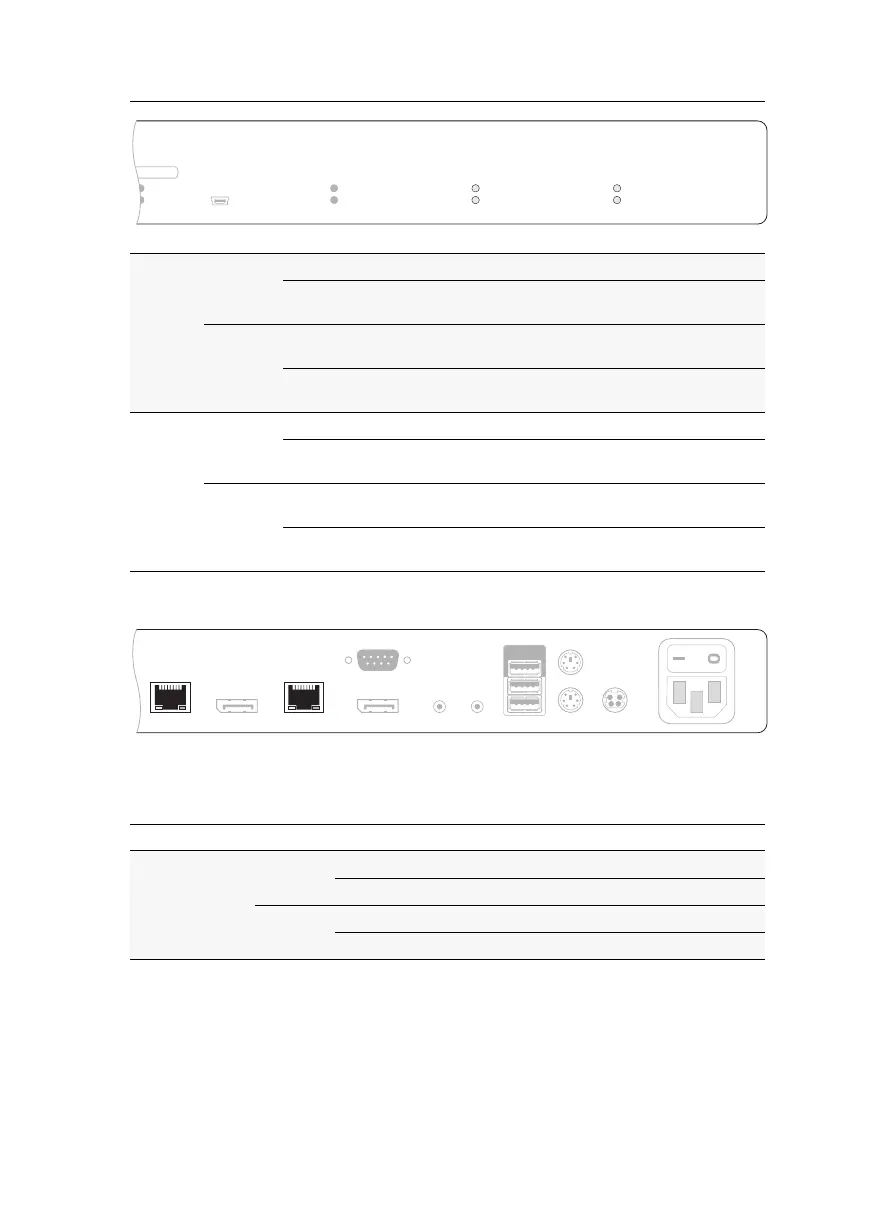

Back panel
The Transmission interfaces at the console module’s back panel provide additional
status LEDs.
MC3 Video 3 On Strong video signal atthird video input.
Off No signal at third video input, or the signal quality is too weak
to be processed by the system.
Trans. 3 On The communication to the counterpart is established
successfully.
Off The communication to the counterpart could not be
established.
MC4 Video 4 On Strong video signal at fourth video input.
Off No signal at fourth video input, or the signal quality is too weak
to be processed by the system.
Trans. 4 On The communication to the counterpart is established
successfully.
Off The communication to the counterpart could not be
established.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart.
Flashing Data connection to the counterpart established.
Green Off No user is logged in at the console module.
On A user is logged in at the console module.
Video 2
Trans. 2
Service
Video 1
K/M
Console
Video 3
Trans. 3
Video 4
Trans. 4
Micro In
Speaker
Keyb./Mouse
Generic
Main Power
Red. Power
Mouse
Keyb.
Transmission 2
DisplayPort Out 2
Transmission 1
LED Out
DisplayPort Out 1
