Console module »DP-HR-CON-MC4«

107 · Computer and console modules (DP-HR)

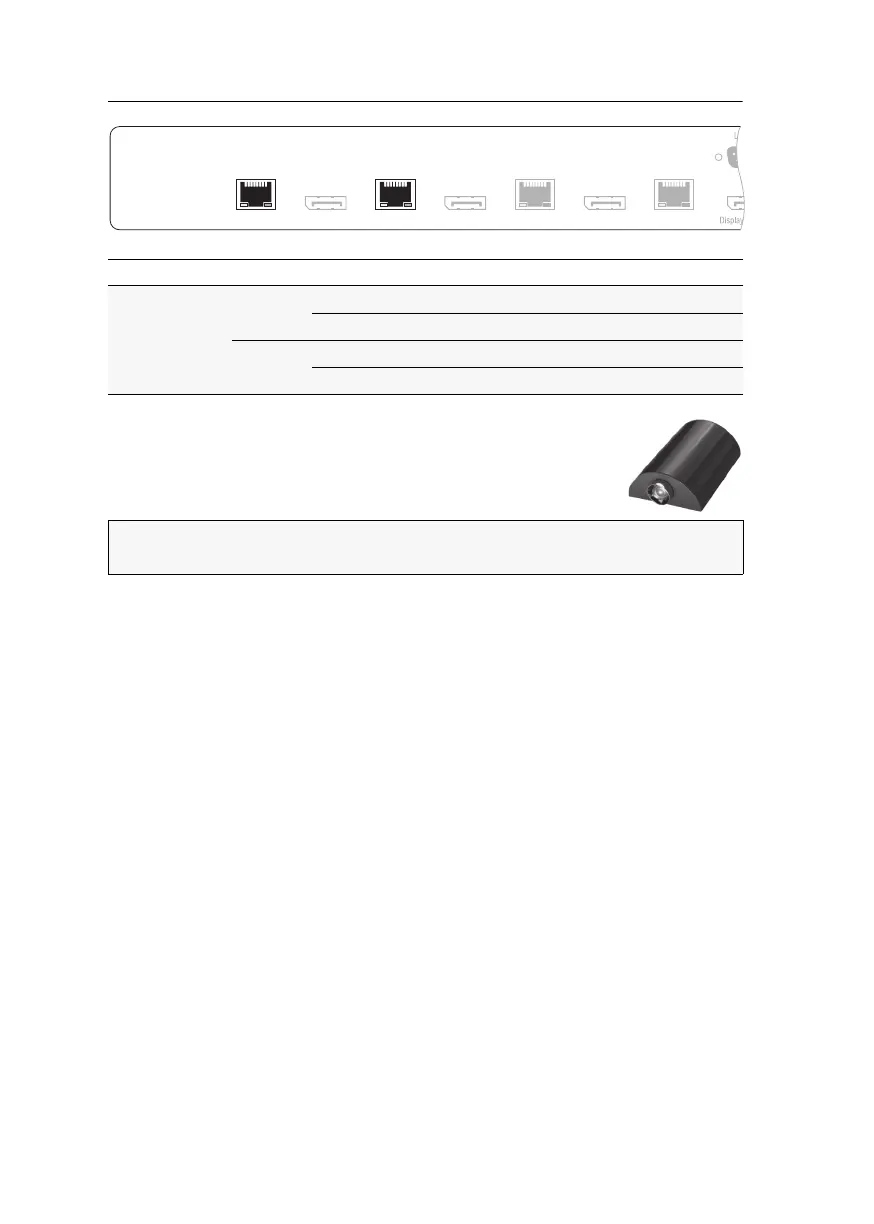

TradeSwitch-LED

The optionally available TS-LED (item number A6100041) flashes

when keyboard and mouse signals of a leader console are switched

to the console module.

Interface LED Status Meaning

Transmission Yellow Off No data connection to the counterpart.

Flashing Data connection to the counterpart established.

Green Off No user is logged in at the console module.

On A user is logged in at the console module.

NOTE:

Keyboard and mouse signals can only be switched to another console module

or computer if you purchased the TradeSwitch function for the

matrix switch.

Transmission 4

DisplayPort Out 4

Transmission 3

DisplayPort Out 3

Transmission 2

DisplayPort Out 2

Transmission 1
