Console module »DP-HR-CON-Fiber-MC2«
Computer and console modules (DP-HR) · 128
Power supply
Main Power: Connect the supplied power cable. Insert the cable’s Schuko plug in a
power socket.
Red. Power: Connect the connection cable of a compatible power pack to provide the
console module with a second, redundant power supply.
Startup
Turn on the console module after its installation.
Use the Main Power power pack or a redundant power pack to establish the power
supply:
Turn on the Main Power power pack.
Use an optional power pack to supply the Red. Power socket with power.
Automatic channel grouping
When operating the console module for the first time, the matrix switch recognises the
main channel and the console module’s additional channel. The channels are auto
-
matically added to a channel group.
NOTE:
You can adjust any channel groups that were created automatically or
manually. More information about channel groups is given in the separate manu
-
als of the matrix switch web applications.

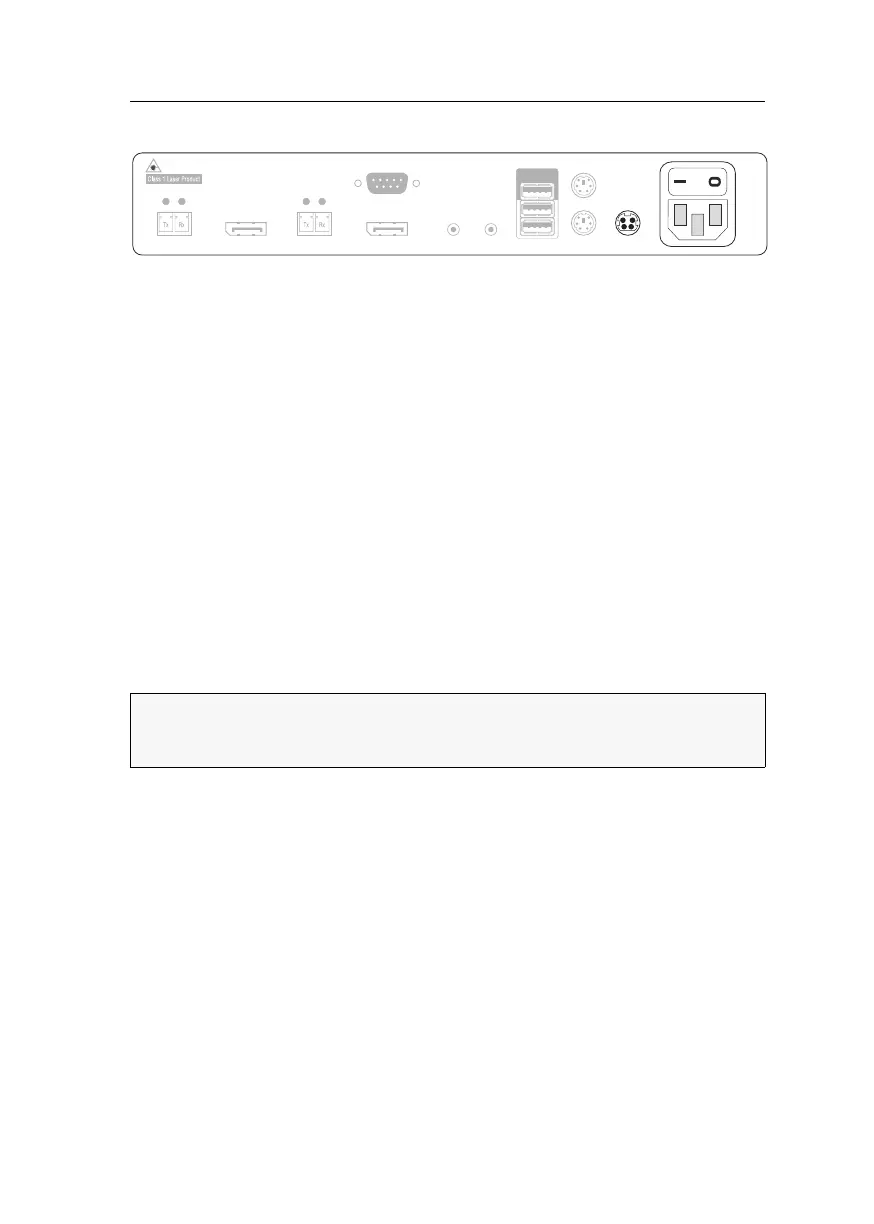

Micro In
Speaker
Keyb./Mouse
Generic
Main Power
Red. Power
Mouse
Keyb.
LED Out
DisplayPort Out 1DisplayPort Out 2
Transmission 2 Transmission 1
