Console module »DP-HR-CON-Fiber-MC2«
129 · Computer and console modules (DP-HR)
Status displays

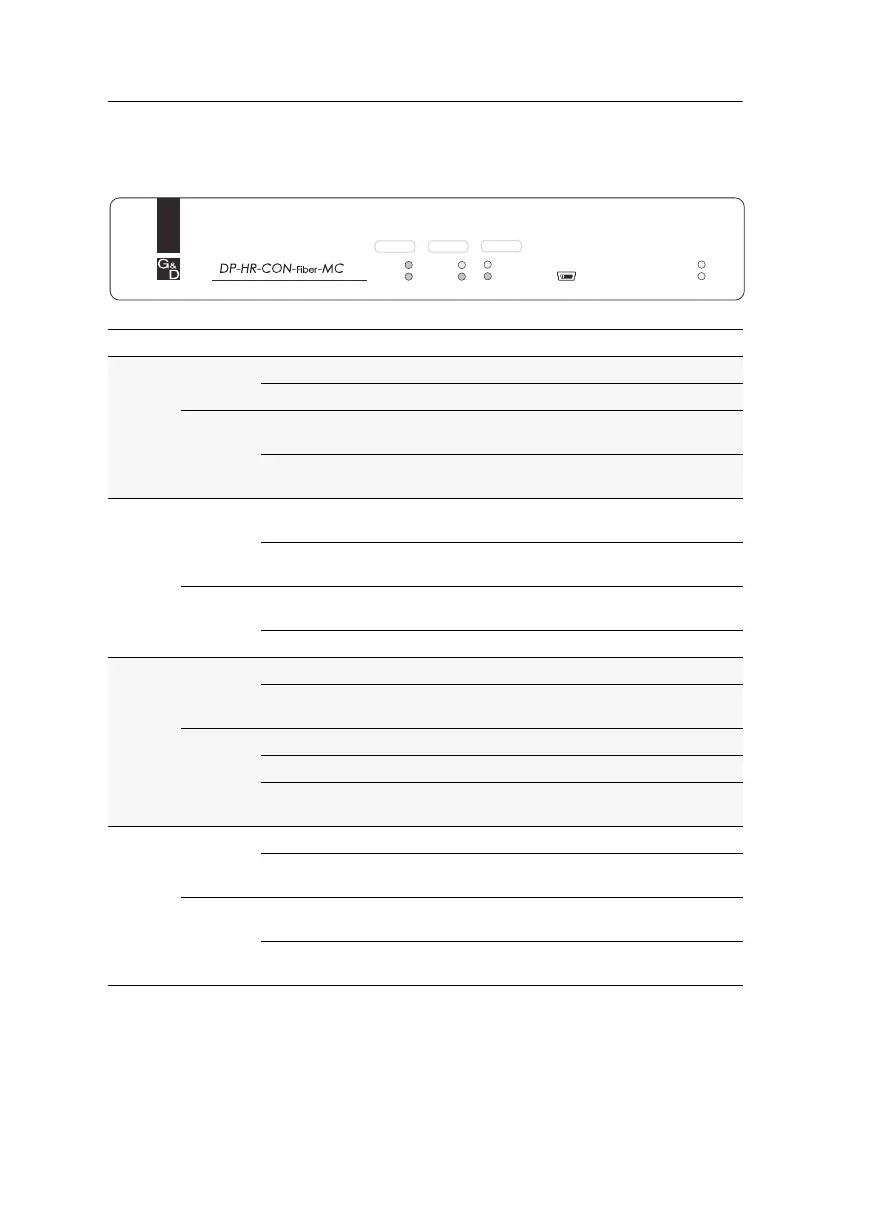

Front panel
Section LED Status Meaning
Power Red. On The optional power pack is connected and supplies 12 Volt.
Off The optional power pack is not (properly) connected.
Main On The power pack is turned on and supplies the required
voltage.
Off The power pack is turned off or the connection to the mains
could not be established.
Status Trans. On The communication to the counterpart is established
successfully.
Off The communication to the counterpart could not be
established.
System Flashing System is ready for operation or firmware update is
executed.
Off Internal error
Console Video On Strong video signal at video input.
Off No signal at video input, or the signal quality is too weak to
be processed by the system.
K/M On A local keyboard was detected.
Off No power at PS/2 interface or USB bus.
Flashing The CPU input (PS/2 or USB) is active and ready.
A local keyboard was not detected.
MC2 Video 2 On Strong video signal at second video input.
Off No signal at second video input, or the signal quality is too
weak to be processed by the system.
Trans. 2 On The communication to the counterpart is established
successfully.
Off The communication to the counterpart could not be
established.
Trans. 1
Status
Main
Red.
Power
Video 1
K/M
Service
Console
Video 2
Trans. 2
System
