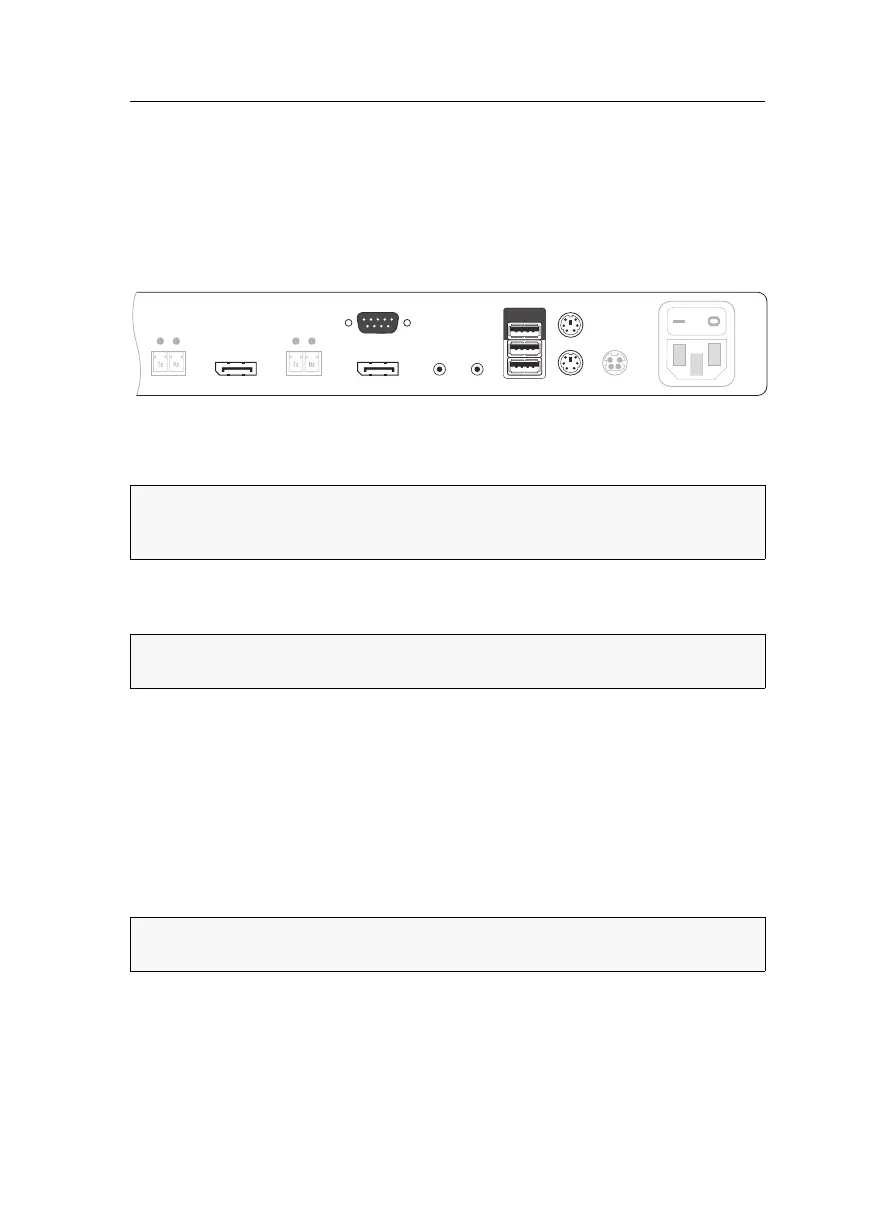

Console module »DP-HR-CON-Fiber-MC4«
Computer and console modules (DP-HR) · 134
Required accessories
4 × Compatible optical fibre cable to connect the console module to a
KVM matrix switch
Installation
Connecting the console devices
DisplayPort Out 1: Connect the first console monitor.
DisplayPort Out 2: Connect the second console monitor.
Micro In: Connect the console microphone (optional).
Speaker: Connect the console speakers (optional).
Keyb.: Connect the console PS/2 keyboard.
Mouse: Connect the console PS/2 mouse.
Keyb./Mouse: Connect the console USB keyboard and/or USB mouse.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
Enable the Generic HID mode (see page 177 f.) if you want to connect another USB
input device. In this mode, data of the USB input device remains unaltered when
transmitted to the active computer module.
LED Out: If you purchased and added the TradeSwitch feature to the matrix switch, con-
nect the optional TS-LED2 here (order number A6100041).
NOTE:
Check the monitor's manuals if the OSDs provide a setting for the mode of
the DisplayPort input. If so, select the mode in which the image data is processed
according to the standard DisplayPort 1.1.
NOTE:
Console keyboard and console mouse can be connected to the
console
module’s USB or PS/2 interfaces.
IMPORTANT:
With enabled Generic HID mode, it is not possible to operate the OSD
with a keyboard connected to the
Generic socket.
Keyb./Mouse
Generic
Main Power
Micro In Red. Power
Speaker
Mouse
Keyb.
DisplayPort Out 2
LED Out
DisplayPort Out 1
Transmission 2 Transmission 1
