Console module »DP-HR-CON-Fiber-DH«
165 · Computer and console modules (DP-HR)

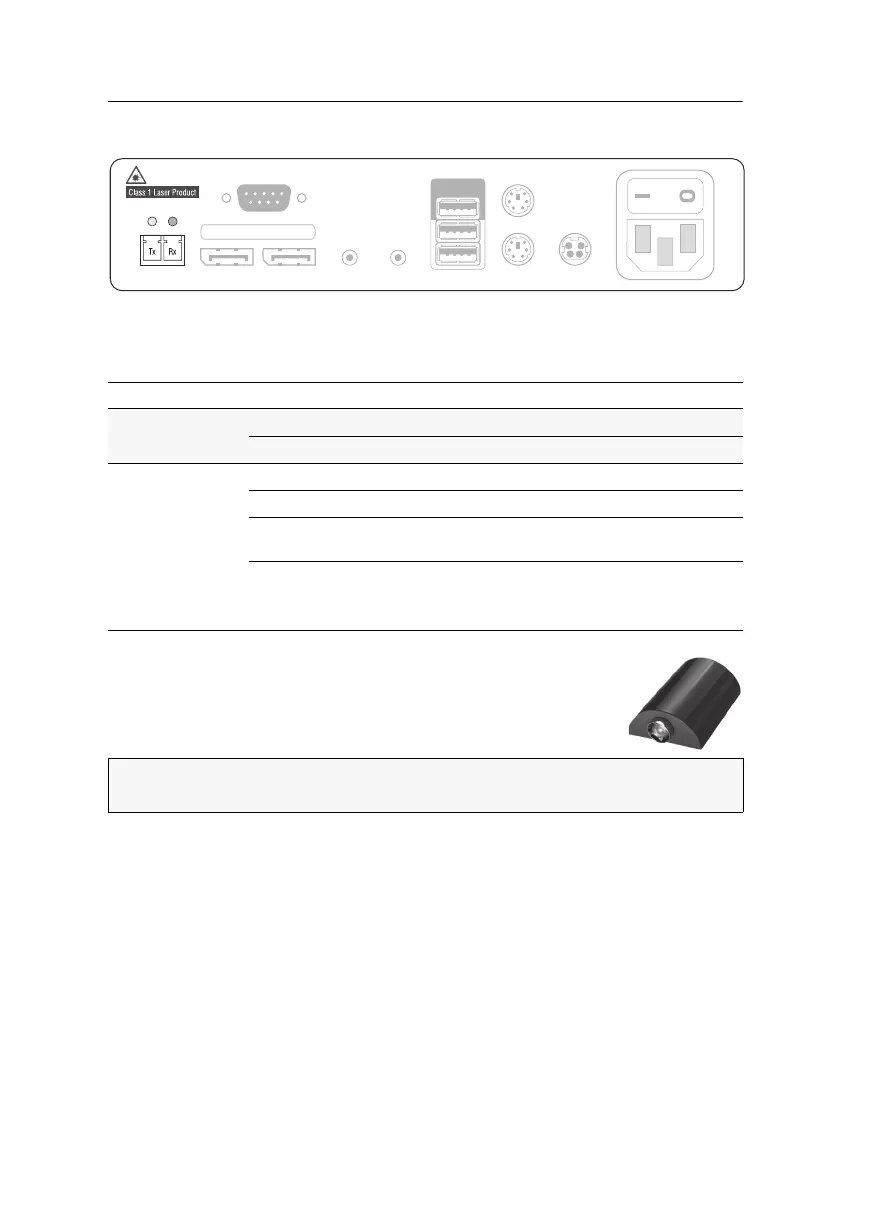

Back panel
The Transmission interfaces at the console module’s back panel provide additional
status LEDs.
TradeSwitch-LED
The optionally available TS-LED (item number A6100041) flashes
when keyboard and mouse signals of a leader console are switched
to the console module.
LED Colour Status Meaning
Left Yellow Off No connection to network.
Blinking Network connection to an end device.
Right Green On A console module is accessing the computer module.
Blinking No communication with the counterpart.
Flashing Connection to the counterpart station established.
No console module is accessing.
Flickering Keyboard and mouse inputs are forwarded by the accessing
console module.
The flickering is defined by the user’s entries.
NOTE:
Keyboard and mouse signals can only be switched to another console module
or computer if you purchased the TradeSwitch function for the
matrix switch.
Micro In
Speaker Keyb./Mouse
Generic
Main Power
Red. Power
LED Out Mouse
Keyb.
DisplayPort
Out 1 Out 2
Transmission
