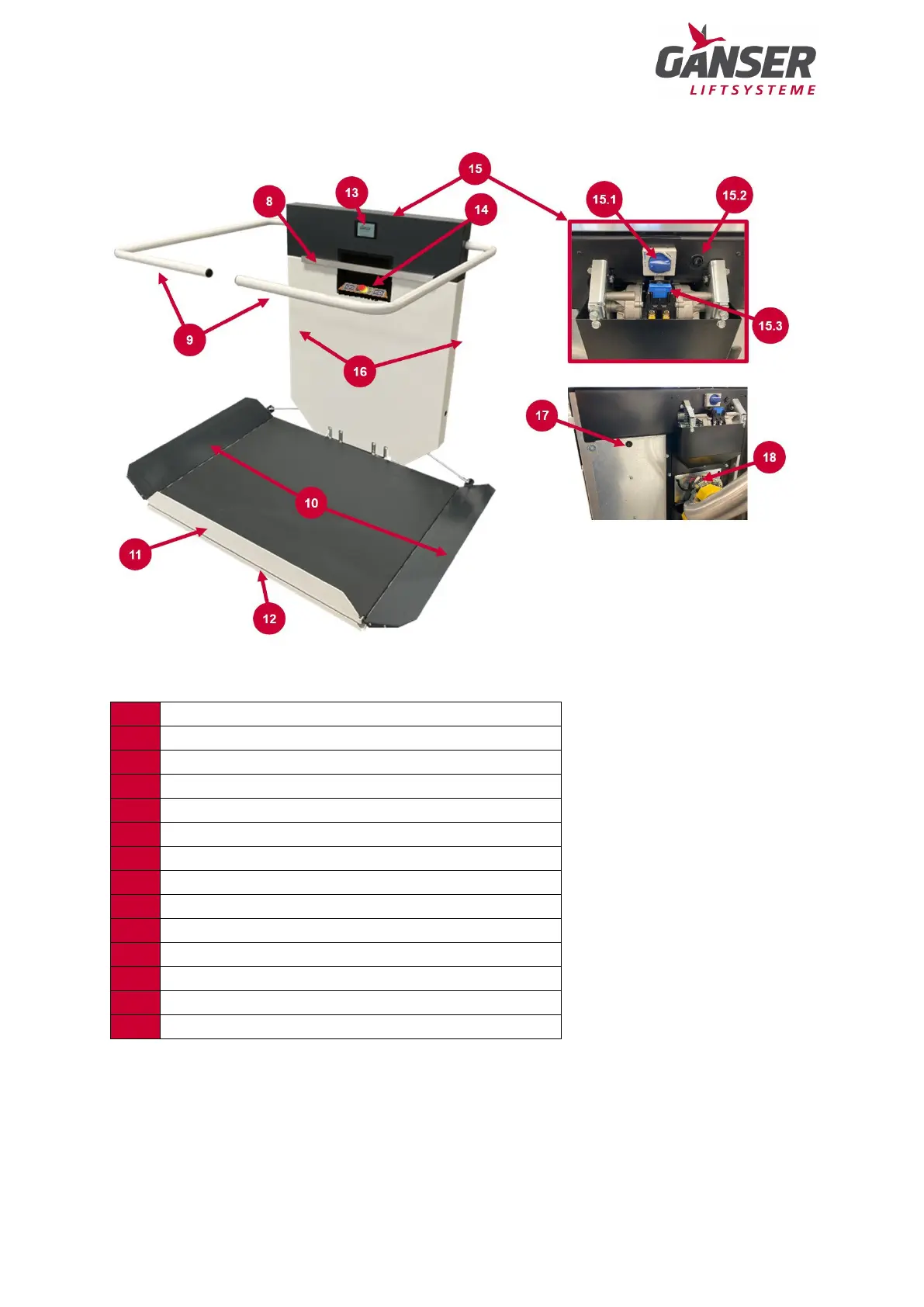

GANSER LIFTSYSTEME GTLE - Platform Stairlift Structure; Figure 5: Stairlift Structure; Table 2: Platform Stairlift Structure

GTLE Operating Manual Version 1.2 Page 9 of 35
Figure
5: Stairlift structure
6.2. Platform stairlift structure
8
Handle
9
Safety barrier
10
Access ramp
11
Roll-off plate, front drive-on ramp (optional)
12
Contact base
13
Intelligent display
14
Control on the lift
15
Service access (rear)
15.1
Main switch
15.2
Platform emergency opening
15.3
Main battery fuse
16
Side switch-off
17
Reset button
18
Safety catch
Table 2: Platform stairlift structure
