HDD, DVD-RW CONNECTION

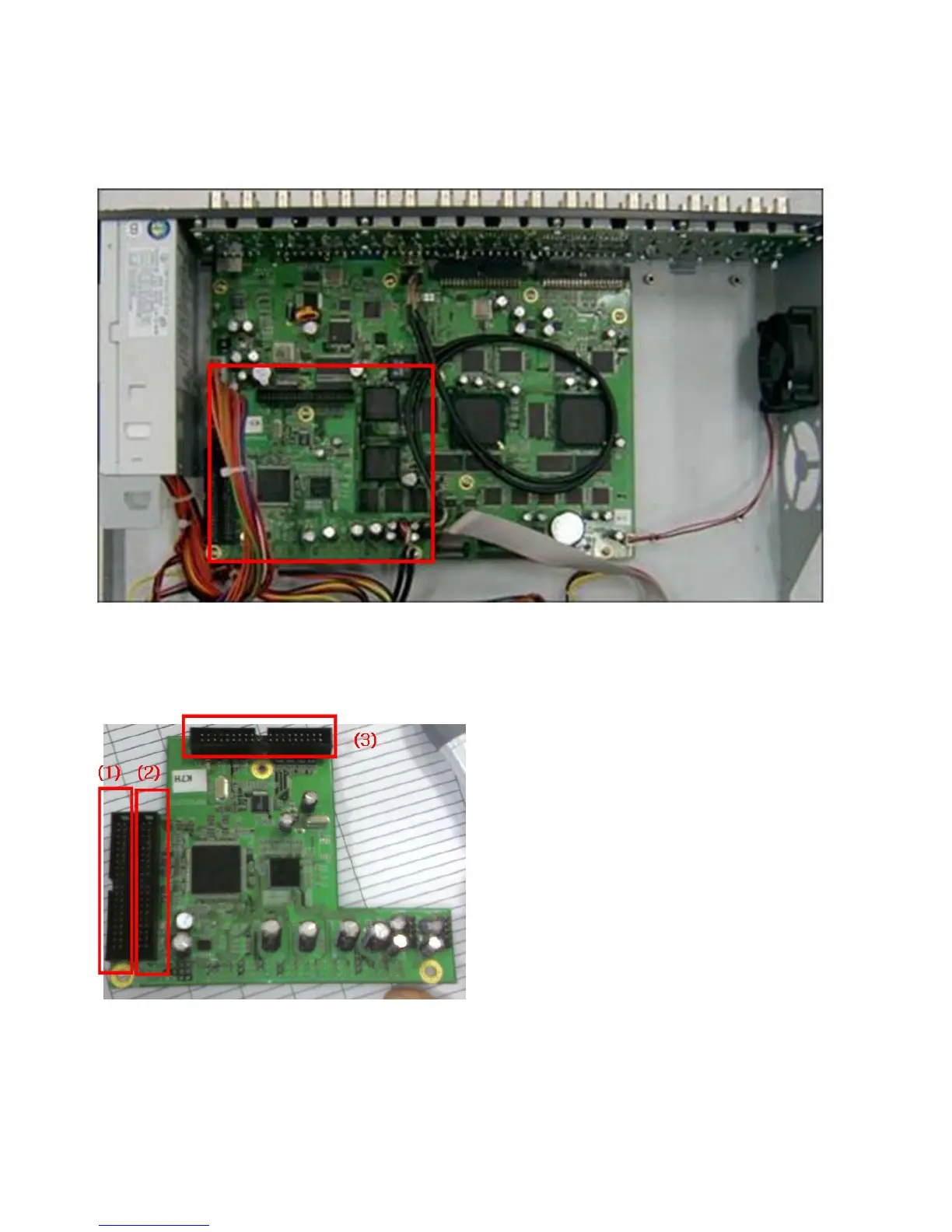

Above is the mainboard picture after opening the top cover.
The connection board is in red box
(1) is the port for system disk(master disk). Install the first HDD at this port. (HDD
jumper location should be “Master”).
(2) is also the port to connect additional HDD.
(3) is the port for DVD-RW only. Incase the HDD is connected at this port, HDD would not recognized
