GAPOSA QCzero - Wiring Diagram Connection

20
QCzero
QCzeroP

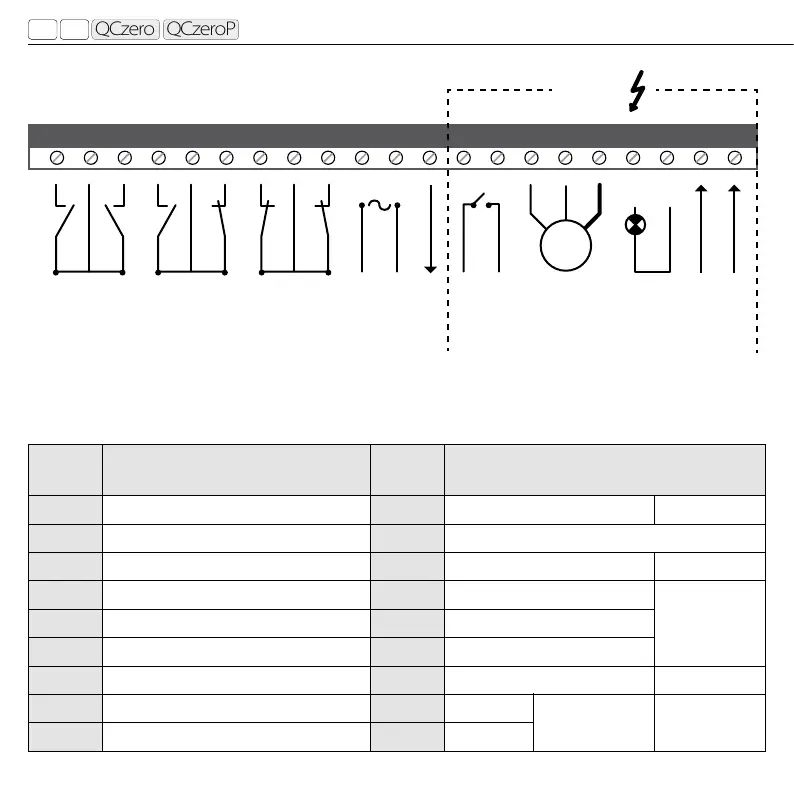

WIRING DIAGRAM CONNECTION*
*The control unit is provided along with three bridges to be used in case no safety beams and edges (Note: only when
required by law) or stop buttons are installed in the following connectors:
- Stop connectors 5-6;
- Safety edge connectors 7-8 (with dip 4 in OFF position);
- Safety beam connectors 8-9.
1 2 3 4 5 6 7 8 9 10 12 13 14 15
M
16 17 18 19 20 21
UP
START/ STOP
EDGE COM COM COM FLASH DOWN STOP PHOTO MAX 40 W TEST
24 Vac AUX
230 V~
230Vac
50-60Hz
C
L N
11
CONNEC-
TION
TERMINALS
DESCRIPTION
CONNEC-
TION
TERMINALS
DESCRIPTION
1
UP - N.O.
10-11
SAFETY BEAMS’ POWER SUPPLY 24V~ / 140 mA
2
COM
12
TEST - SAFETY BEAM’S TEST
3
DOWN - N.O.
13-14
AUX - COURTESY LIGHT - N. O. MAX 250V~ / 5A
4
START/STOP - N.O.
15
MOTOR
230V~ / max 500W
5
COM
16
MOTOR
6
STOP - N.C.
17
MOTOR COMMON
7
EDGE
18-19
FLASH - FLASHING LIGHT INTERMIT. 230V~ / max 40W
8
COM
20
L - PHASE
230V~ / 50/60 Hz
9
PHOTO - N.C.
21
N - NEUTRAL
POWER SUPPLY
