29

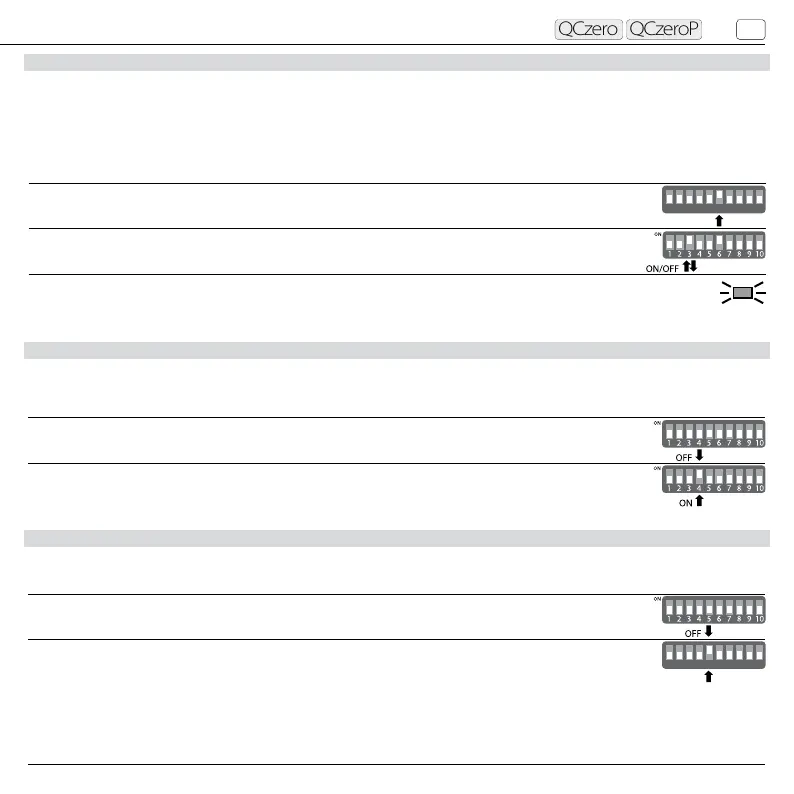

4.3 ACTIVATION OF THE SAFETY BEAMS’ TEST
The safety beam test gives the possibiltiy to the control unit to verify , before any operation, that there are no short circuits or
wrong activities dangerous for the functionality and safety of the system.
Hence this test grants the system’s safety even if a single damage occurs, as required by the norms EN13241-1 and EN12453.
When the control unit performs this test, the led test switches on for 1 sec. If errors are found, the motor doesn’t start and the
test led ashes 4 times.
4.4 SELECTION OF THE SAFETY EDGÉS TYPE
The control unit can control the activity of both the traditional edges with a normally closed contact and edges
with a 8,2 k resistive contact.
4.5 COURTESY LIGHT LOGIC
The courtesy light contact can have 2 working modalities:
OPERATIONS
1. Place in ON position the control unit’s dip 6.
2. Switch for at least 3 times the dip3 in ON and OFF
3. When the TEST led starts ashing, place the dip 3 and 6 in OFF position. Now the TEST is active.
If one wants to deactivate the TEST, then it is necessary to perform a total RESET of the control unit. (see page 24)
OPERATIONS
EDGE WITH NORMALLY CLOSED CONTACT (place the dip4 in OFF position).
EDGE WITH 8,2k RESISTIVE CONTACT (place the dip4 in ON position).
LOGIC DESCRIPTION
Ignition after every opening with automatic switching o after 3
minutes. For this logic place the dip 5 in OFF position.
Ignition control (2 sec.) after every opening for managing a lighting system.
For this logic place the dip 5 in ON position.
ON
ON
1 2 3 4 5 6 7 8 9 10
ON
ON
1 2 3 4 5 6 7 8 9 10
Control unit with integrated receiver
EN
ON
TEST
