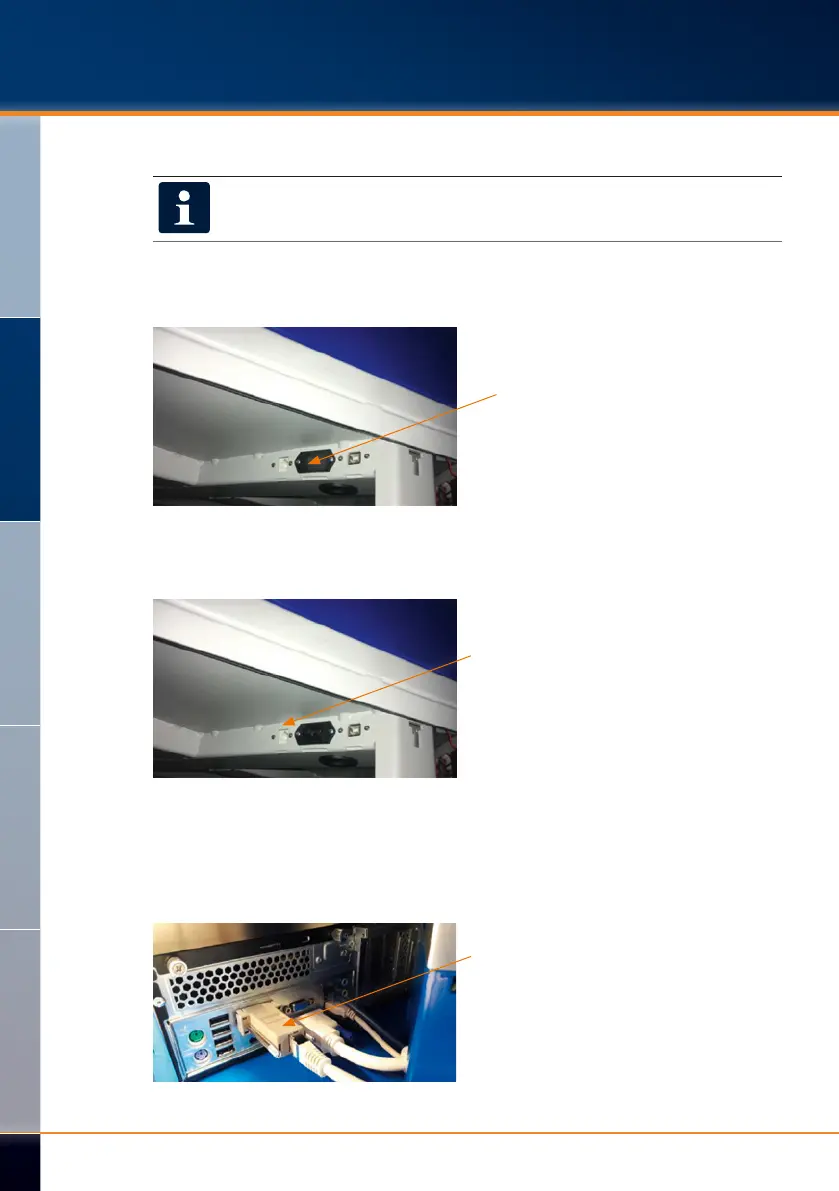

6.2.2 Connection of slave system
Connection of individual cabinets
First, the cabinets of the Tool24 PickOne goods issue system must be positioned
next to each other.
Connection of power supply
Connect up the country-specific power cable with adapter as per IEC 60320
C13.
Power connection
Connection of communication cable
For a slave system, the RJ45 connection acts as the interface to the PC of the
master system.
RJ45 connection
Connection of the system
Communication between the master and slave takes place by means of an
RS232 interface. A communica-tion cable (patch cable) is connected from
the RJ45 connection of the slave system to the COM port (DB9 socket) of
the computer on the master system by means of an adapter (DB9 to RJ45).
