GARANT Tool24 PickOne - Control Unit

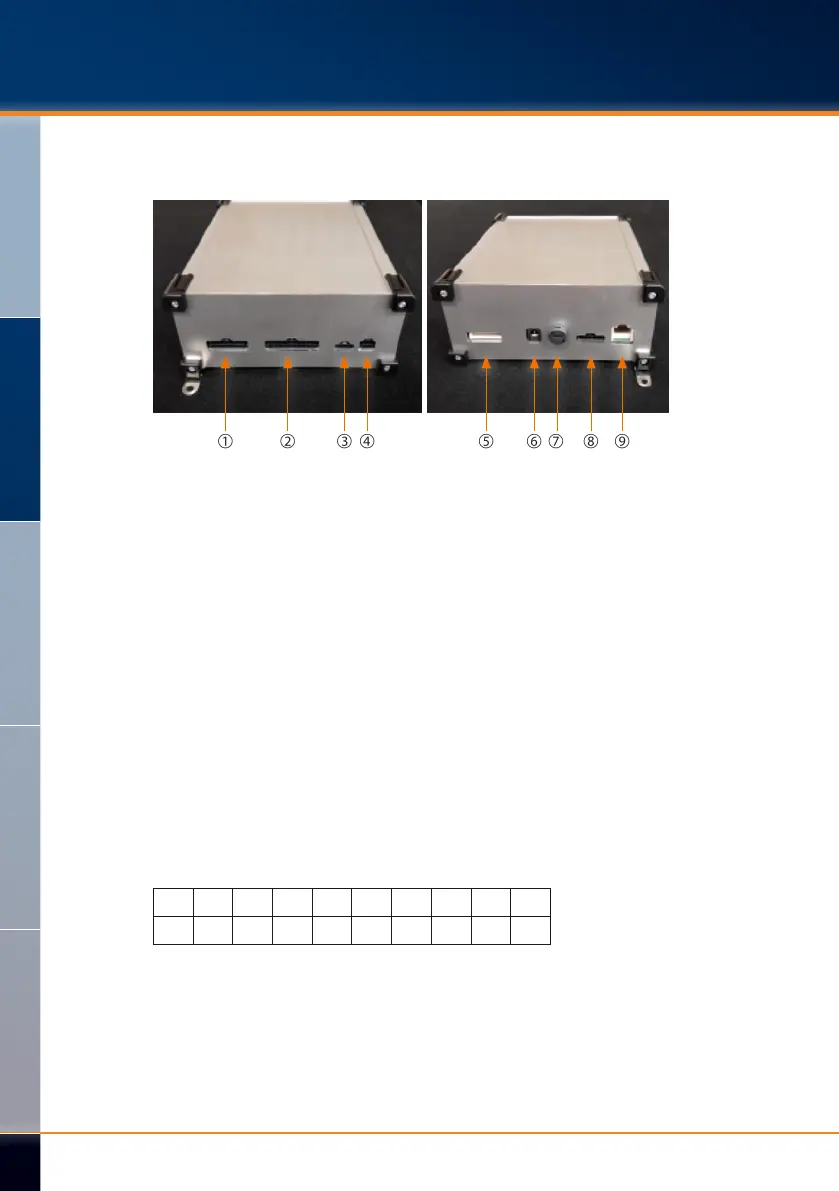

4.3.2 Control unit
Connector assignment
➈➀ ➁ ➂ ➃ ➅➄ ➇➆
➀ Cable harness (14-pin)
➁ Cable harness (20-pin)
➂ Position sensor (inductive)
➃ Protective door switch
➄ Drive motor
➅ Power supply (24 V)
➆ Fuse (F 2A)
➇ Encoder
➈ RS232 communication cable
Pin assignment
20-pin cable harness
Magnet 18 Magnet 16 Magnet 14 Magnet 12 Magnet 10 Magnet 8 Magnet 6 Magnet 4 Magnet 2
20 18 16 14 12 10 8 6 4 2
19 17 15 13 11 9 7 5 3 1
Magnet 17 Magnet 15 Magnet 13 Magnet 11
Magnet 9 Magnet 7 Magnet 5 Magnet 3 Magnet 1
+ 24 V
DE
EN
FR
IT
ES
