37-1-6
15 Page 12

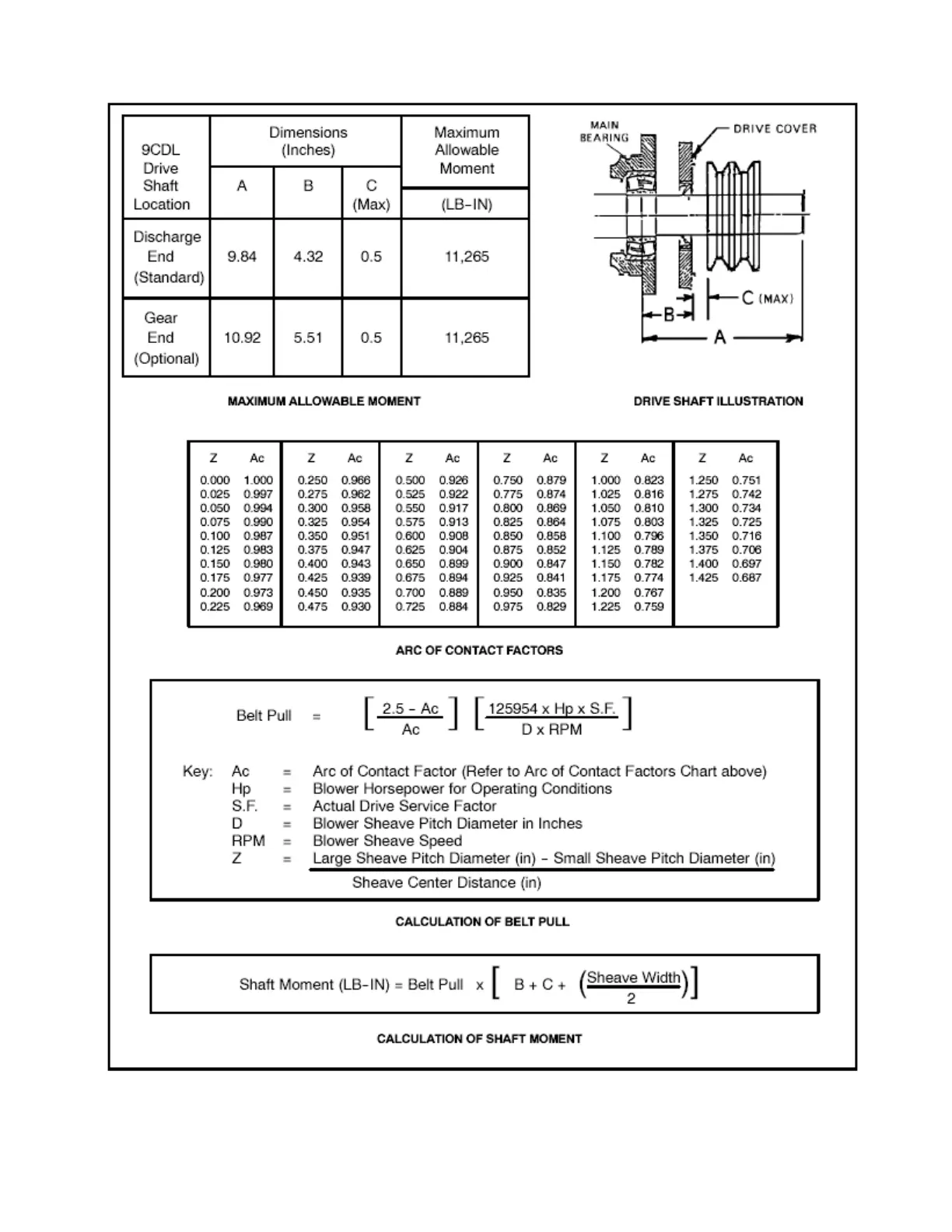

FIGURE 2-3
–
BELT DRIVE OVERHUN
G
LOAD CA
LCULA
T
IONS
12
14
Table of Contents
Maintain Blower Reliability and Performance
2
Foreword
3
Table of Contents
4
Index
5
List of Illustrations
6
Safety Precautions
7
Introduction Your Key to Trouble Free Service
8
Section 1 Equipment Check
8
Section 2 Installation
9
Figure 2-1 - Operating Principle
9
Figure 2-2 - Accessories and Safety Devices
10
Figure 2-3 - Belt Drive Overhung Load Calculations
13
Figure 2-4 - Outline Dimensions
16
Figure 2-5 - Outline Dimensions (Continued)
17
Section 3 Operation
18
Figure 3-1 - Maximum Rating
18
Figure 3-2 - Water Quality Requirements
19
Figure 3-3 - Liquid Rate
20
Figure 3-4- Inlet Water Injection Diagram
20
Figure 3-5 - Altitude - Pressure/Vacuum
21
Figure 3-6 - Minimum Speed, Maximum Pressure or Vacuum
22
Section 4 Maintenance
24
Figure 4-1 - Aeon Pd Synthetic Lubricant
24
Figure 4-2 - Synthetic Lubricant Chart
25
Figure 4-3 - Non-Synthetic Lubricant Chart
25
Figure 4-4 - Oil Bath Filter
27
Figure 4-5 - Oil Wetted Filter-Silencer
27
Figure 4-6 - Dry Type Filter and Filter-Silencer
28
Section 5 Parts List
30
Section 6 Disassembly Instructions
34
Figure 6-1 - Adaptor Plate
34
Figure 6-2 - Adaptor Plate
34
Figure 6-3- Spanner Wrench
34
Figure 6-4 - Adaptor Plates
34
Figure 6-5 - Puller
35
Figure 6-6 - Alternate Adaptor Plates
35
Figure 6-7 - Carrier Flange
36
Figure 6-8 - Bearing Clamp Plate Shim
36
Figure 6-9 - Puller
36
Section 7 Assembly Instructions
38
Figure 6-10 - Rotor Sling Removal
38
Figure 6-11 - Jack Screws
38
Figure 7-1 - Rotor Shaft Seals
39
Figure 7-2 - Bearing Spacers
39
Figure 7-3 - Discharge Opening
39
Figure 7-4 - Lower the Gate Rotor into the Housing Assembly
39
Figure 7-5 - Angular Contact Bearing Assembly
40
Figure 7-6 - Bearing Installation
40
Figure 7-7 - Discharge End Bearing Carrier
41
Figure 7-8 - Rotor End Clearnace Chart (Unit Cold)
41
Figure 7-9 - Depth Micrometer - Rotor Lobes
41
Figure 7-10 - Outside Micrometer - Thickness of Shims
41
Figure 7-11 - Discharge Opening & Dowel Pins
42
Figure 7-12 - Dial Indicator
42
Figure 7-13 - Seal Installation Guide
43
Figure 7-14 - Protective Installation Sleeves over each Shaft
43
Figure 7-15 - Micrometer - Thickness of Shaft Shim Set
44
Figure 7-16 - Shaft Extention
44
Figure 7-17 - Bearing Press Plates
45
Figure 7-18 - Bearing Clamp Plates
45
Figure 7-19 - Discharge Opening
45
Figure 7-20 - Reinforcing Plate
45
Figure 7-21 - End Cover Assembly
46
Figure 7-22 - Bearing Bore
47
Figure 7-23 - Depth Micrometer - Measure Distance to End of Bearing Spacer Assembly
47
Figure 7-24 - Oil Seal on Gate Rotor Shaft Assembly
47
Figure 7-25 - Slide Shims over the Shafts Assembly
47
Figure 7-26 - Press Plate and Jack Screw Assembly
48
Figure 7-27 - Install Hub & Pinion Pull Tight with Locking Device Assembly
48
Figure 7-28 - Mount Indicator and Button Bracket Assembly
48
Figure 7-29 - Smallest Minus Reading
49
Figure 7-30 - Smallest Plus Reading
49
Figure 7-31 - Setting the Interlobe Clearance
49
Figure 7-32 - Hold Gear & Shaft from Turning Tighten Five Gear to Hub "Nylok" Screws
49
