-20° F to 0° F
Mixture of 2/3 SAE 10W
and1/3 Diesel Fuel
0° to 30° F SAE 10W
30° to 50° F SAE 20
50° to 110° F SAE 30
110° to 112° F SAE 50

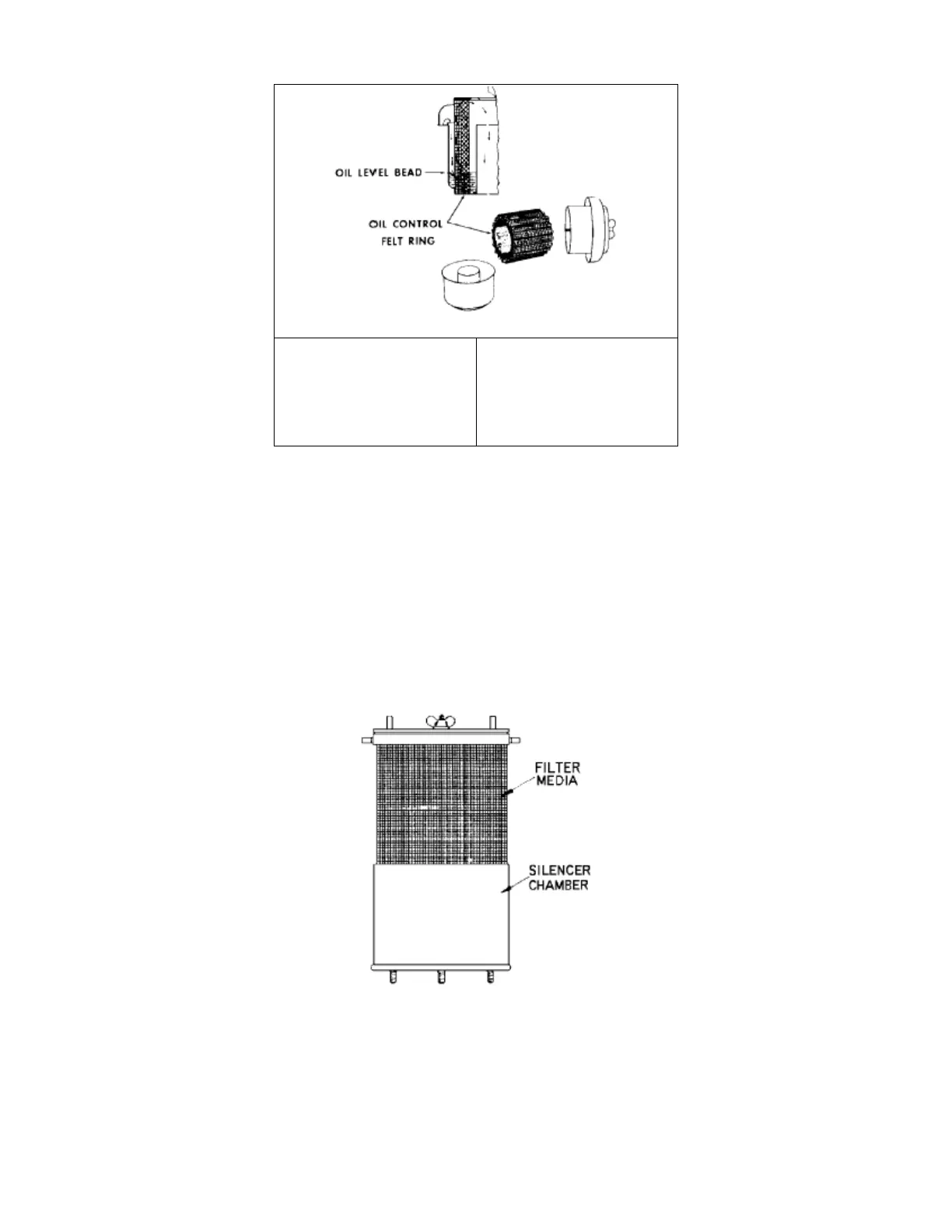

FIGURE 4-4 – OIL BATH FILTER
Oil Bath Filter (FIGURE 4-4) – The following instructions also apply when the filter is equipped with a
silencing chamber:
1. Remove cover, screen and bowl form the base.
2. Wash the screen and bowl.
3. Fill the bowl to oil level bead with oil listed.
4. Place the end of the screen bonded with felt down into the oil. Upside-down installation will
result in heavy oil carryover.
5. Replace the cover and tighten wing nut securely.
6. Make sure all connections to the air filter are tight.
FIGURE 4-5 – OIL WETTED FILTER-SILENCER
Oil Wetted Filter-Silencer (FIGURE 4-5) – Cleaning of the filtering media is accomplished by thoroughly
washing in a commercial solvent and blowing dry with air. Blow from inside to outside to dislodge dirt
particles from the finer screen sections. After the media is cleaned, recharge by dipping in oil. The filter
silencer can be supplied with an all-weather hood. If an oil wetter filter without silencer is used, the
service instructions in the previous section will also apply.
