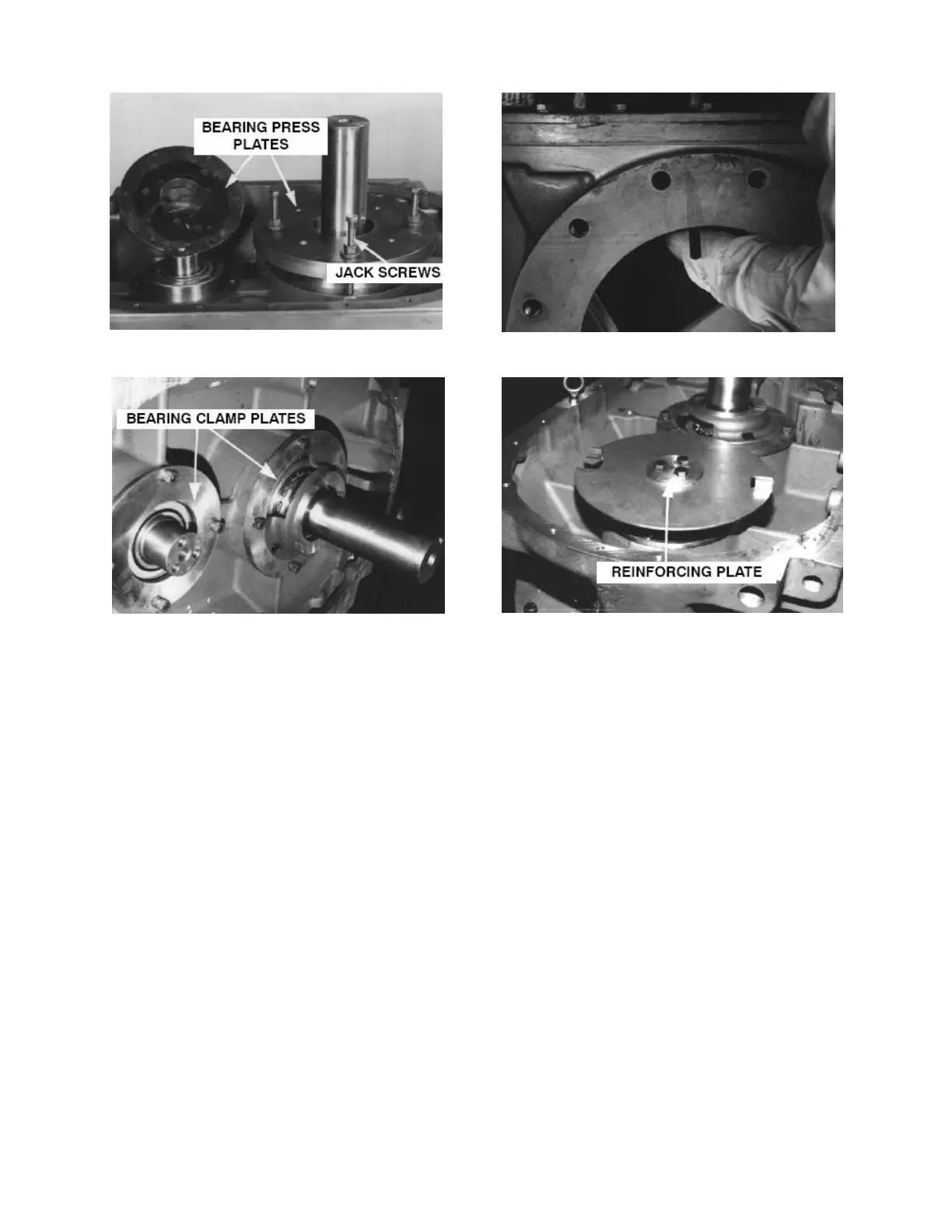

FIGURE 7-16
FIGURE 7-17
FIGURE 7-18
FIGURE 7-19
20. Bend the ear of the lockwasher (35, 36) into the slot of the nuts (33, 34) on the shaft extension.
Oil the bearings generously. Install the oil slinger (6) with three (3) “Nylok” type screws (61).
Tighten screws to 118 – 140 ft.-lb. The oil slinger is mounted on the shaft with the reinforcing
plate up, FIGURE 7-19.
21. Check the shaft extension and keyway for burrs. Cover the shaft and keyway with the thin
protective installation sleeve. Push the oil seal (26) into the seal adaptor (25). Install the seal
adaptor gasket (58), seal and adaptor to the end cover (14) using four screws (46) and two
dowels (43). Slide the end cover assembly and gasket (24) over the shaft extension
(FIGURE 7-20) and mount the cover to the bearing carrier with screws (52) and washers (54).
Tighten end cover screws to 38-41 ft-lb in a star pattern at least two passes. Remove the
protective installation sleeve. Drive dowels (44) into end cover/bearing carrier holes. Install
drive key (42).
