37-1-615 Page 21

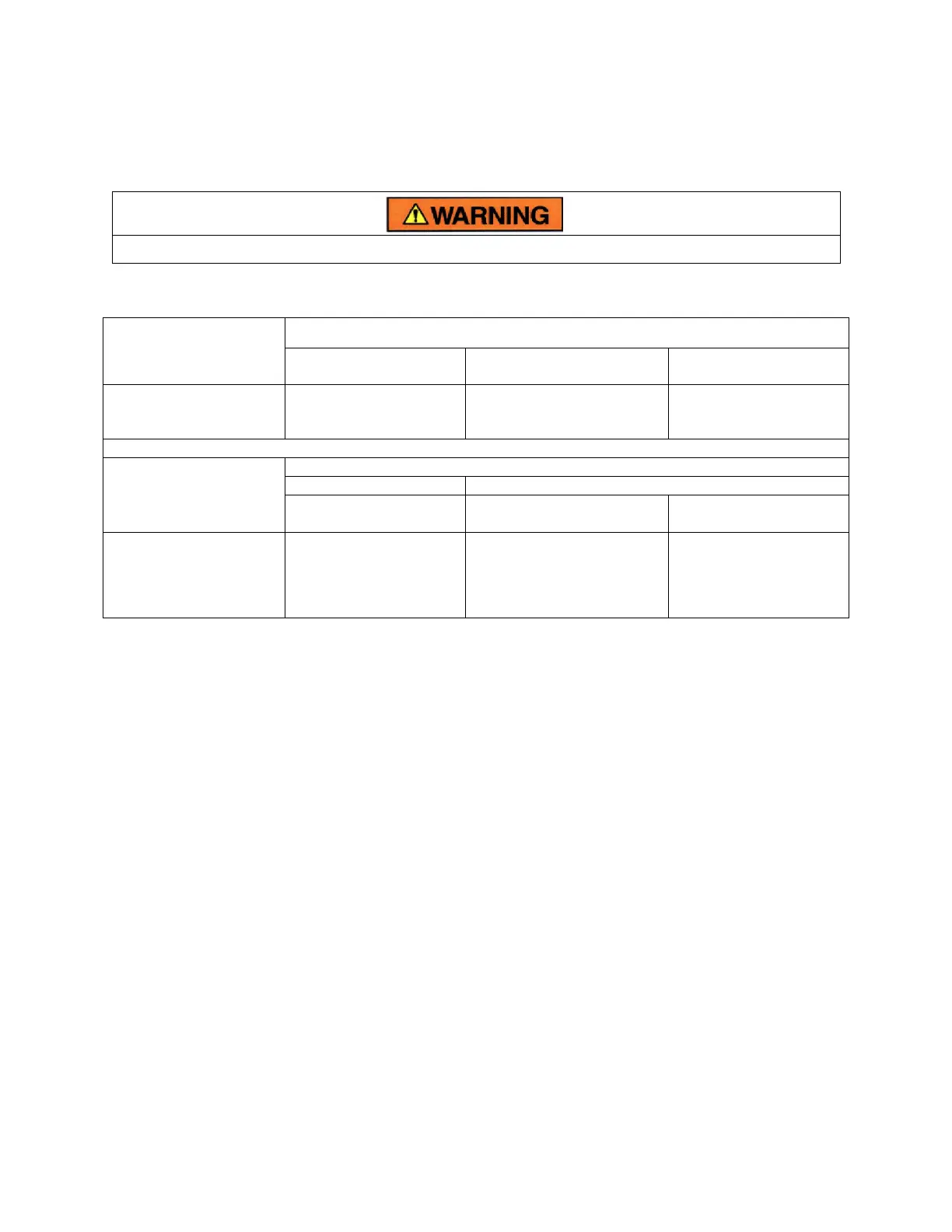

EMERGENCIES – In event of system failures, shutdown the blower immediately. Inspect the blower for

foreign material backflow. If materials are found inside the blower housing, a thorough cleaning is

necessary before restarting.

Do not operate a blower which is noisy, vibrating, or heating excessively.

Models

Minimum Speed (RPM) – Dry Pressure

Up to

15 PSIG

18 PSIG 20 PSIG

9CDL13 1050 1280 1540

9CDL18 1050 1050 1230

9CDL23 1050 1050 1300

Models

Minimum Speed (RPM)

Dry Vacuum

Wet Vacuum

Up to

17” Hg.

Up to

22” Hg.

24” Hg.

9CDL13 1185 1050 1050

9CDL18 1055 1050 1050

9CDL23 1050 1050 1050

FIGURE 3-6 – MINIMUM SPEED, MAXIMUM PRESSURE OR VACUUM
